Description

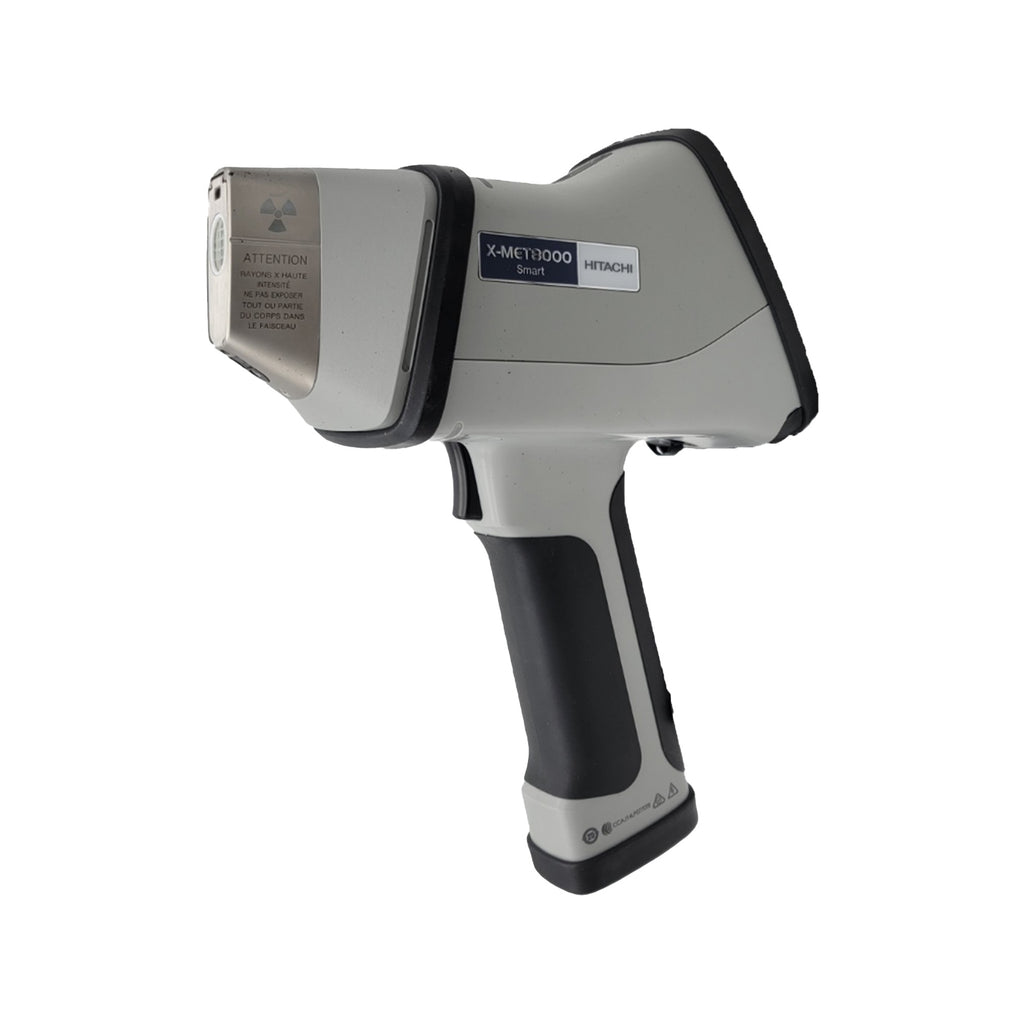

Save money with a Used Hitachi X‑MET8000 Handheld XRF Analyzer
Fast, accurate, lab-grade elemental analysis—anywhere. Rugged, intuitive, and versatile, the X‑MET8000 supports multiple models and modes designed to solve your specific testing challenges across industries. All of this, packaged in a pre-owned, cost-effective solution for your business!
Available Models
| Model | X-ray Tube | Filters | Elements | Detector |
|---|---|---|---|---|
| X‑MET8000 Smart | 40 kV | Single | K–U | Large-area SDD |
| X‑MET8000 Optimum | 40/50 kV | 6-position wheel | Mg–U | Large-area SDD |
| X‑MET8000 Expert | 50 kV | 6-position wheel | Mg–U | Large-area SDD |
- Weight: ~1.5 kg (battery included)
- Battery Life: 8+ hr (2 new batteries included)
- Display: 4.3″ touchscreen (480x800)
- Ruggedness: IP54, MIL‑STD‑810G drop rated
- Storage: Up to 100,000 results (spectra + optional images)
Available Analysis Modes
Modes available for pre-owned analyzers are limited. Please contact us to see which modes are available in our pre-owned analyzers.
Alloy (Smart/Optimum/Expert)
- Purpose: Automatic alloy grade ID and chemistry in seconds
- Used in: PMI, scrap recycling, manufacturing QA/QC, precious metals
- Benefits: Empirical + fundamental calibration ensures high accuracy
Alloy LE (Optimum/Expert)
- Purpose: Detects light elements (Mg, Al, Si, P, S) in alloys
- Used in: Aluminum bronzes, specialty steels, lightweight alloys
RoHS / Expert CG (Compliance Grade)
- Purpose: Screen electronics, polymers, consumer goods for hazardous substances
- Used in: CPSIA - Consumer Product Safety Improvement Act - of 2008, Packaging directive, WEEE – Waste of Electrical and Electronic Equipment, CA Prop 65, etc.
- Features: Integrated camera + small-spot collimator for pinpoint analysis
Mining / Geo (Optimum Geo / Expert Geo)
- Purpose: Soil, ore, environmental screening
- Used in: Mining exploration, grade control, soil contamination surveys
- Features: BOOST™ boosts sensitivity ×10; optional GPS; HERO™ hot-sample window
Coating Thickness
- Purpose: Non-destructive measurement of metal plating thickness
- Used in: Manufacturing, QA, decorative/coated parts
Archaeometry
- Purpose: Non-invasive elemental analysis in cultural heritage
- Used in: Art preservation, pigment and alloy analysis
- Features: Small-spot capability and camera aids precise measurement
Precious Metals & Jewelry
- Purpose: Verify gold, silver, platinum content and purity
- Used in: Jewelry testing, coin appraisal
- Benefits: Fast, non-destructive screening of trace and precious elements
Bunker Fuel Oil (Sulfur Testing)
- Purpose: In-situ sulfur determination in fuel oils
- Used in: Environmental compliance (ASTM D4294, ISO8754)
- Features: Rugged, GPS, and onboard reporting
Why Choose the X‑MET8000?
- Precision & Speed: Results in seconds with excellent repeatability; standard 15s test or rapid 5s assays
- Tough Build: IP54 and military-grade tested ensure reliability outdoors
- Smart Calibration: Auto-select blends empirical & FP methods; LE modes cover light elements
- Enhanced Ergonomics: Lightweight, balanced, and easy to hold for extended use
- Data Management: Wi-Fi, Bluetooth, GPS, USB, cloud sync via ExTOPE Connect
Standard Accessories
- Li-ion batteries (x2 new batteries with every purchase)
- Battery Charger
- AC Power Adapter for unlimited power!
- USB cable + memory stick with manuals
Ready to Customize?
Select the Smart, Optimum, or Expert model that aligns with your material and industry needs. Choose the mode suite that targets your applications—from alloys and compliance to mining, fuel, coatings, heritage, and precious metals.
Documents
Application Specific Brochures
- Scrap Metal / Recycling with the Hitachi X-MET8000
- PMI Inspection with the Hitachi X-MET8000
- Precious Metals Analysis with the Hitachi X-MET8000
- QAQC with the Hitachi X-MET8000
- Regulatory Compliance with the Hitachi X-MET8000
- Archaeology with the Hitachi X-MET8000
- Mining / Soil / Geochemistry with the Hitachi X-MET8000
To Request a Quote
- Request a Quote Online
- Call us at 919-400-1216
- Email us at sales@alloygeek.com
