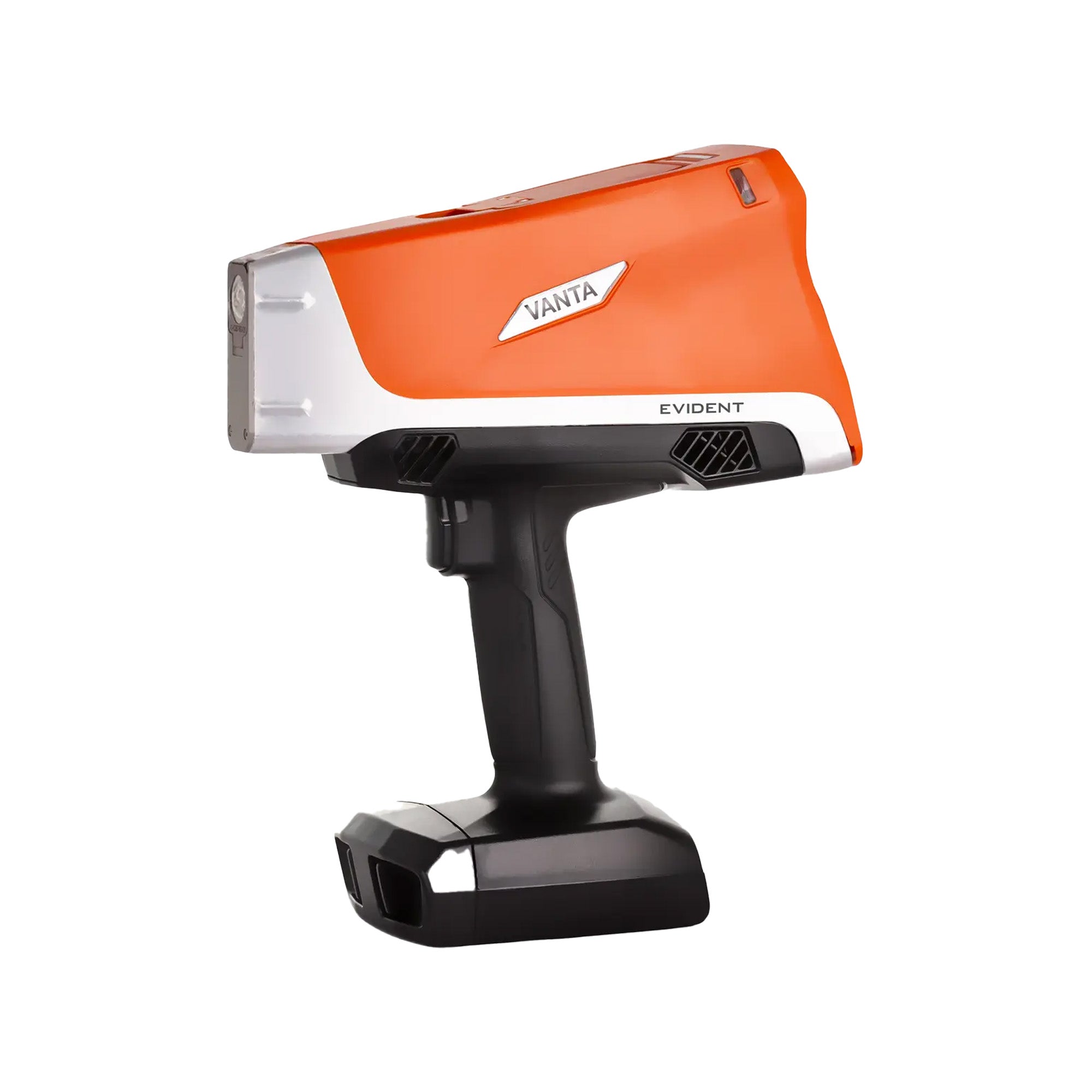

Evident Vanta Element Handheld XRF Analyzer

Affordable XRF for Fast Alloy ID. Rugged, Reliable, and Ready to Work.

The Evident Vanta Element handheld XRF analyzer delivers fast and accurate elemental analysis for metal identification at an unmatched value. Designed for scrap sorting, quality control, and alloy verification, the Vanta Element provides trusted performance using a powerful 2-watt X-ray tube, Silicon Drift Detector (SDD), and Evident's proprietary Axon™ Technology—all at a lower cost of ownership.

With a smartphone-inspired interface, built-in grade library, and USB/export tools, the Vanta Element makes it easier than ever to get reliable results in the field or on the shop floor.

Technical Specifications

Feature	Specification
X-ray Tube	2-watt, 35 kV tungsten anode
Detector	Silicon Drift Detector (SDD)
Elements Detected	From Titanium (Ti) to Uranium (U)
Window Material	Thick Kapton® window
IP Rating	IP54 (dust and splash resistant)
Drop Resistance	MIL‑STD‑810G (4 ft / 1.2 m tested)
Operating Temperature	–10 °C to 45 °C (14 °F to 113 °F)
User Interface	Touchscreen, smartphone-style UI
Data Storage	1 GB microSD card, USB export
Wireless Options	Optional Wi-Fi for network folder transfer

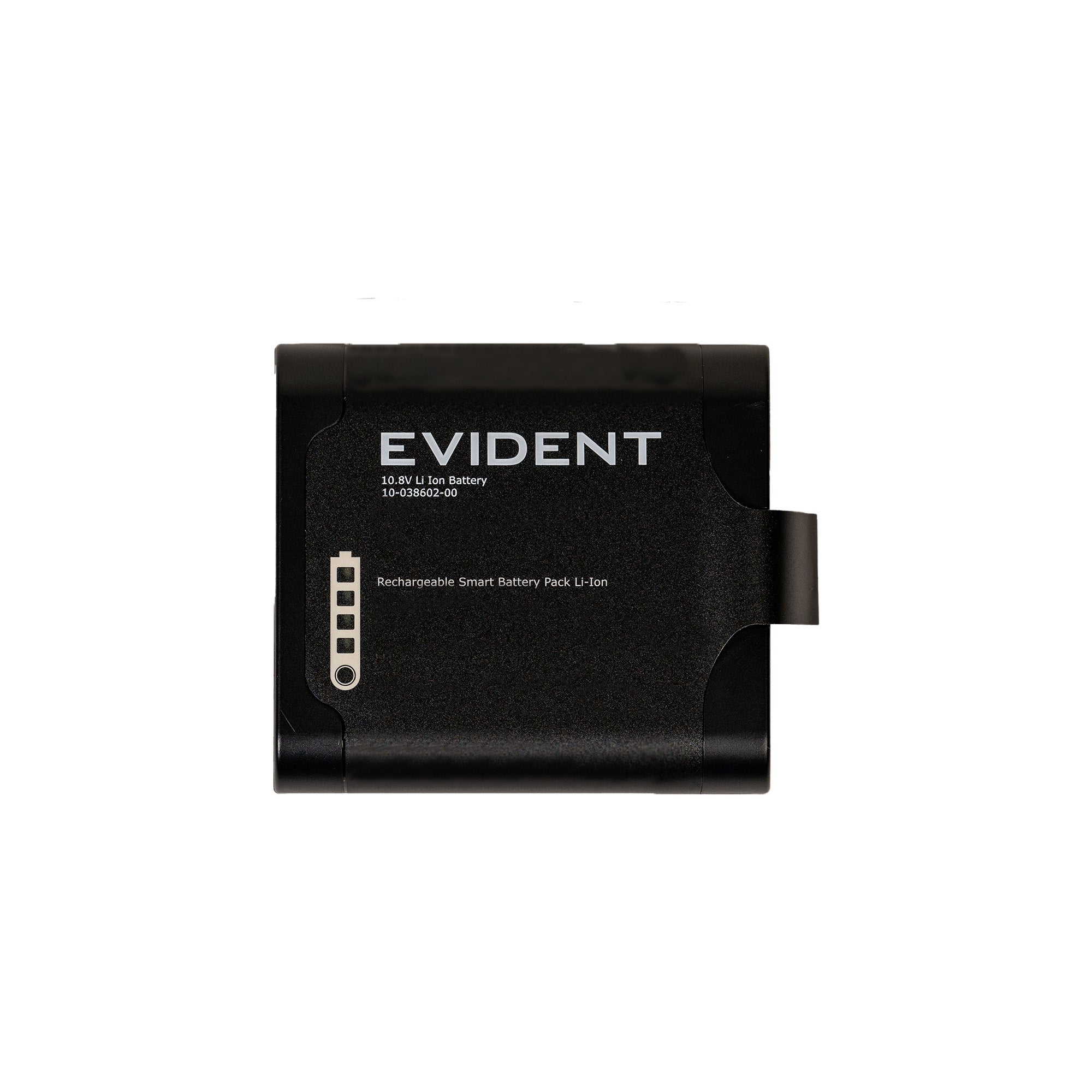

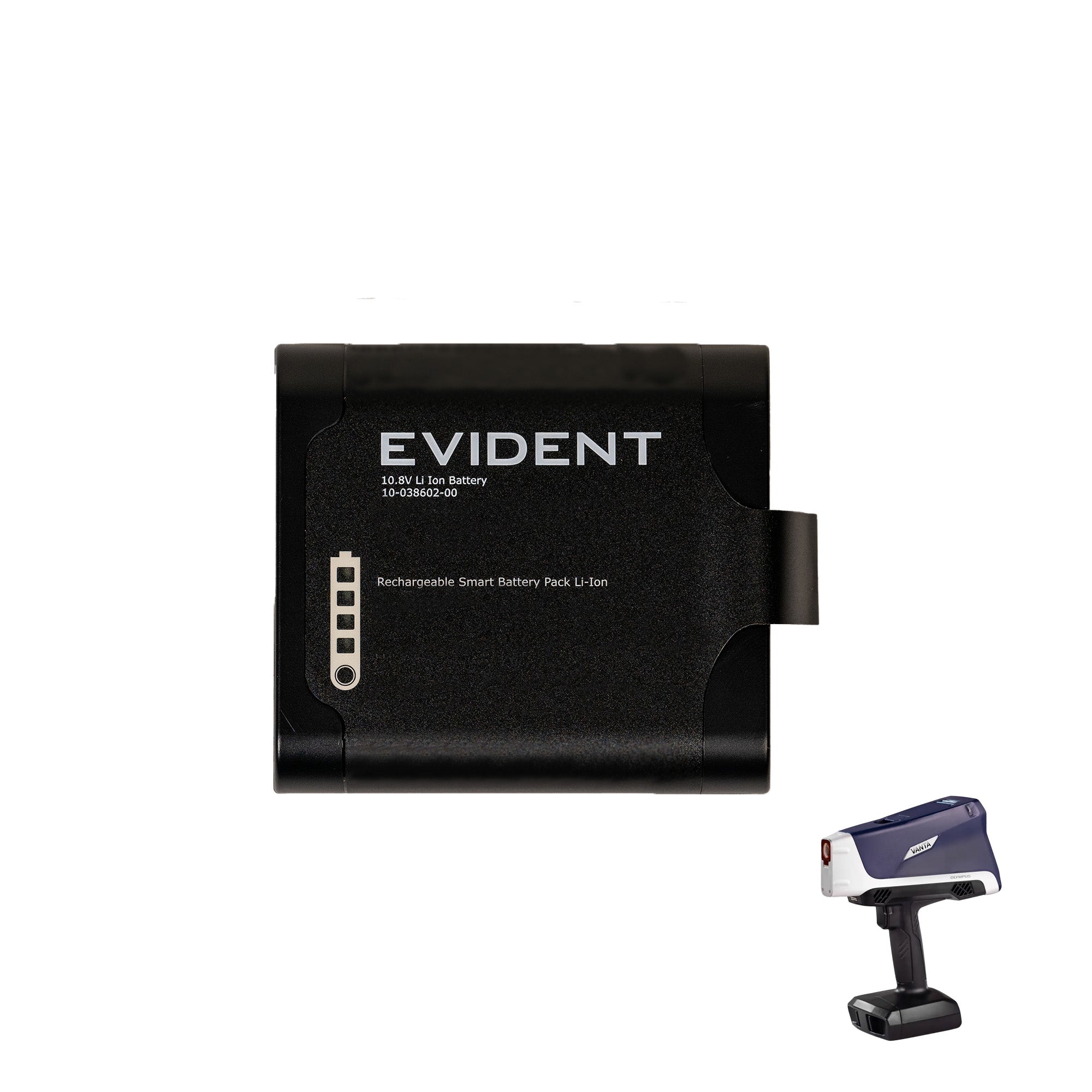

Battery	Rechargeable lithium-ion (hot-swappable)
Warranty	3 years standard coverage

Applications

Scrap Metal Sorting – Identify common alloys and verify grades on-the-spot
Metal Manufacturing – Confirm incoming and outgoing alloy chemistry
Welding & Fabrication QA – Ensure proper filler materials and base metal matching
Precious Metal Verification – Analyze Au, Ag, Pt, and Pd content in seconds
Field Inspections – Lightweight, durable performance for mobile inspections

Alloy Families Detected

Low-Alloy Steels – Fe, Mn, Cu
Stainless Steels – Fe, Cr, Ni, Mo
Nickel Alloys – Ni, Co, Fe
Copper Alloys – Cu, Zn, Sn
Aluminum Alloys – Al series (without light elements)
Precious Metals – Gold (Au), Silver (Ag), Platinum (Pt), Palladium (Pd)

For magnesium (Mg), aluminum (Al), silicon (Si), sulfur (S), and phosphorus (P) detection, see the Vanta Element-S model.

Included with Every Vanta Element

Vanta Element handheld XRF analyzer

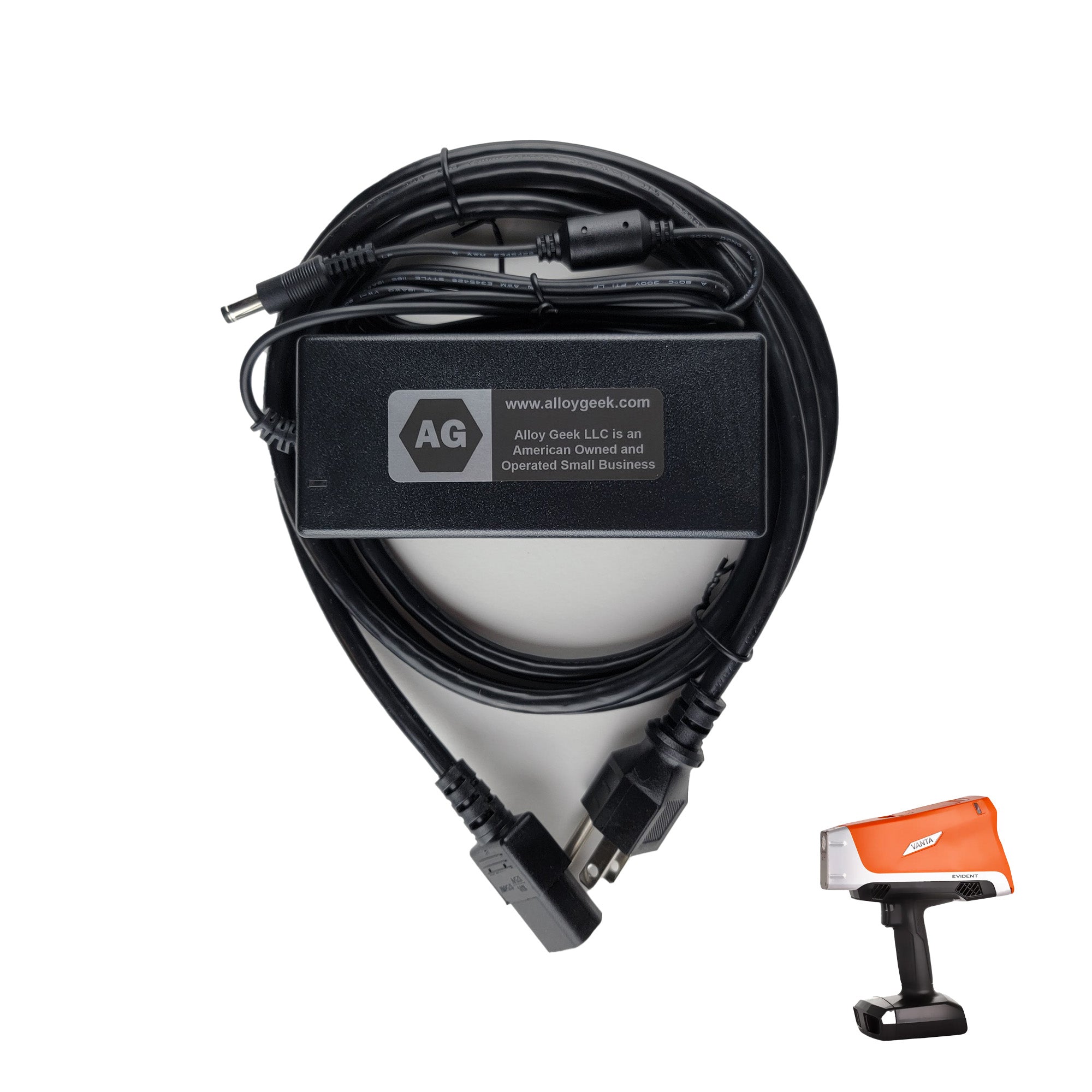

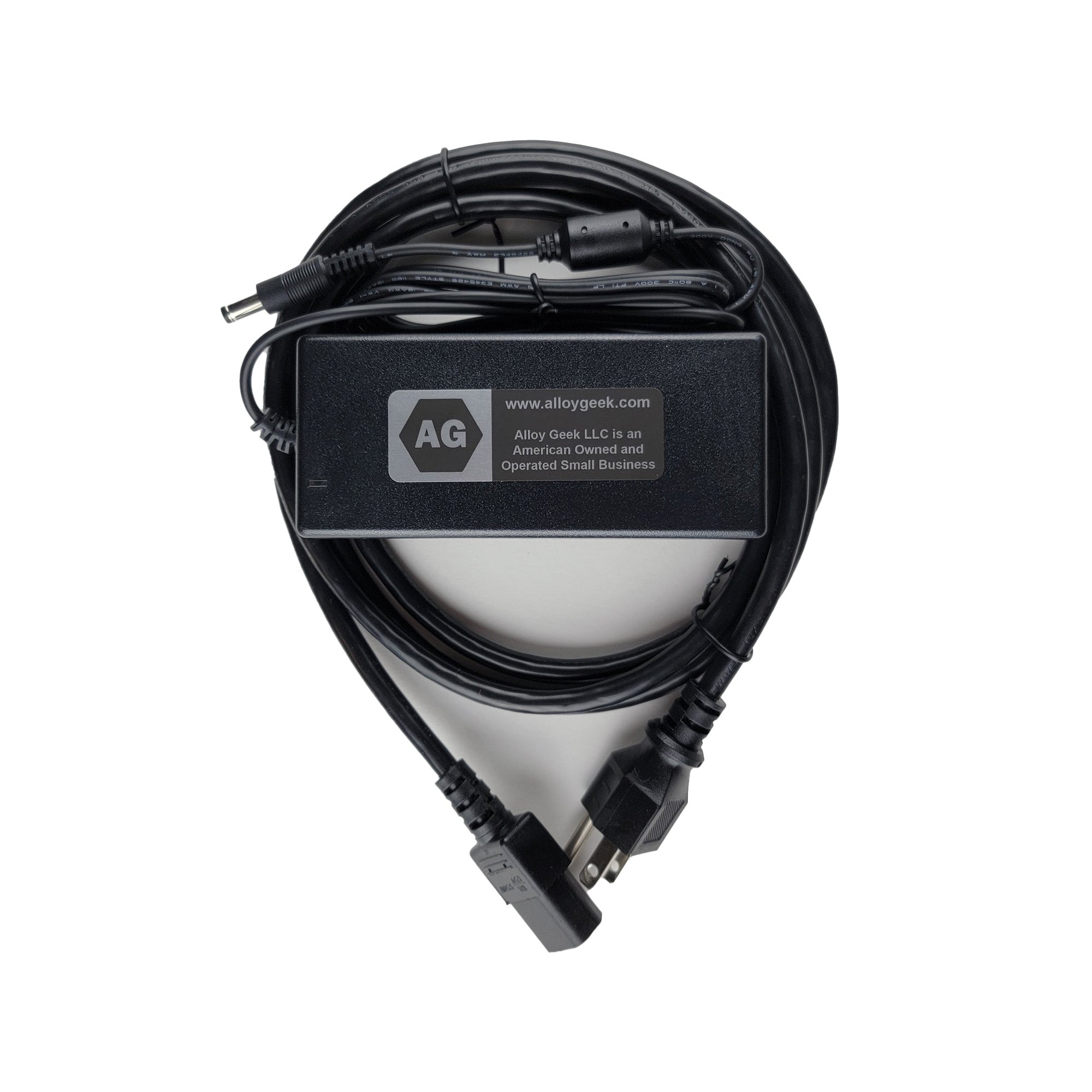

Rechargeable battery & AC power supply
USB flash drive with software & manuals
microSD card for data storage

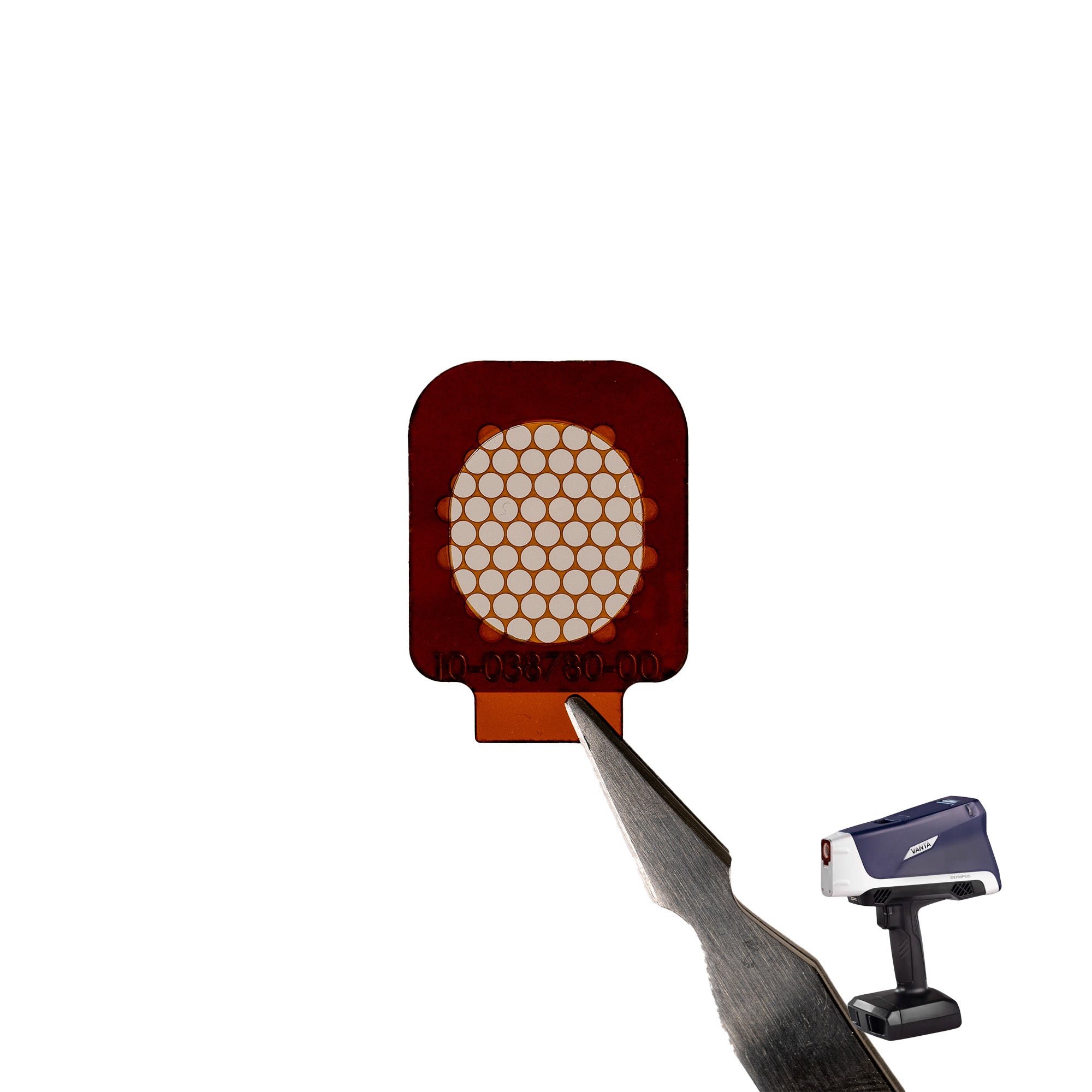

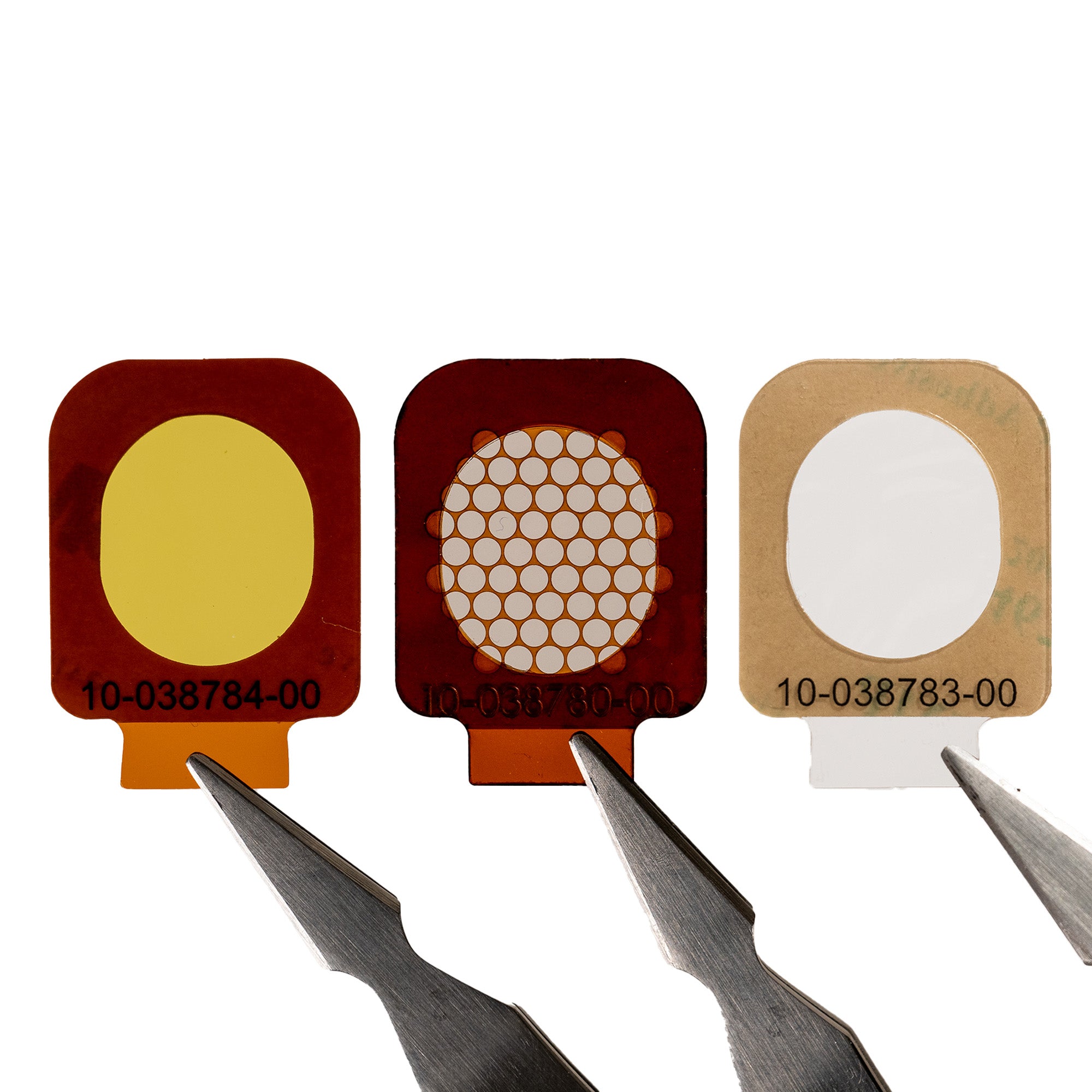

10 XRF window replacements

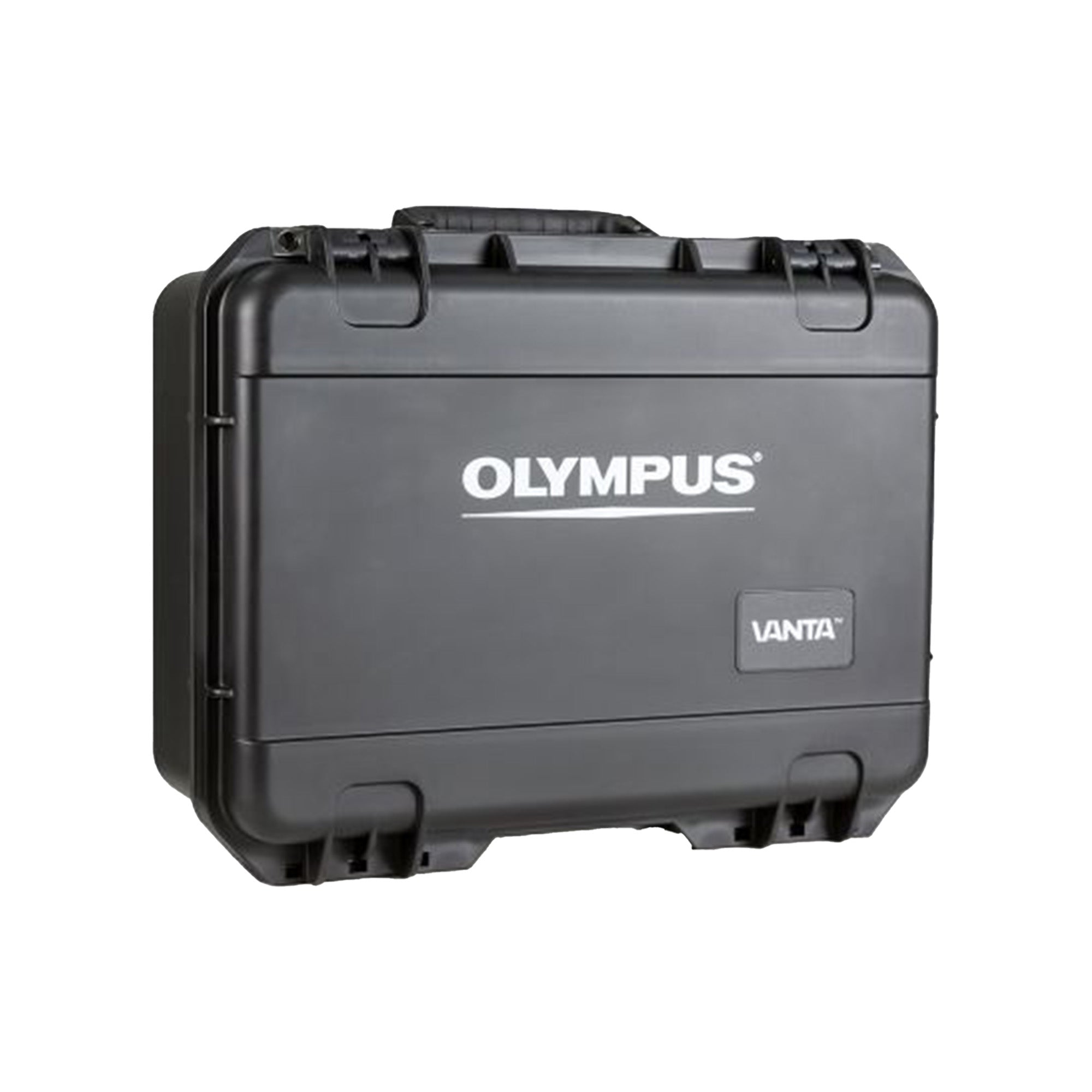

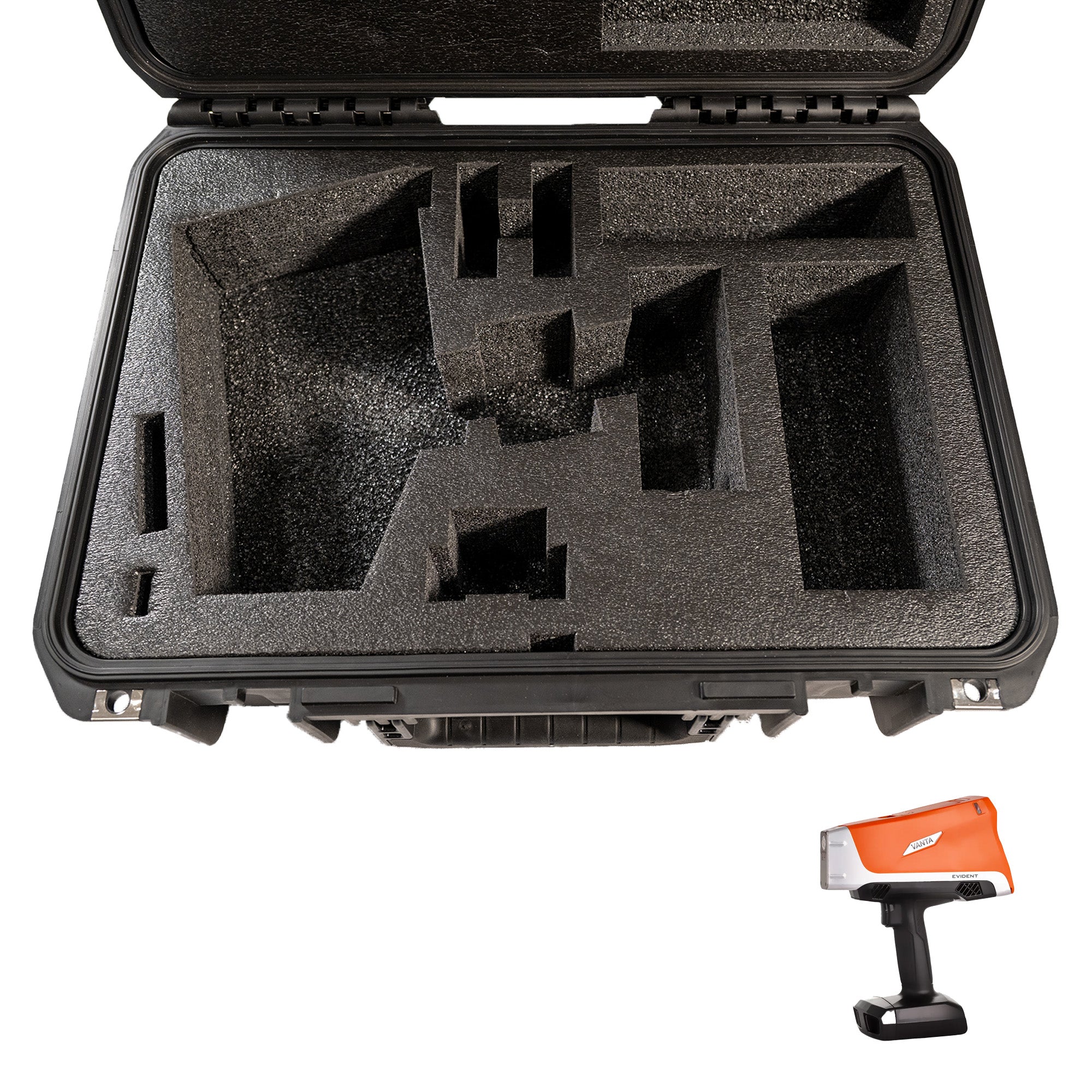

Transport case with foam insert

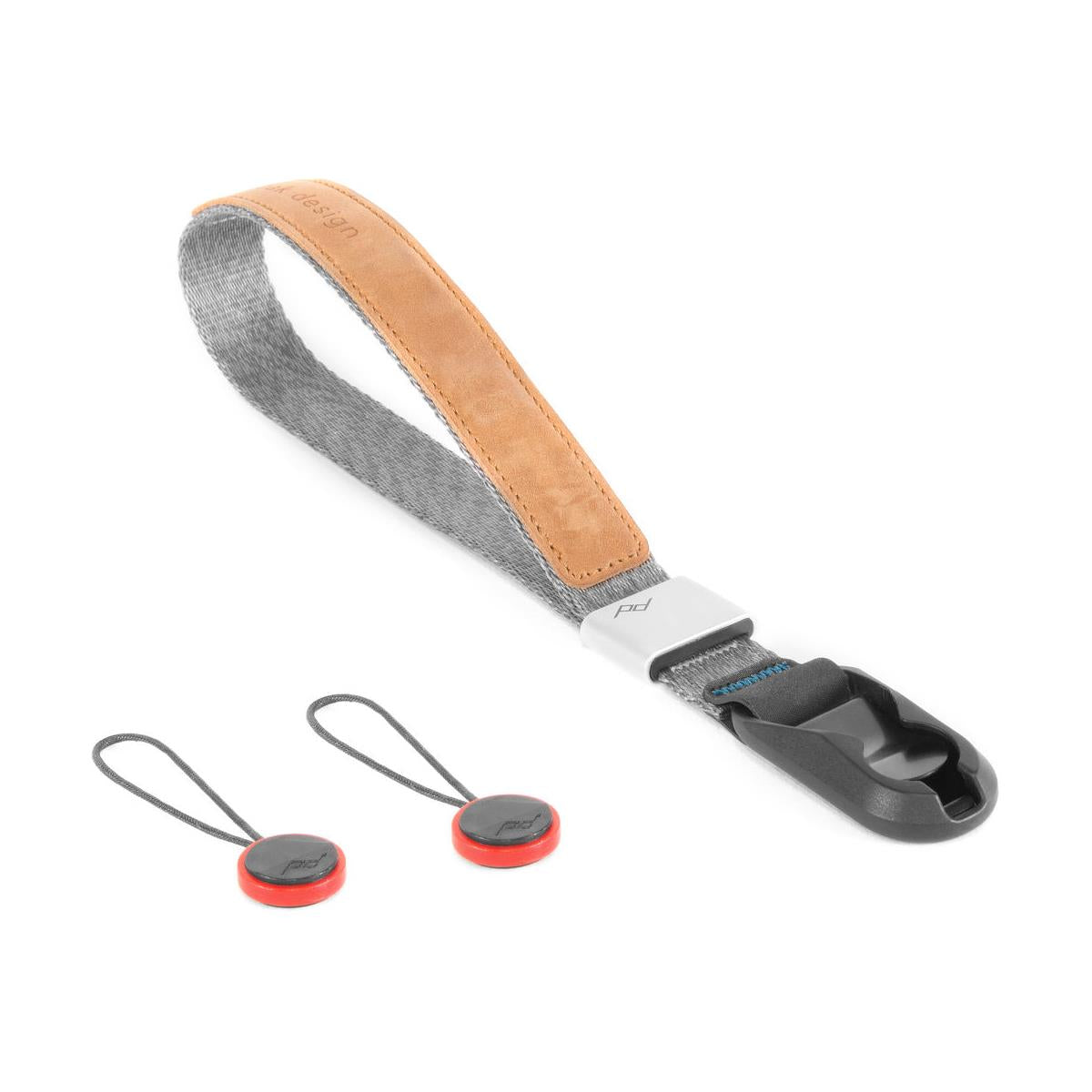

Wrist strap

Optional Accessories

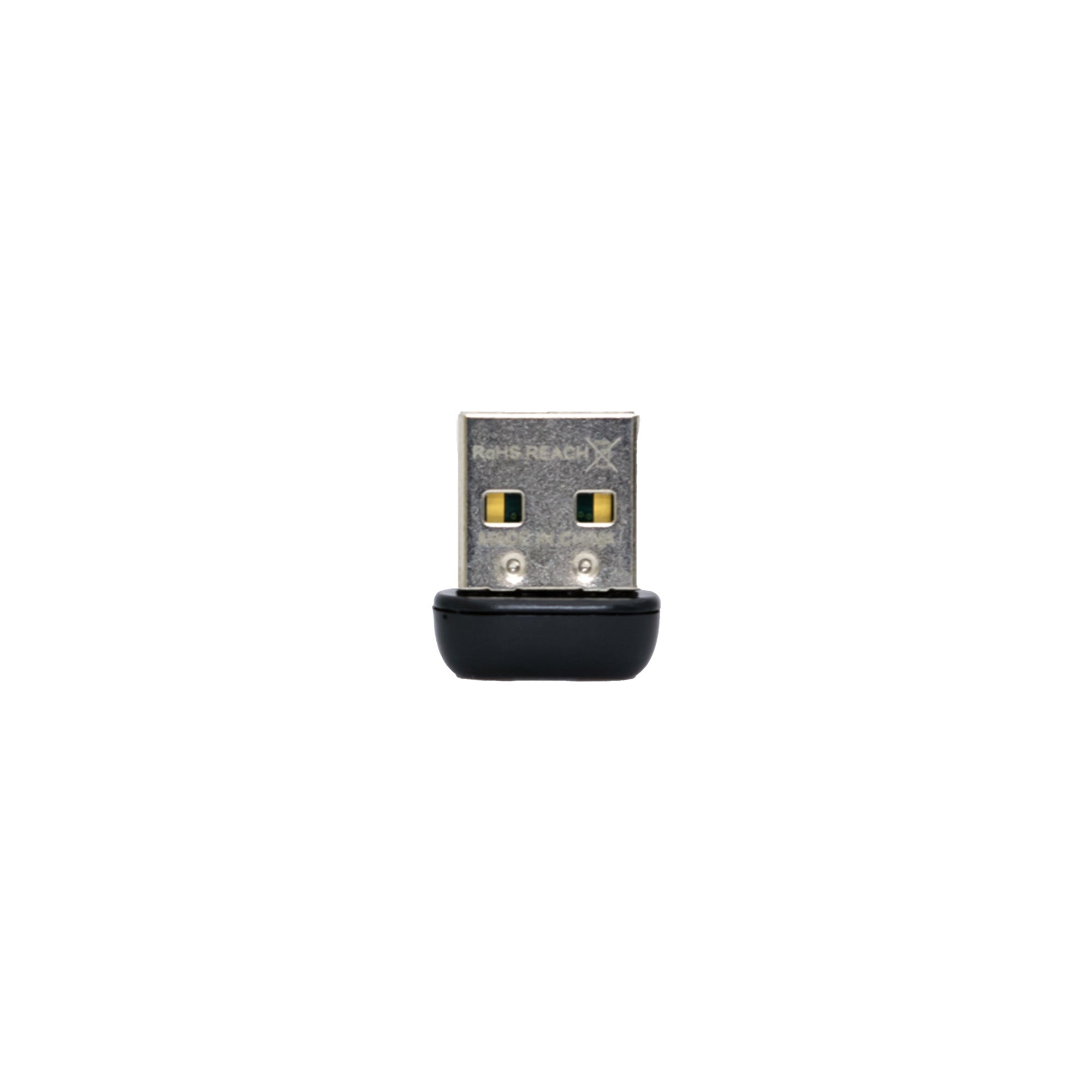

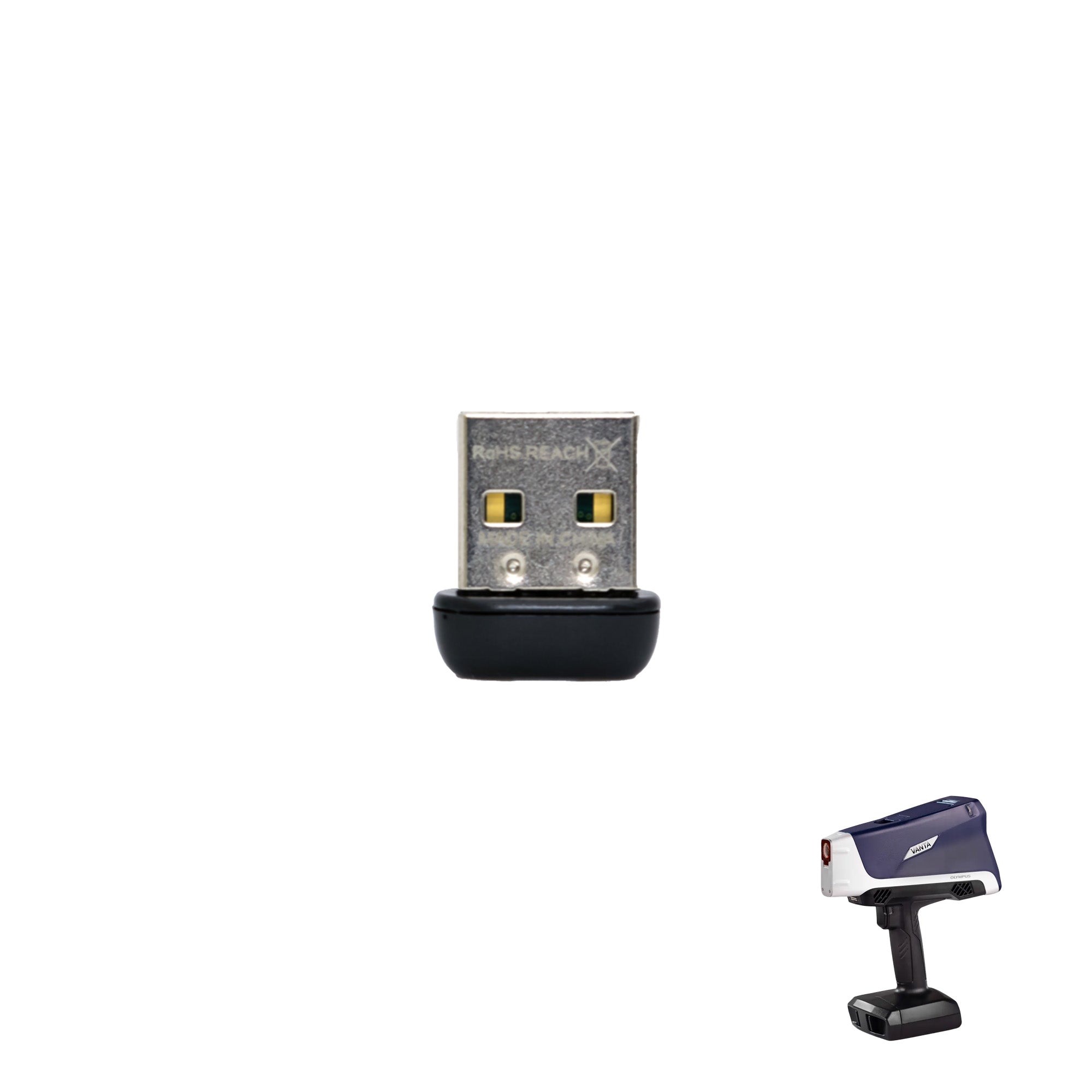

Wireless connectivity (USB Wi-Fi dongle)

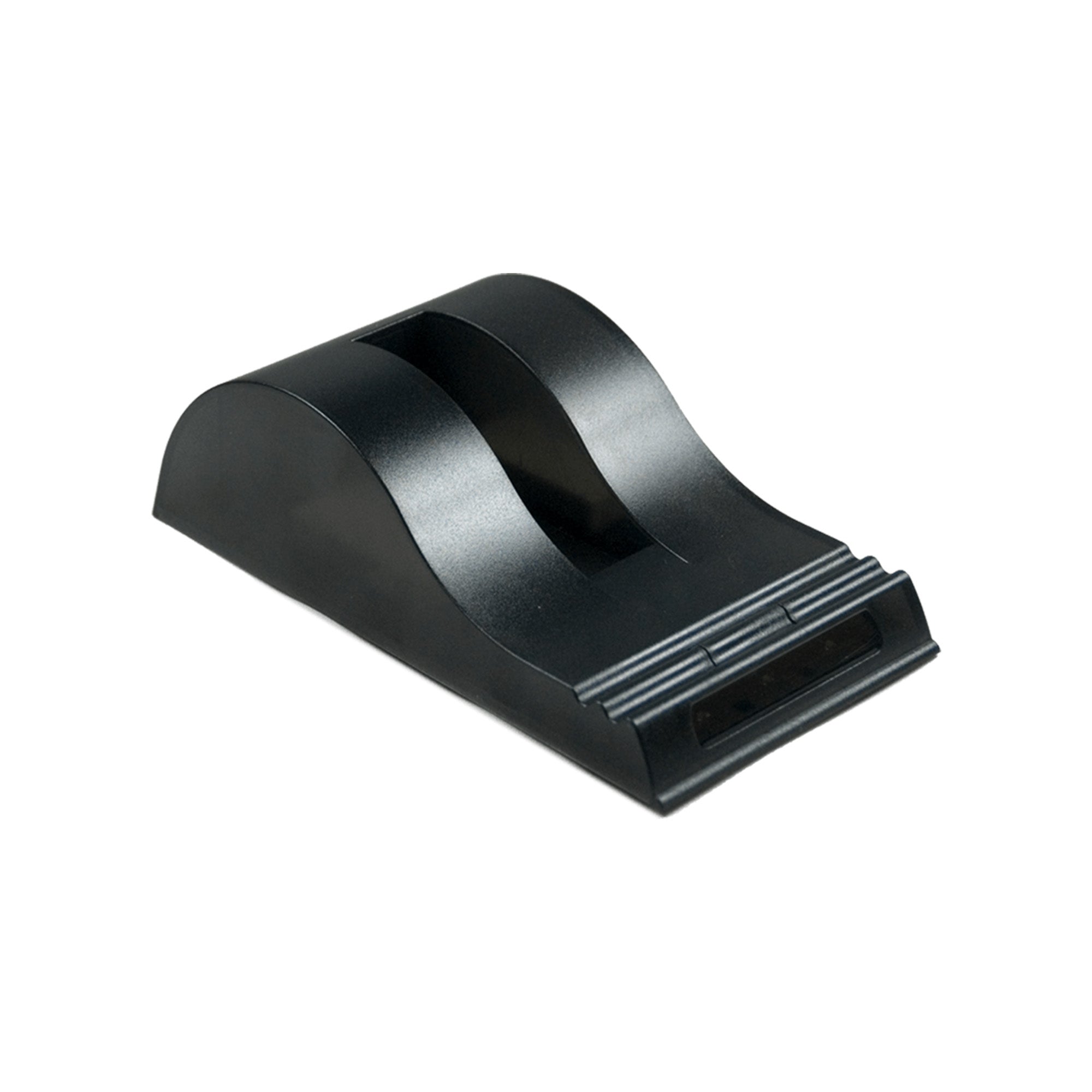

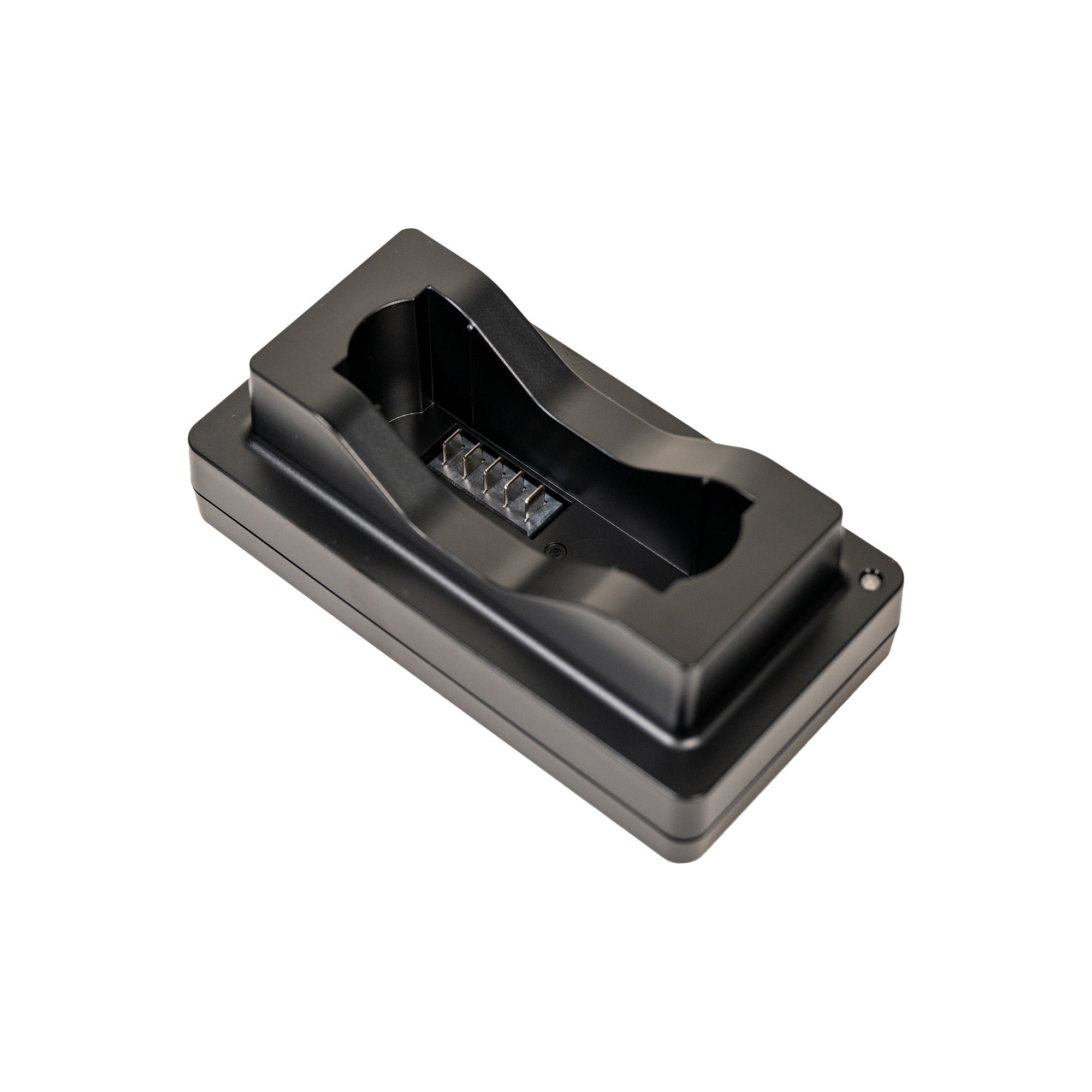

Additional battery & charger kit
Benchtop workstation for hands-free operation
Soil foot / field stand for environmental testing
Holster and protective shields

Smart Data Handling

Export results directly to a USB flash drive
Store thousands of tests on the microSD card
Optional wireless sync to network folders
Compatible with Evident Connect Cloud for seamless sharing
Automatic software updates for future feature access

Why Choose the Evident Vanta Element?

If you need essential alloy chemistry without the complexity or cost, the Vanta Element is your go-to handheld XRF. It delivers fast ID, simple operation, and rugged durability—all backed by Evident’s global service and warranty.
