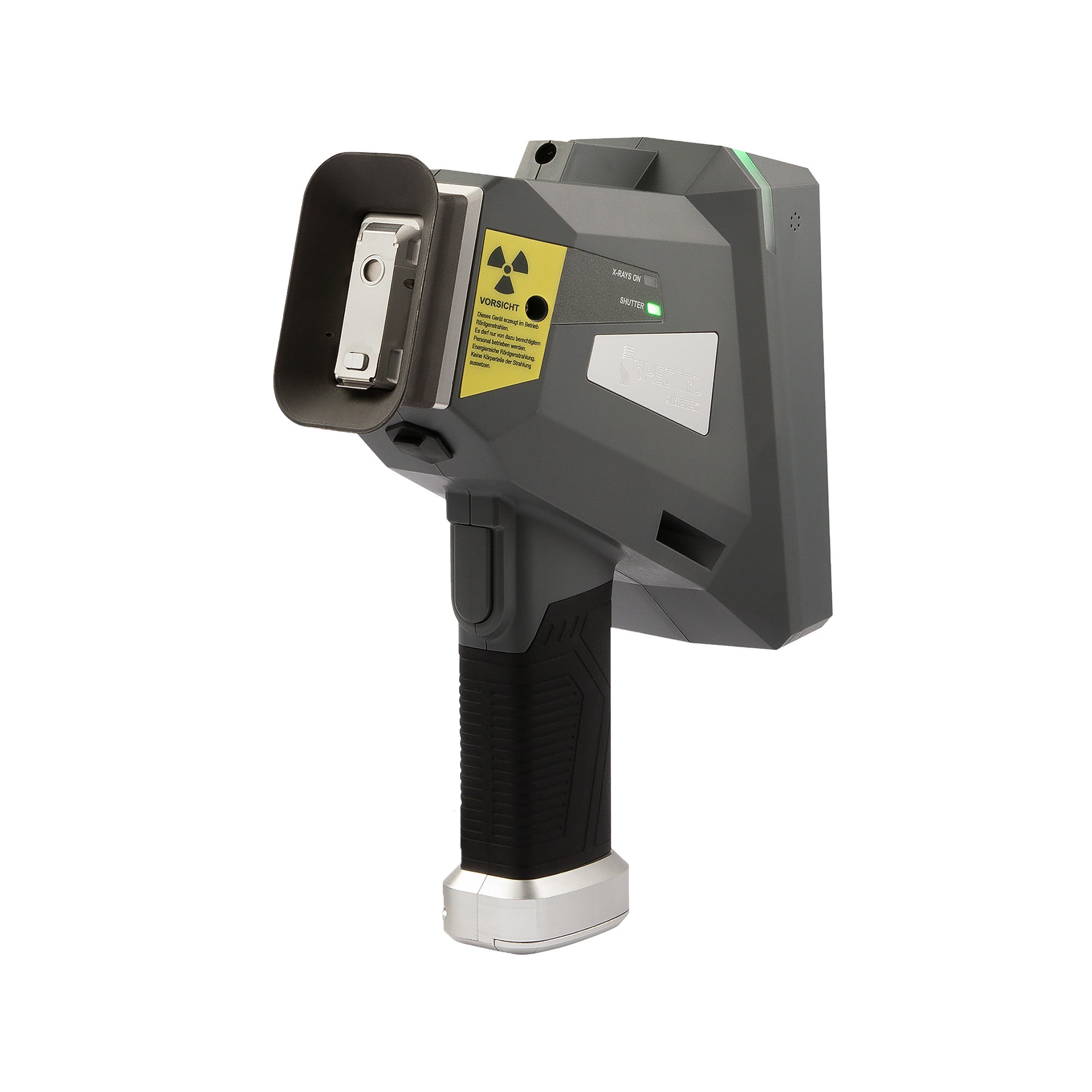

The Spectro xSORT XHH04 is a next-generation handheld ED-XRF spectrometer engineered for on-the-spot metal analysis. It delivers fast, accurate, and reliable elemental testing of metals and alloys in diverse environments — from scrapyards and foundries to manufacturing QA/QC and PMI inspections.
With high-speed measurement (as little as 2 seconds for most alloys), rugged field-proven design, and industry-leading iCAL calibration logic, the xSORT XHH04 is trusted worldwide for positive material identification (PMI), scrap sorting, and compliance testing.
Features
Ultra-Fast Analysis:
2 seconds for most alloys.
7 seconds for alloys containing light elements (Al, Mg, Si, P, S).
Hundreds of inspections per shift – maximizing productivity.
Ergonomic & Portable:
Lightweight (1.35 kg / 2.97 lb, 1.6 kg / 3.52 lb with battery).
Optimized for fatigue-free, one-handed use with a light-squeeze trigger.
5-inch high-definition, wide-angle display with glove-friendly controls.
Flexible Testing:
Dual spot sizes (3 mm and 5 mm) for maximum coverage.
High-resolution SDD or entry-level Si-PIN detector options.
Factory methods cover 46 elements in 16 metal matrices.
Connectivity & Data Handling:
WiFi, Bluetooth, USB-C, microSD storage.
Onboard GPS for location-tagged results.
Optional cameras for barcode scanning and sample spot imaging.
Rugged & Reliable:
Quick-change batteries: up to 300 readings/hour.
Shutter-protected detector with iCAL calibration for consistent accuracy.
Built for field conditions – scrapyards, job sites, or plant floors.
Applications
The Spectro xSORT XHH04 handheld XRF analyzer is designed for metals analysis across industries:
Scrap Metal Sorting
Instantly separate and identify metals in recycling operations. Grade verification improves scrap value and prevents costly mix-ups.
Positive Material Identification (PMI)
Essential for petrochemical, aerospace, power generation, and manufacturing facilities. Quickly confirm incoming materials and verify alloy integrity in pipelines, valves, and critical components.
Quality Control & Assurance (QA/QC)
Analyze incoming raw materials, semi-finished goods, and finished products to ensure compliance with specifications and certifications.
Foundry & Smelting Operations
Perform fast checks on melts, alloys, and finished castings without slowing production lines.
Fabrication & Welding
Validate filler materials and ensure weld integrity by confirming proper alloy composition.
Mining & Exploration
With proper calibration, extend analysis to ores, concentrates, and exploration samples in the field.
Models
xSORT Alloy (Si-PIN detector)
Entry-level model.
Rapid grade identification where light-element analysis isn’t required.
Ideal for incoming inspection and scrap sorting.
xSORT XHH04 with SDD Detector (Premium Model)
High-sensitivity silicon drift detector (SDD).
Handles light-element alloys (Al, Mg, Si, P, S).
Preferred for PMI, aerospace, and high-spec industries.
Accessories & Options
Docking Station & Sample Chamber – stationary testing for small parts.

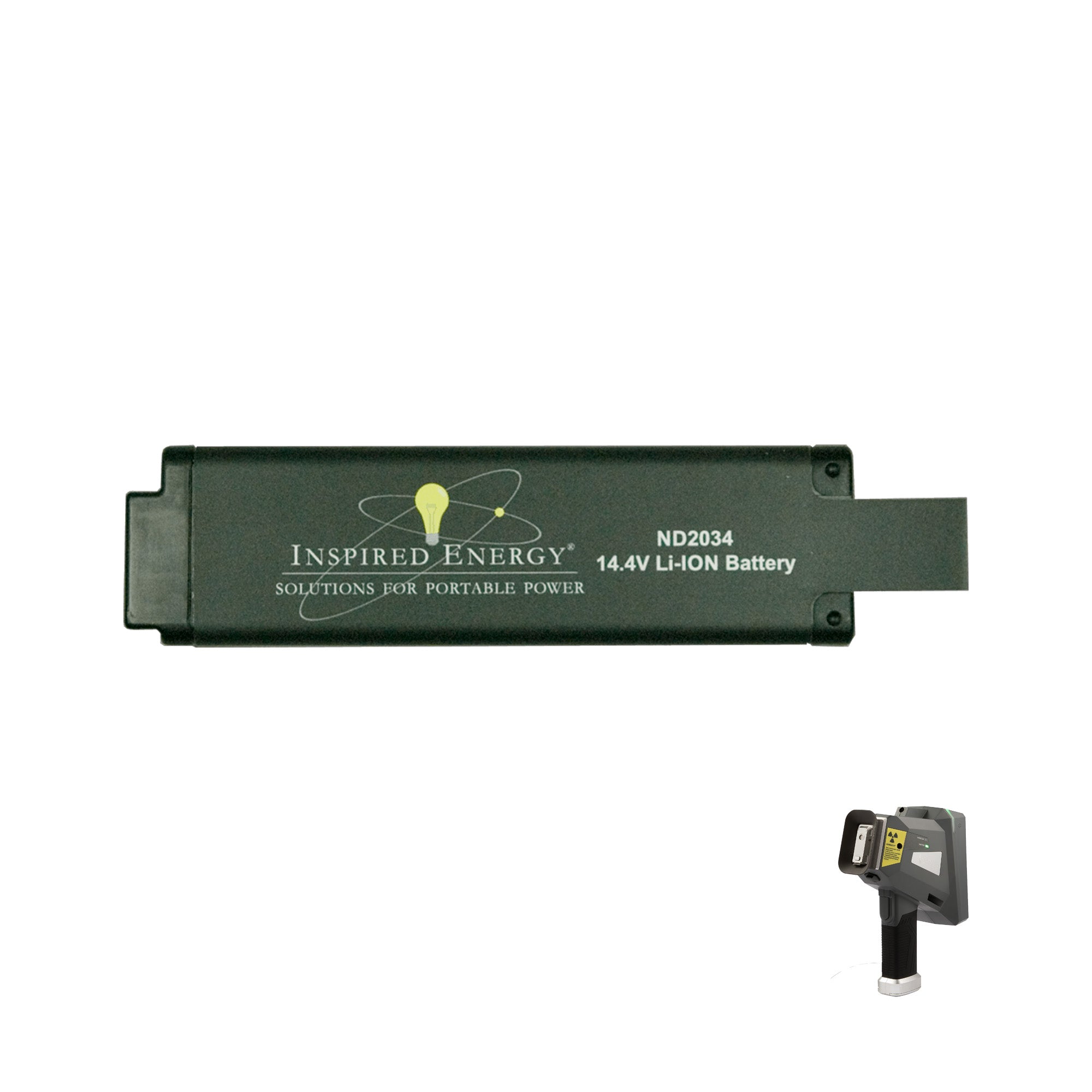

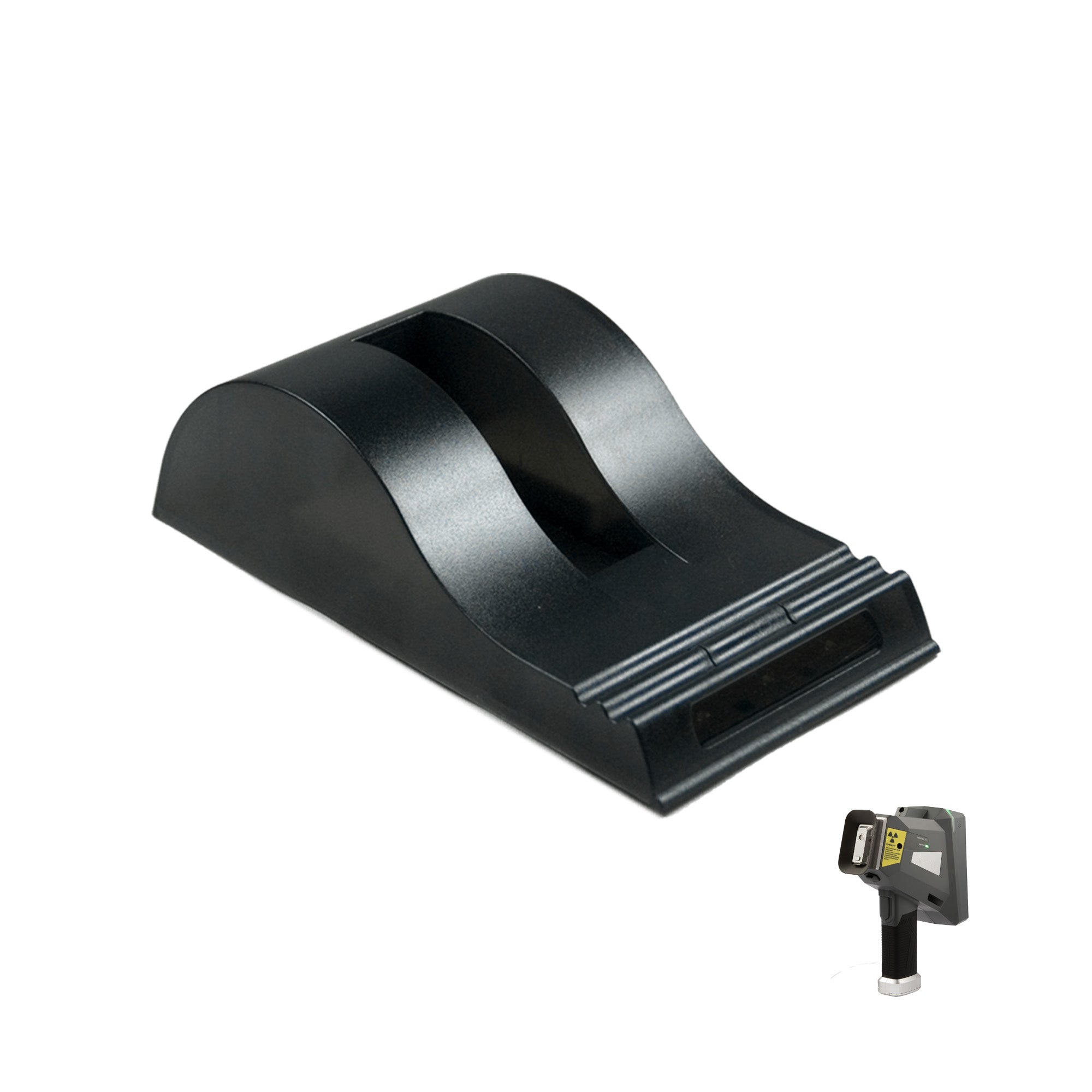

Extra Batteries & Chargers – extend operation in the field.
Protective Windows & Shields – reduce backscatter and safeguard internal components.
