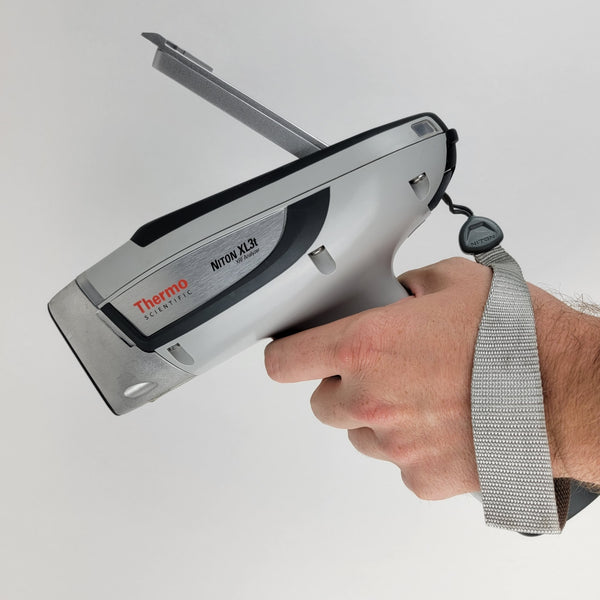

The Thermo Scientific Niton XL3t is a cutting-edge, tube-based handheld X-ray fluorescence (XRF) analyzer built for field-ready lab-grade performance—right in the palm of your hand. Featuring proprietary GOLDD+™ technology, a tilting color touch screen, and rugged ergonomics, it's the industry standard for fast, accurate, non‑destructive elemental testing

Feature	Description
GOLDD+ Technology	Delivers up to 10× faster detection and 3× better precision over conventional detectors
Light‑Element Analysis	Detects Mg, Al, Si, P, S—without helium or vacuum
Fast Throughput	High count rates yield swift results for high-volume testing
Ergonomic & Rugged	Lightweight (<1.3 kg), tilting touchscreen, customizable menus
Advanced Optics	Optional CCD camera and small‑spot collimation for pinpoint analysis
Data Management	Bluetooth/USB enabled; password protection; secure multi-user profiles

Application Modes

The XL3t offers specialized analysis modes tailored for specific industries:

General Metals: Identify and verify steel, aluminum, titanium, bronze, and more via automatic alloy matching.
Metal Coatings: Measure substrate/coating thickness (e.g., plating, galvanizing) to microns
Soils & Minerals: On-site elemental mapping and soil contaminant screening without lab prep
Consumer Goods: Screen electronics, toys, and components for prohibited substances (RoHS, CPSIA, Prop 65)
Precious Metals: Precise content testing of gold, silver, platinum, and alloys.
Hot Surface/High‑Temp Testing: Analyze items up to 842 °F (450 °C) with thermal adapters

Real‑World Uses

Scrap & Recycled Metals: Fast alloy sorting and tramp element detection
Manufacturing QA/QC: Incoming/outgoing materials verification
Mining & Exploration: Trace detection and core mapping in-field
Environmental Testing: In-situ soil/sediment screening
Coating Inspection: Plating thickness and corrosion studies
Consumer Safety Compliance: Lead paint and restricted element screening

Why Alloy Geek?

Customize the analyzer to your workflow
Ongoing calibration, service, and training
Expert guidance on modes, applications, and upgrades
Ready-to-go: shipped configured with your libraries and accessories

Key Features:

Advanced X-Ray Source: The analyzer is equipped with a 2W X-ray tube featuring an Ag anode, operating between 6-45kV and 1-200µA. This dynamically adjustable current optimizes sensitivity for each analysis.
High-Performance Detector: Utilizes a Silicon Drift Detector (SDD) for enhanced light element detection (Mg, Al, Si, P, S). The Detector ProGuard protection minimizes the risk of damage when analyzing sharp objects.
Integrated Camera: An integrated CCD micro camera allows for precise positioning and documentation of measurement areas.
User-Friendly Interface: Features a fixed-angle, color, resistive touchscreen display complemented by directional keys, facilitating intuitive operation.
Data Management: Offers 64 MB of internal system memory and 128 MB of internal user storage, capable of storing approximately 10,000 readings with spectra. Data transfer options include USB, Bluetooth, and RS-232 serial communication.
Power Options: Operates on a 7.4V lithium-ion battery or a 12V DC, 3A, 36W power supply. The hot-swap battery functionality ensures uninterrupted operation during battery replacements.
Rugged Design: IP54 certified, the analyzer is sealed against moisture and dust, making it suitable for harsh industrial environments.

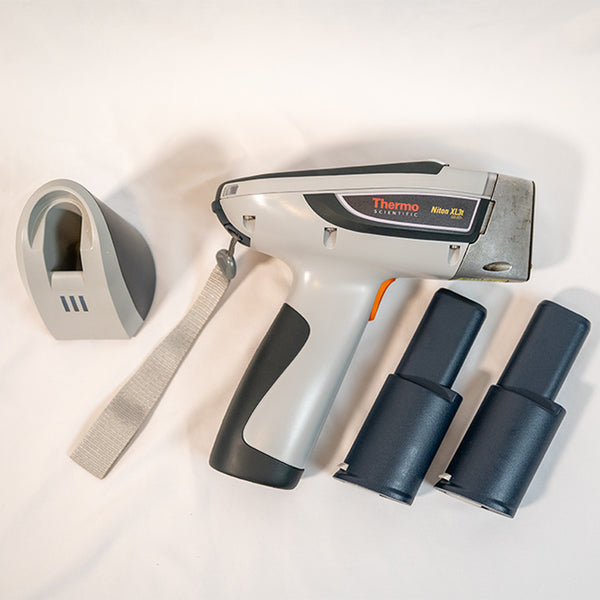

Standard Accessories:

Locking shielded carrying case
Two lithium-ion battery packs
110/220 VAC battery charger/AC adaptor
Check samples
- 1.25Cr 0.5Mo for heavy elements
- 6061 Aluminum for light elements
Belt holster
Safety lanyard
PC connection cables (USB and RS-232)

Optional Accessories:

Portable Test Stand: Provides a stable platform for hands-free operation, enhancing measurement precision.
Mobile Test Stand: Offers flexibility for on-the-go analysis, allowing for secure positioning of the analyzer in various field conditions.
Field Mate Test Stand: Designed for field use, this stand ensures consistent sample positioning, improving the reliability of measurements in outdoor environments.

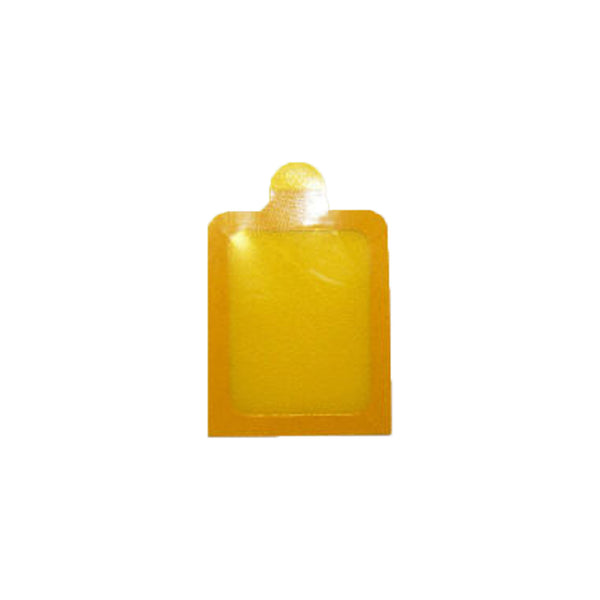

Soil Guard: Protects the analyzer when conducting soil analysis, preventing contamination and ensuring accurate readings.
