Evident Scientific Vanta Element-S Collection

12 products

Showing 1 - 12 of 12 products

Evident Vanta Element-S Handheld XRF Analyzer

Affordable XRF with Light Element Detection without sacrificing performance!

The Evident Vanta Element-S expands on the trusted performance of the Vanta Element by enabling fast and accurate detection of light elements like magnesium (Mg), aluminum (Al), silicon (Si), sulfur (S), and phosphorus (P). Equipped with a higher-power 4-watt X-ray tube and an advanced silicon drift detector (SDD), the Element-S delivers rapid alloy identification and chemistry that includes both light and heavy elements—essential for modern QA/QC and scrap metal recycling.

With a rugged build, intuitive interface, and cloud-ready data options, the Vanta Element-S offers the best value in full-range handheld XRF performance.

Technical Specifications

Feature	Specification
X-ray Tube	4-watt, 50 kV silver anode
Detector	Fast-response Silicon Drift Detector (SDD)
Elements Detected	Mg (Z=12) to U (Z=92)
Window Material	Prolene with Kapton mesh support
IP Rating	IP54 (dust and splash resistant)
Drop Resistance	MIL‑STD‑810G (4 ft / 1.2 m tested)
Operating Temperature	–10 °C to 45 °C (14 °F to 113 °F)
User Interface	Touchscreen, smartphone-style UI
Data Storage	1 GB microSD card, USB export
Wireless Options	Optional Wi-Fi for network transfer
Battery	Rechargeable lithium-ion (hot-swappable)
Warranty	3 years standard coverage

Applications

Scrap Metal Sorting – Identify aluminum and magnesium alloys with confidence
Metal Manufacturing – Analyze light and heavy elements for QA/QC and PMI
Tool Steel and Machined Parts – Detect S and P for weldability and brittleness
Aluminum Mills & Foundries – Verify Al, Si, Mg content in real-time
Copper and Brass Sorting – Differentiate Cu-Zn-Sn-Pb compositions quickly
Precious Metal Verification – Assay Au, Ag, Pt, Pd with accuracy

Alloy Families Detected

Low-Alloy Steels – Fe, Mn, Cu, S, P
Stainless Steels – Fe, Cr, Ni, Mo
Nickel Alloys – Ni, Co, Fe
Copper Alloys – Cu, Zn, Sn, Pb
Aluminum Alloys – Can measure Light Elements such as Al, Mg, & Si
Precious Metals – Gold (Au), Silver (Ag), Platinum (Pt), Palladium (Pd)

Included with Every Vanta Element-S

Evident Vanta Element-S handheld XRF analyzer

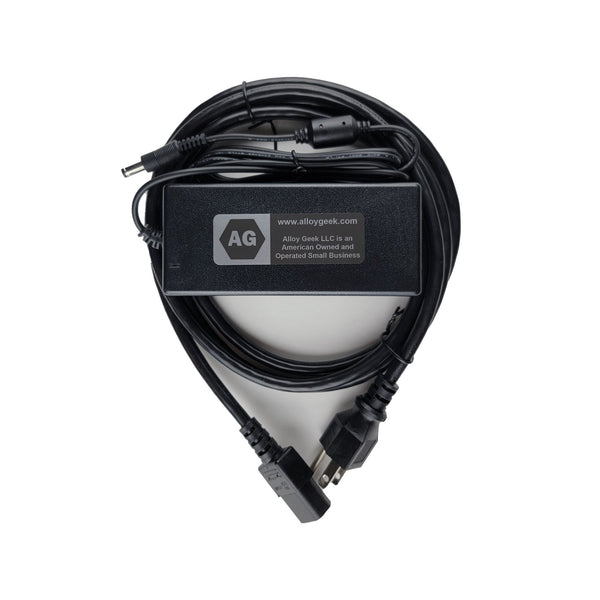

Rechargeable battery & AC power supply
USB flash drive with software & manuals
microSD card for data storage
10 XRF window replacements
Rugged, foam-lined transport case
Wrist strap

Optional Accessories

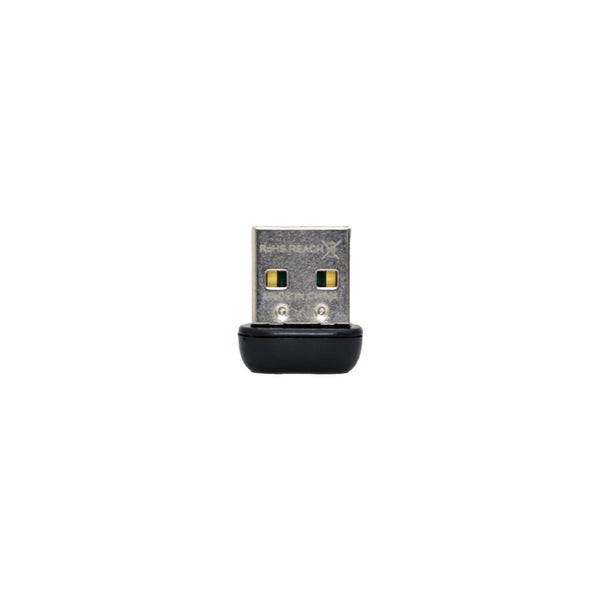

USB Wi-Fi Adapter for wireless transfer

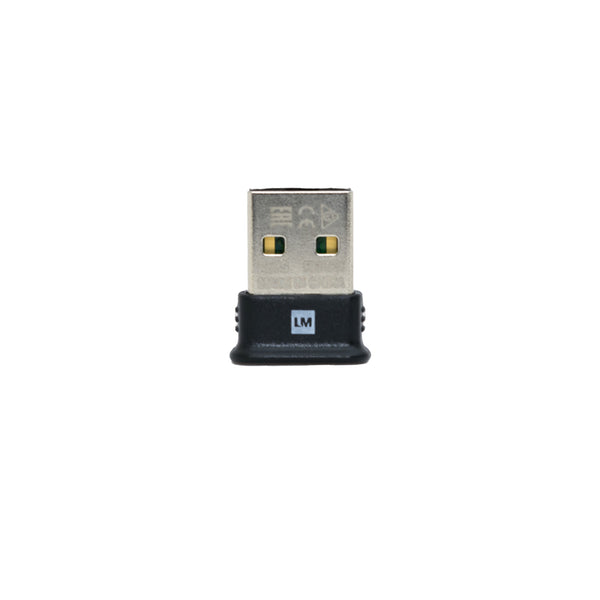

Bluetooth USB Adapter

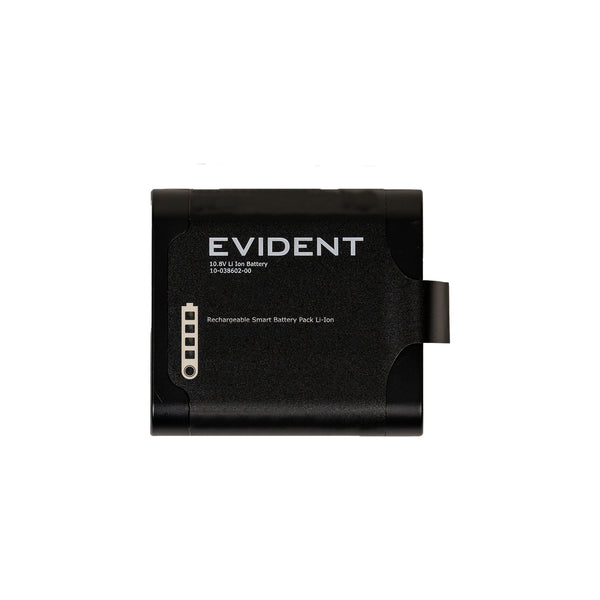

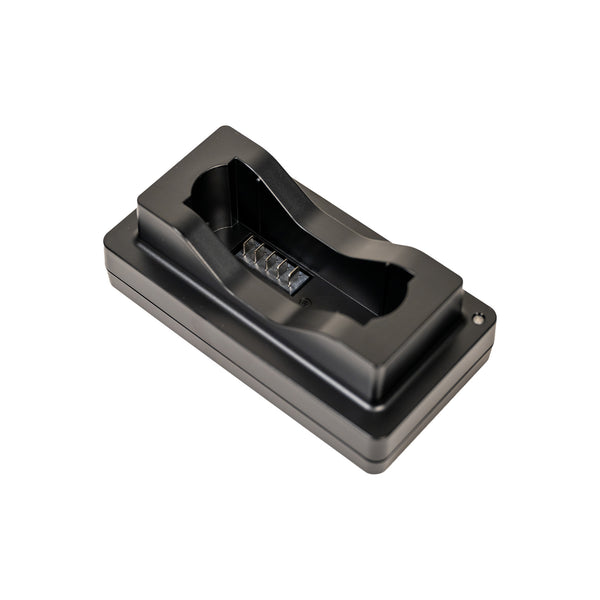

Spare Battery & Desktop Charger Kit
Vanta Benchtop Workstation
Soil Foot and Weld Mask
Custom holster and field stand

Connected Workflow

Export test results directly via USB
Optional Wi-Fi for automatic uploads to network folders
Compatible with Evident Connect Cloud for streamlined data access
Instant access to new software features via automatic updates

Why Choose Vanta Element-S?

When light element analysis matters—choose the Vanta Element-S. It’s the perfect tool for alloy verification where magnesium, aluminum, silicon, sulfur, and phosphorus make the difference. Affordable. Rugged. Ready for any environment.
