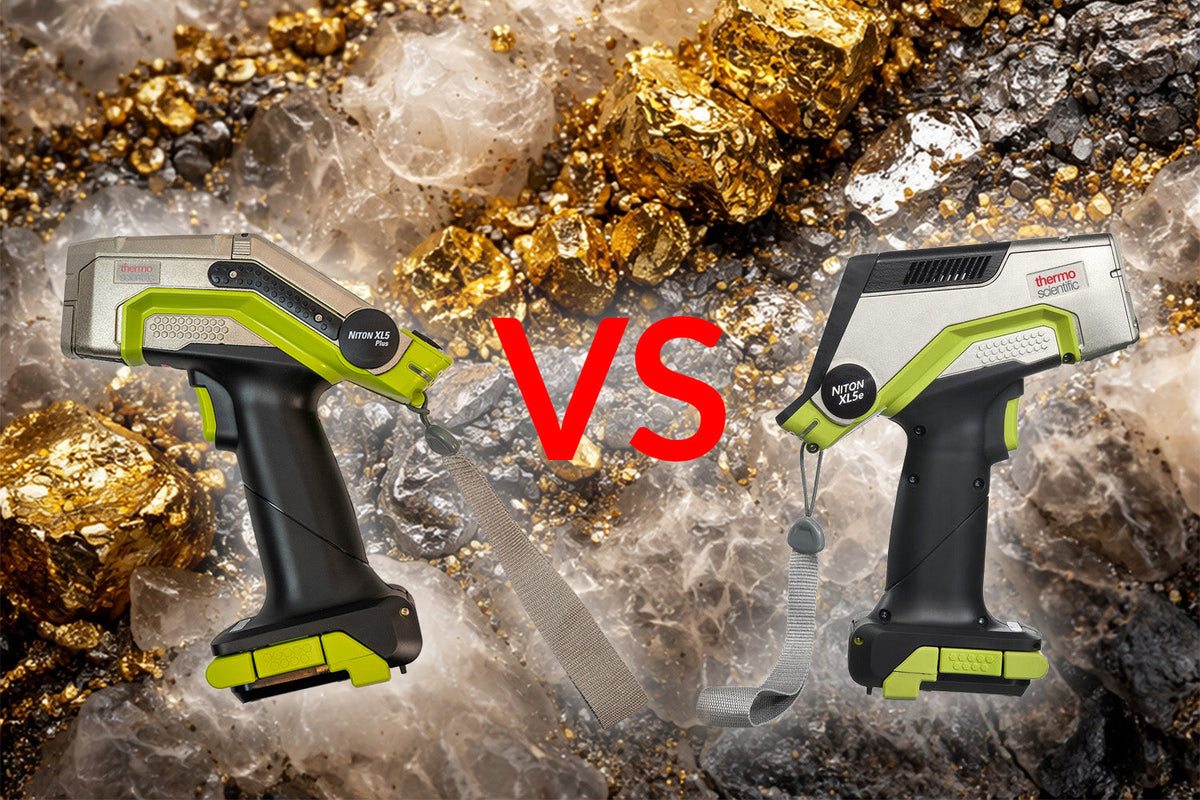

Niton XL5 Plus vs Niton XL5e for Mining/Soil/Geochem
|
|
Time to read 6 min
Table of Contents
Mining Mode Performance for Mineral Exploration Mining Mode Basics: Why FP Calibration Matters Precious Metals & PGMs: Gold, Silver, and LOD Reality in the Field Copper & Base Metals: Where Mining XRF Shines Iron, Manganese, Nickel, and Molybdenum Elements So What Do the LOD Differences Between the XL5 & XL5e Actually Mean? Why the XL5e Still Makes Sense in Mining Final Takeaway for Exploration Teams Mining Mode LOD Comparison (60s per Filter)
Mining Mode Performance for Mineral Exploration
Handheld XRF has earned its place in mineral exploration because it answers one critical question fast:
“Is this rock worth paying attention to?”
Both the Niton XL5 Plus and Niton XL5e are built to answer that question in the field using Mining Mode, which is optimized for rocks, powders, and cores using a Fundamental Parameters (FP) calibration. Where they differ is their physical design and limits of detection... and whether that difference matters for your exploration strategy.
Let’s break it down.
Mining Mode Basics: Why FP Calibration Matters
Mining Mode on both instruments uses Fundamental Parameters (FP) calibration. That matters because FP:
- Is physics-based and not matrix-locked
- Handles changing lithologies well (basalt → rhyolite → alteration)
- Work reliably with minimal sample prep
In real exploration programs—where samples are rough, dirty, and geologically diverse—FP calibration provides stable, comparable data across varied geology. Both the XL5 Plus and XL5e are strong here with the difference not how they calculate—it’s how low they can detect.
FP cals have been the industry standard for years, not just unique to the XL5 platform.
Precious Metals & PGMs: Gold, Silver, and LOD Reality in the Field
Handheld XRF can detect and quantify gold and silver in the field when concentrations are high enough and sample conditions are favorable, making it a useful screening tool in many exploration programs. This is where limits of detection (LOD) start to matter. The Niton XL5 Plus reaches lower Au and Ag LODs than the XL5e, which can improve confidence when working near detection thresholds or screening weakly mineralized samples.
In practice, geologists rarely rely on Au alone. Instead, XRF is most powerful when used to track pathfinder elements that commonly accompany precious-metal mineralization—such as As, Sb, Bi, Pb, Zn, Cu, Fe, and Mn—often at concentrations well above XRF detection limits. Within these ranges, both the XL5 Plus and XL5e perform reliably, with the XL5 Plus offering additional sensitivity headroom and the XL5e delivering fast, actionable results for field decision-making.
Copper & Base Metals: Where Mining XRF Shines
Copper (Cu)
Copper is where handheld XRF truly proves its value in the field. In porphyry and IOCG systems, Cu commonly occurs from hundreds of ppm up into percent-level concentrations, putting it squarely in the sweet spot for portable XRF analysis. Both the Niton XL5 Plus and XL5e detect copper quickly and confidently, and the shared 5W X-ray tube allows for rapid and precise data collection on Cu-bearing ores. In real exploration, differences in copper LODs are largely academic—both instruments see copper clearly at exploration-relevant levels.
Zinc (Zn), Lead (Pb), and Tin (Sn)
In VMS, skarn, and polymetallic systems, zinc and lead routinely appear well above 1,000 ppm, while tin is commonly elevated above background in granitic and greisen-style environments. The Niton XL5 Plus does offer lower limits of detection for these elements, but in practical field use the XL5e still performs exactly where it needs to—reliably flagging elements and supporting confident, real-time decisions without waiting on laboratory results.
Iron, Manganese, Nickel, and Molybdenum Elements
Fe & Mn
Iron and manganese are often just as important as the primary commodity in exploration. Both elements serve as strong indicators of alteration halos, redox changes, and structural controls within a mineral system. In practical field work, Fe and Mn concentrations are typically well above handheld XRF detection limits, which means both the Niton XL5 Plus and XL5e perform exceptionally well for rapid mapping, vectoring, and geological interpretation.
Ni & Mo
Nickel and molybdenum play a critical role in understanding porphyry systems, ultramafic-hosted deposits, and skarn environments. While the Niton XL5 Plus provides an advantage when pushing into lower-concentration regimes, the XL5e remains highly effective for reconnaissance mapping, drill-site decision-making, and core logging support. In most exploration scenarios, the XL5e delivers fast, actionable data that aligns well with real-world concentration ranges encountered in the field.
So What Do the LOD Differences Between the XL5 & XL5e Actually Mean?
The Niton XL5 Plus delivers lower limits of detection across the board, making it the stronger choice when sensitivity matters. This added headroom is especially useful when working with weak geochemical signals, marginal mineralization, or subtle pathfinder enrichment where small concentration differences influence interpretation. For exploration teams pushing into low-contrast or early-stage targets, the XL5 Plus provides greater confidence when signals approach detection limits.
The Niton XL5e operates with higher limits of detection than the XL5 Plus, but those LODs still sit well below most exploration-relevant concentration ranges. Sharing a 5W X-ray tube, the XL5e delivers fast data collection and reliable results for common mining workflows, including ore-versus-waste discrimination, pathfinder detection, and geochemical vectoring. When targets exceed roughly 100 ppm—as they do in most mineral exploration programs—the XL5e’s LODs are not the limiting factor.
Why the XL5e Still Makes Sense in Mining
Beyond strong LODs, the XL5e brings some very real field advantages first and foremost being the added cooling fan, a much needed addition to the XL5 platform. This also includes a fixed screen which improves field durability.
Let's be clear, that cooling fan is going to make the world of difference in hot, field environments such as:
- Western USA (i.e. Nevada)
- Australia (even the sun is trying to kill you)
- Africa 🥵
For long days in the field, those design choices matter.
Final Takeaway for Exploration Teams
When the Niton XL5 Plus Is the Right Choice
Choose the Niton XL5 Plus when your exploration work depends on seeing as low as possible. This is the better tool for programs chasing low-ppm analytes, subtle pathfinder enrichment, or marginal geochemical signals where added sensitivity directly impacts decision making. If your work regularly pushes detection limits and you want maximum analytical headroom to interrogate weak or emerging analytes, the XL5 Plus is the more appropriate instrument.
Where the Niton XL5e Excels in Mining
The Niton XL5e is a highly capable mining analyzer for the majority of real-world exploration programs. It is best suited for projects operating in realistic concentration ranges, where speed, durability, and throughput matter more than ultra-low detection limits. With the same 5W X-ray tube, fast data acquisition, active cooling, and a more rugged fixed-screen design, the XL5e is particularly well suited for hot, demanding field environments where fast answers and reliability outweigh the need for lab-level sensitivity.
When the Niton XL5 Plus Is the Right Choice
Choose the Niton XL5 Plus when your exploration work depends on seeing as low as possible. This is the better tool for programs chasing low-ppm analytes, subtle pathfinder enrichment, or marginal geochemical signals where added sensitivity directly impacts decision making. If your work regularly pushes detection limits and you want maximum analytical headroom to interrogate weak or emerging analytes, the XL5 Plus is the more appropriate instrument.
Where the Niton XL5e Excels in Mining
The Niton XL5e is a highly capable mining analyzer for the majority of real-world exploration programs. It is best suited for projects operating in realistic concentration ranges, where speed, durability, and throughput matter more than ultra-low detection limits. With the same 5W X-ray tube, fast data acquisition, active cooling, and a more rugged fixed-screen design, the XL5e is particularly well suited for hot, demanding field environments where fast answers and reliability outweigh the need for lab-level sensitivity.
Both instruments have a place in modern mineral exploration. The decision ultimately comes down to how low you need to measure and how harsh the environment is where you’ll be measuring.
Mining Mode LOD Comparison (60s per Filter)
Typical limits of detection (ppm) published by Thermo Scientific for Mining Mode using Fundamental Parameters (FP) calibration.
| Element | XL5e LOD (ppm) | XL5 Plus LOD (ppm) | Exploration Context |
|---|---|---|---|
| Au | ~4 | ~2 | Rarely used for direct Au quant; pathfinders matter more |
| Ag | ~2 | ~1 | Useful for Ag-rich systems and polymetallic veins |
| Cu | ~6 | ~3 | Porphyry & IOCG systems (often >>100 ppm) |
| Zn | ~3 | ~2 | VMS & polymetallic deposits |
| Pb | ~2 | ~1 | Strong pathfinder in many systems |
| Sn | ~4 | ~3 | Granitic and tin-bearing systems |
| Fe | ~17 | ~11 | Alteration, lithology, and redox indicator |
| Mn | ~28 | ~16 | Alteration halos, strat control |
| Ni | ~9 | ~4 | Ultramafic & magmatic systems |
| Mo | ~2 | ~1 | Porphyry pathfinder |
| As | ~3 | ~1 | Critical gold pathfinder |
| Sb | ~6 | ~3 | Epithermal Au pathfinder |
| Bi | ~2 | ~1 | Gold association indicator |
| Ba | ~35 | ~20 | Alteration and fluid pathways |
Source: Limits of detection data adapted from published Mining Mode LOD provided by Thermo Scientific Niton for the XL5 Plus and XL5e handheld XRF analyzers under standardized test conditions. You can find the XL5 Plus LODs here and the XL5e LODs here.
