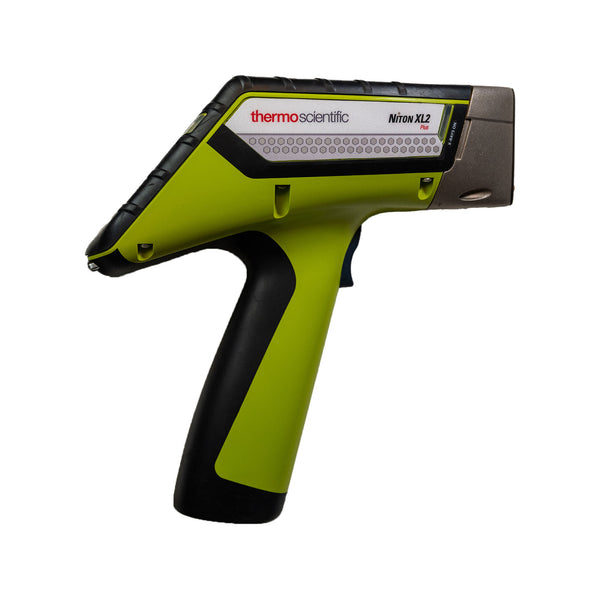

The Thermo Scientific™ Niton™ XL2 Plus Handheld XRF Analyzer is engineered for rapid and precise elemental analysis across various applications, including metal and alloy identification, positive material identification (PMI) testing, and geochemical analysis. This versatile analyzer enables operators to scan a broad range of materials efficiently.

Technical Specifications:

• X-Ray Source: Equipped with a 2W X-ray tube featuring an Ag anode, operating between 6-45kV and 1-200µA, with dynamically adjustable current to optimize sensitivity for each analysis.

• Detector: Utilizes a Silicon Drift Detector (SDD) for enhanced light element detection (Mg, Al, Si, P, S), complemented by Detector ProGuard protection to minimize the risk of detector damage when analyzing sharp objects.

• Analytical Range: Capable of detecting elements from magnesium (Mg) to uranium (U).

• Display: Features a fixed-angle, color, resistive touchscreen display for intuitive operation.


• Data Storage and Transfer: Offers 64 MB of internal system memory and 128 MB of internal user storage, accommodating approximately 10,000 readings with spectra. Data transfer options include USB, Bluetooth, and RS-232 serial communication.


• Power Supply: Operates on a 7.4V lithium-ion battery or a 12V DC, 3A, 36W power supply. The hot-swap battery functionality allows for uninterrupted operation during battery replacements.


• Durability: IP54 certified, ensuring the device is sealed against moisture and dust, making it suitable for harsh industrial environments.

Standard Accessories:

• Locking shielded carrying case

• Two lithium-ion battery packs

• 110/220 VAC battery charger/AC adaptor

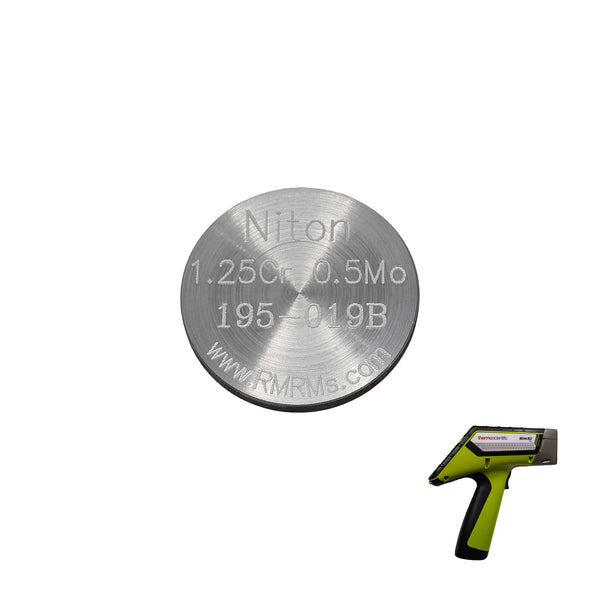

• Check samples

• Belt holster

• Safety lanyard

• PC connection cables (USB and RS-232)

Optional Accessories:

• Portable Test Stand: Provides a stable platform for hands-free operation, enhancing measurement precision.

• Mobile Test Stand: Offers flexibility for on-the-go analysis, allowing for secure positioning of the analyzer in various field conditions.

• Field Mate Test Stand: Designed for field use, this stand ensures consistent sample positioning, improving the reliability of measurements in outdoor environments.

• Soil Guard: Protects the analyzer when conducting soil analysis, preventing contamination and ensuring accurate readings.

Find these accessories and more in this collection for the Thermo Scientific Niton XL2 Plus!
