Bruker Tracer 5 Handheld XRF Analyzer Collection

10 products

Showing 1 - 10 of 10 products

Experience the power of lab-grade analysis in a truly field-ready format with the Bruker TRACER 5 Handheld XRF Analyzer. Engineered for cutting-edge researchers, conservation experts, and advanced materials scientists, the TRACER 5 offers unmatched flexibility, precision, and control—capable of detecting elements from fluorine (F) to uranium (U).

At Alloy Geek, we supply new and pre-owned TRACER 5 analyzers, accessories, and consumables to support your workflows, whether you're in the field or in the lab.

The TRACER 5 Sets a new standard in XRF Technology

Advanced Rhodium X-ray tube (6–50 kV, 4 W)
Graphene window SDD: Improved sensitivity for light elements (F, Na, Mg, Al, Si)
Selectable beam paths: Switch between air and helium to maximize light element detection
User-adjustable parameters: Voltage, current, filters, collimators, beam path
SharpBeam™ geometry: Improves signal, reduces scatter, and extends battery life
Internal CMOS camera: Align and document each sample precisely
Live spectra viewing: On-device and through ARTAX & BIT PC software
IP54 rated: Built for demanding environments (-10°C to 50°C operation)

The Bruker TRACER 5 is trusted by researchers and professionals across a wide range of disciplines:

Art Conservation & Cultural Heritage

Non-destructive analysis of paintings, sculptures, coins, ceramics, and more
Supports material authentication and restoration guidance

Archaeometry & Anthropology

In-field analysis of bone, obsidian, glass, and ancient metals
Identifies composition in heterogeneous or fragile samples

Geology & Natural Resources

Field-ready for core logging, chemostratigraphy, and geochemical surveys
Detects major, minor, and trace elements with speed and precision

Environmental & Regulatory Monitoring

Soil and plant nutrient analysis
Detects heavy metals, restricted substances, and pollutants

Semiconductor & Materials Research

Detects light elements like fluorine used in CVD and plasma etching processes
Powerful for custom calibration development and elemental mapping

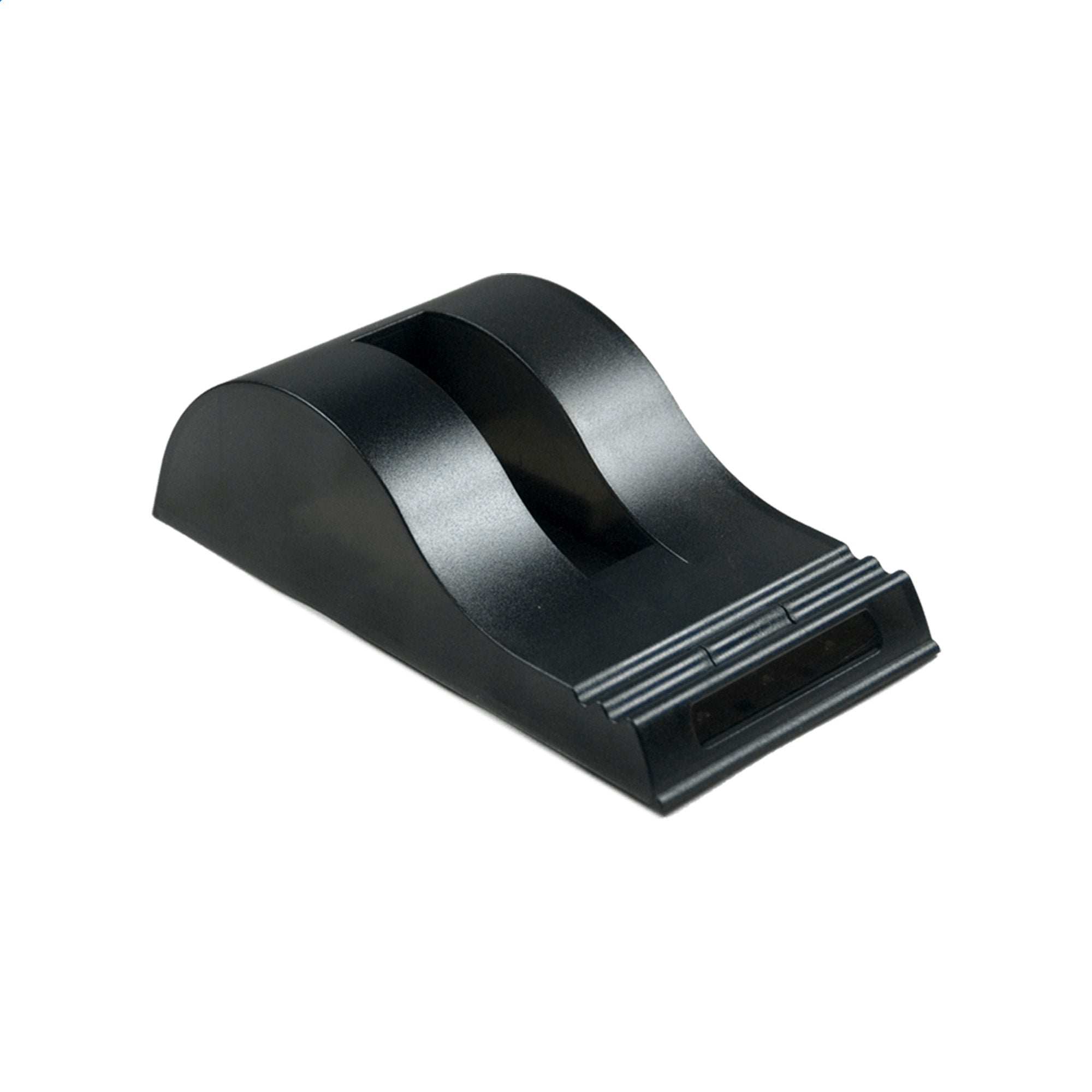

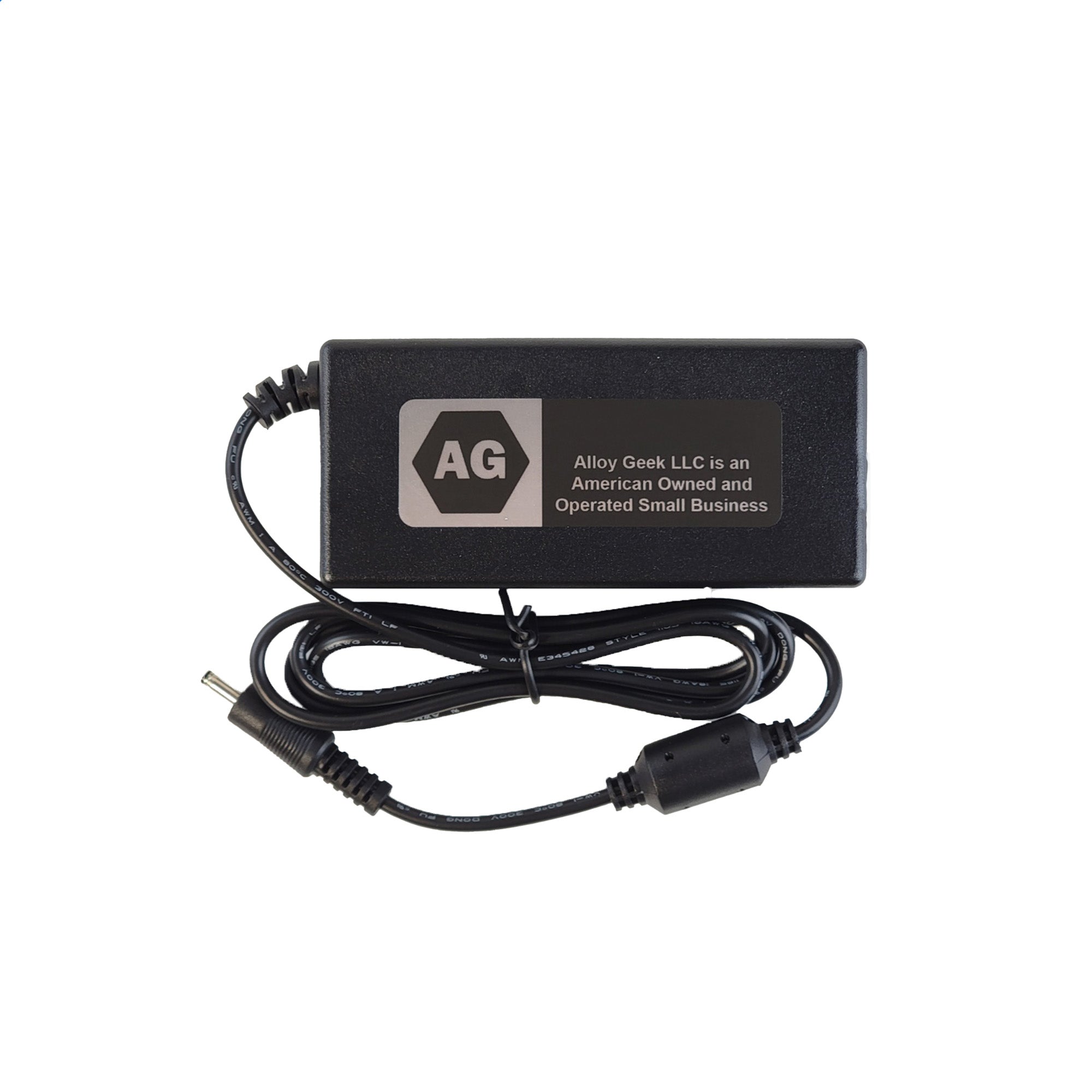

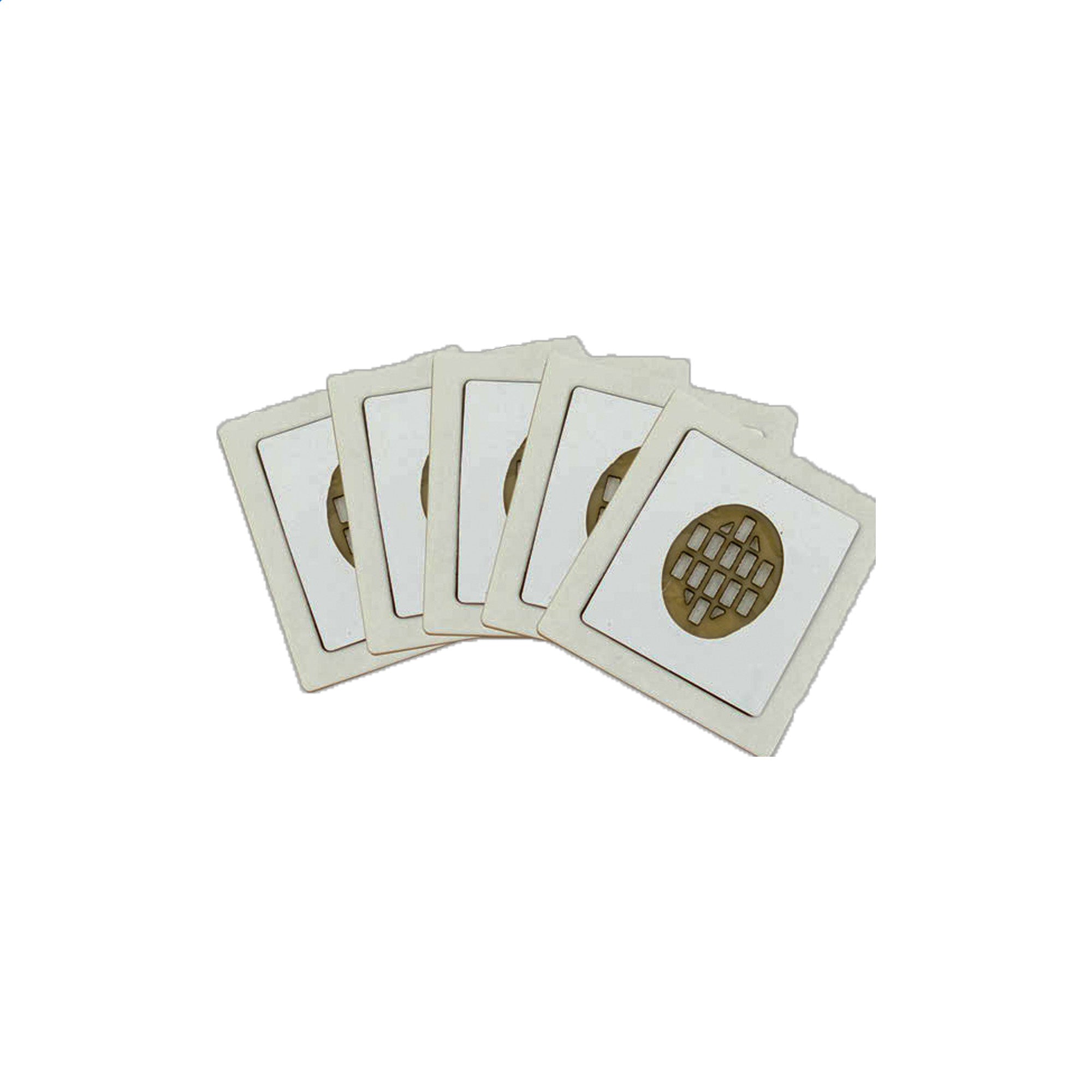

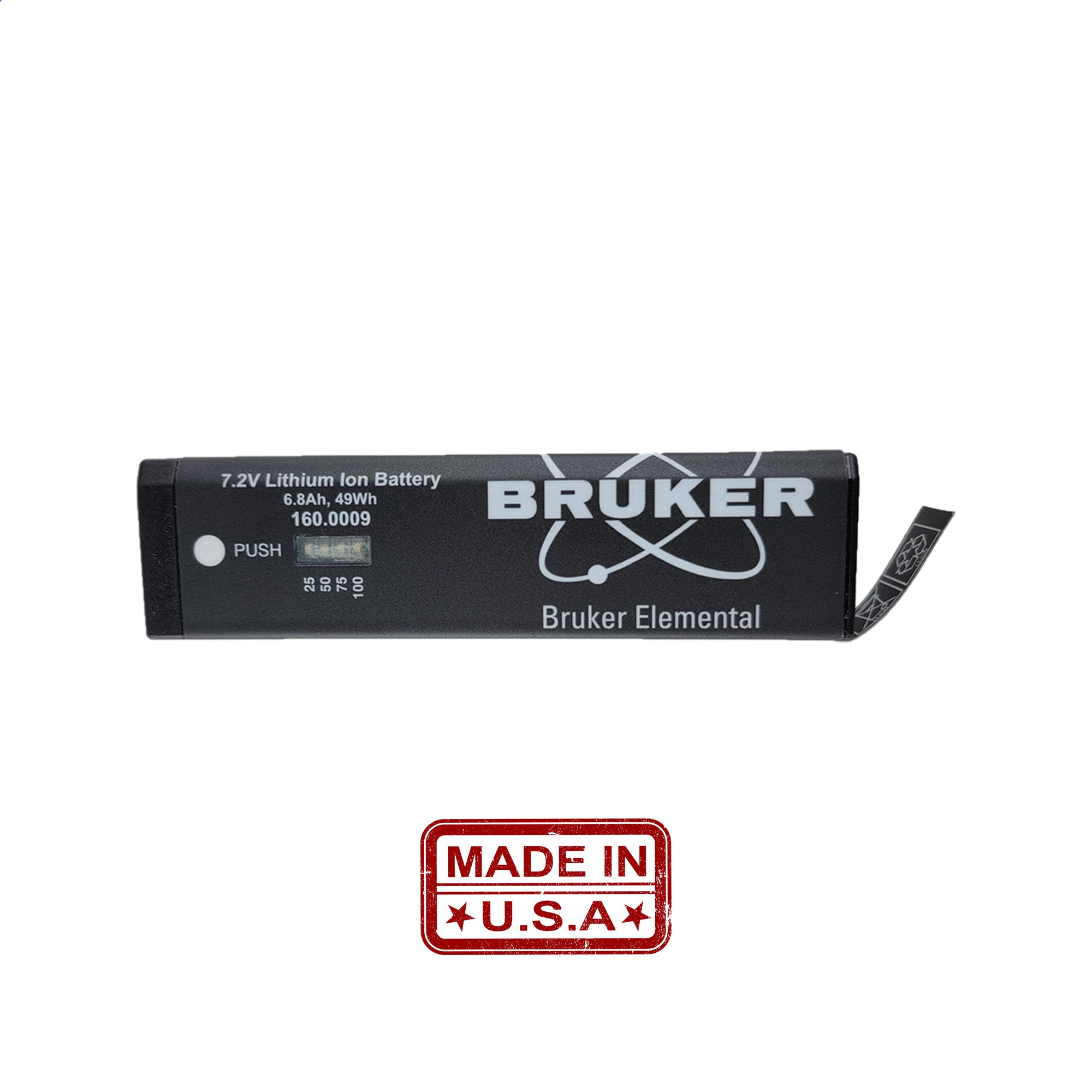

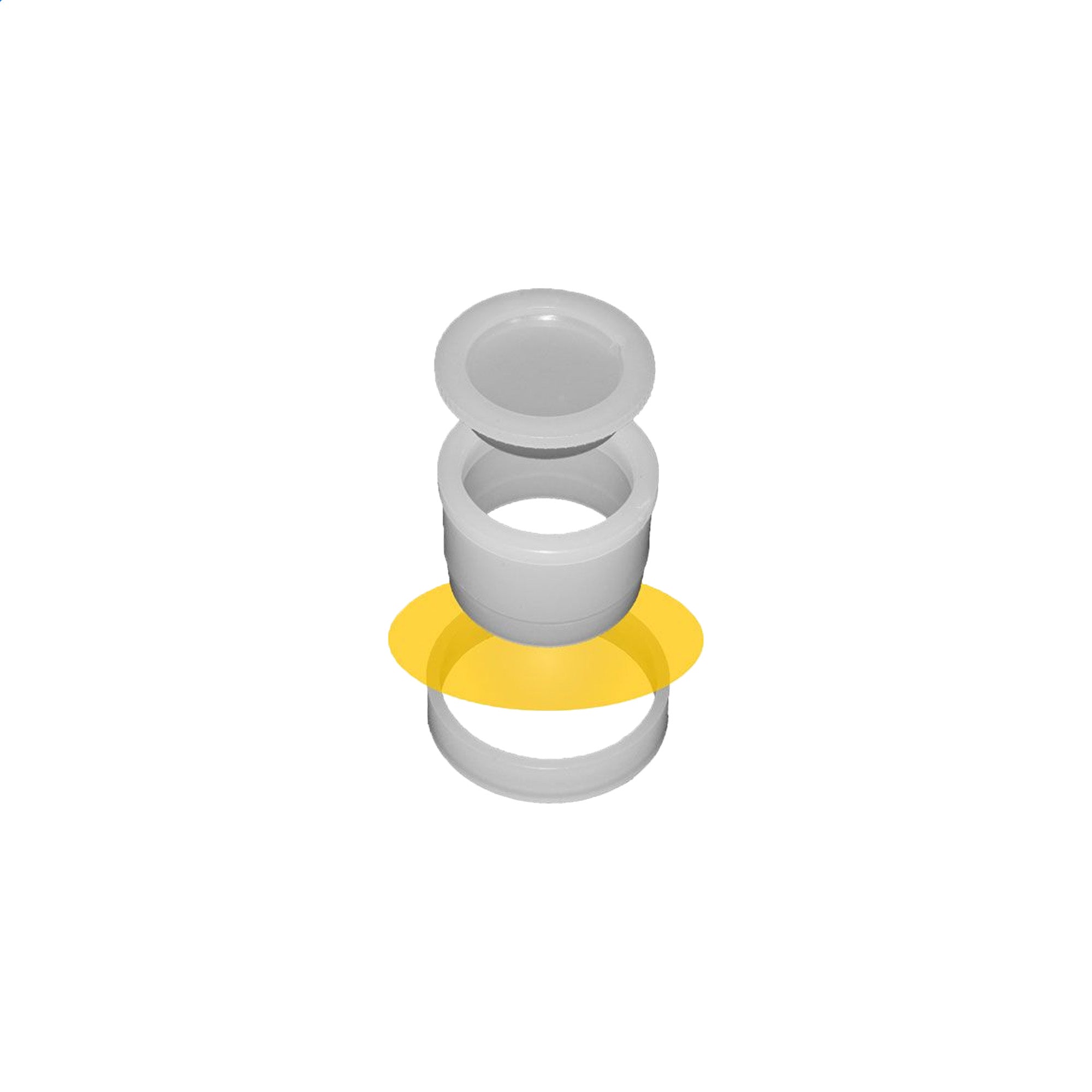

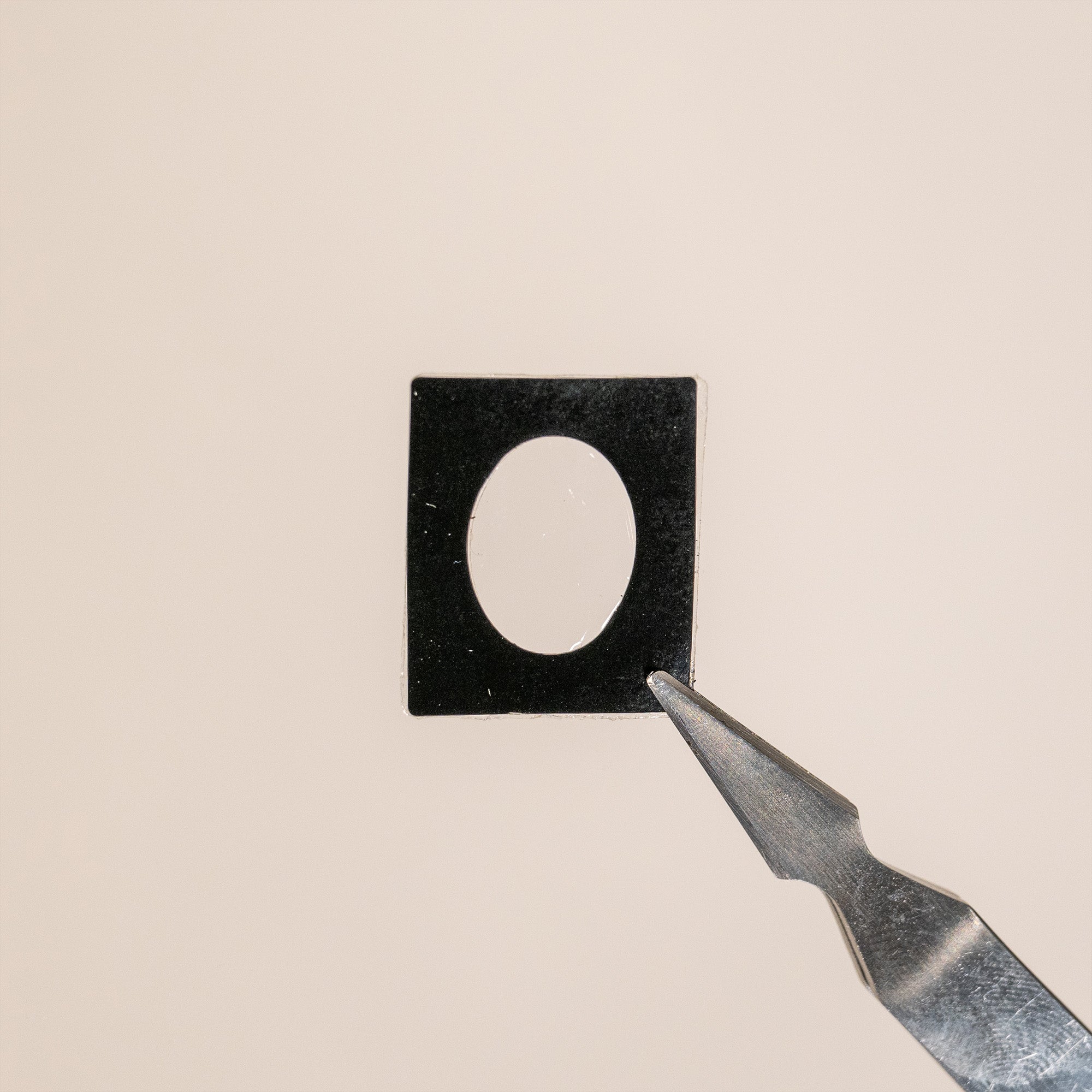

Accessories & Support

Keep your Tracer 5 running smoothly with our curated selection of accessories!

All items ship from the USA for fast, reliable delivery. Our team of experts is available to help with configuration, training, and support—just reach out.
