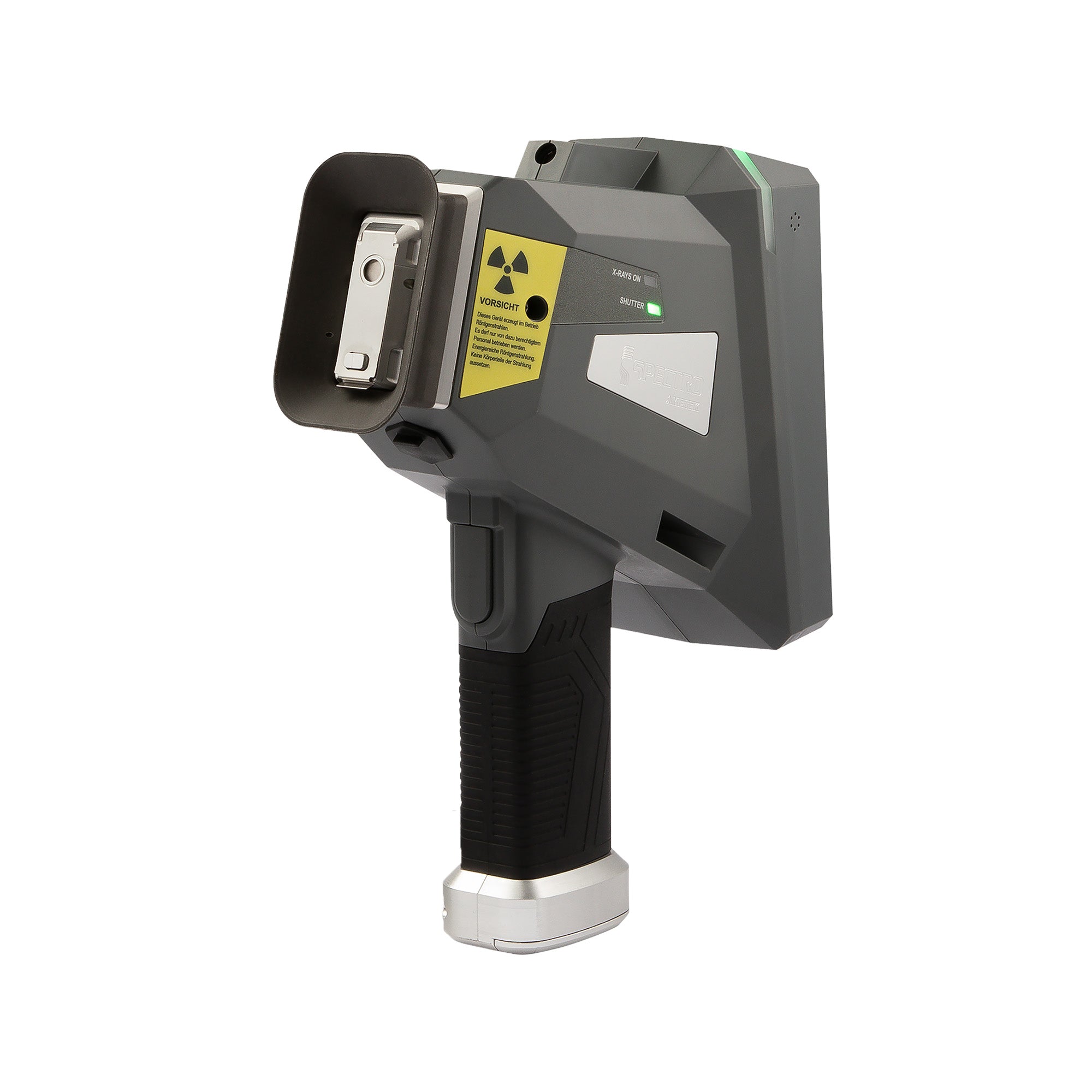

Spectro xSORT XHH04 Handheld XRF Analyzer – Fast, Accurate Metal & Alloy Analysis

Revolutionize your on-the-spot elemental testing with the Spectro xSORT XHH04, a rugged and high-performance handheld ED‑XRF spectrometer built for demanding industrial environments—from scrapyards and foundries to manufacturing and environmental screening.

Why Choose the Spectro xSORT XHH04?

• Ultra-Fast Metal & Alloy Analysis
  Analyze up to 46 elements across 16 metal matrices in just 2 seconds for most alloys, and about 7 seconds for light-element alloys like Al, Si, and Mg.

• Ergonomic Design for All-Day Use - Lightweight (1.35 kg / 2.97 lb; 1.6 kg / 3.52 lb with battery), balanced, with a light-squeeze trigger and a large 5‑inch HD, wide-angle display. Optimized for fatigue-free, one-handed operation—even with gloves.

• Built-In Calibration & Protection - Features a shutter-protected detector that also serves as the sample surface for iCAL (Intelligent Calibration Logic)—ensuring continuous standardization and reliable results.

• Comprehensive Data Capture & Connectivity - Equipped with Wi-Fi, Bluetooth, microSD, USB-C, and optional GPS and dual onboard cameras (overview and test-spot imaging) for full documentation and connectivity.

• Flexible Docking Options for Lab-Like Workflow - Use it handheld or place it in the optional docking station or portable stand/sample chamber to speed up throughput—the analyzer remains active while you prepare the next sample.

• High Sensitivity Detector (PIN or SDD) - Utilizes a high-resolution PIN or Silicon Drift Detector (SDD) for precise and sensitive detection across a wide element range.

Applications

• Scrap sorting and positive material identification (PMI)
• Foundry QA/QC and manufacturing validation
• Environmental screening of soils and waste materials
• Metal recycling, mining, and process control inspections

What's Included

• Spectro xSORT XHH04 handheld XRF analyzer (battery included)
• Transport case
• Other accessories are options such as the Docking station & sample chamber

Spectro Excellence & Support

Backed by Spectro’s 40+ years of expertise in elemental analysis and global reliability:

• Expand your uptime with AMECARE Performance Services—local support, training, application assistance, and calibration in more than 50 countries.
• Part of a trusted lineup with the SPECTROSCOUT portable and SPECTRO XEPOS benchtop analyzers, all using the same intuitive software

Stress-free on-site analysis: fast, ergonomic, data-rich, and field-ready—optimized for metals testing wherever you are.
