Description
Introducing the Hitachi X‑MET8000 Handheld XRF Analyzer
Fast, accurate, lab-grade elemental analysis—anywhere. Rugged, intuitive, and versatile, the X‑MET8000 supports multiple models and modes designed to solve your specific testing challenges across industries.
Available Models
| Model | X-ray Tube | Filters | Elements | Detector | Sample Temp | Window Protection | Warranty |
|---|---|---|---|---|---|---|---|
| X‑MET8000 Smart | 40 kV | Single | K–U | Large-area SDD | 100 °C | Kapton window | 1 yr |

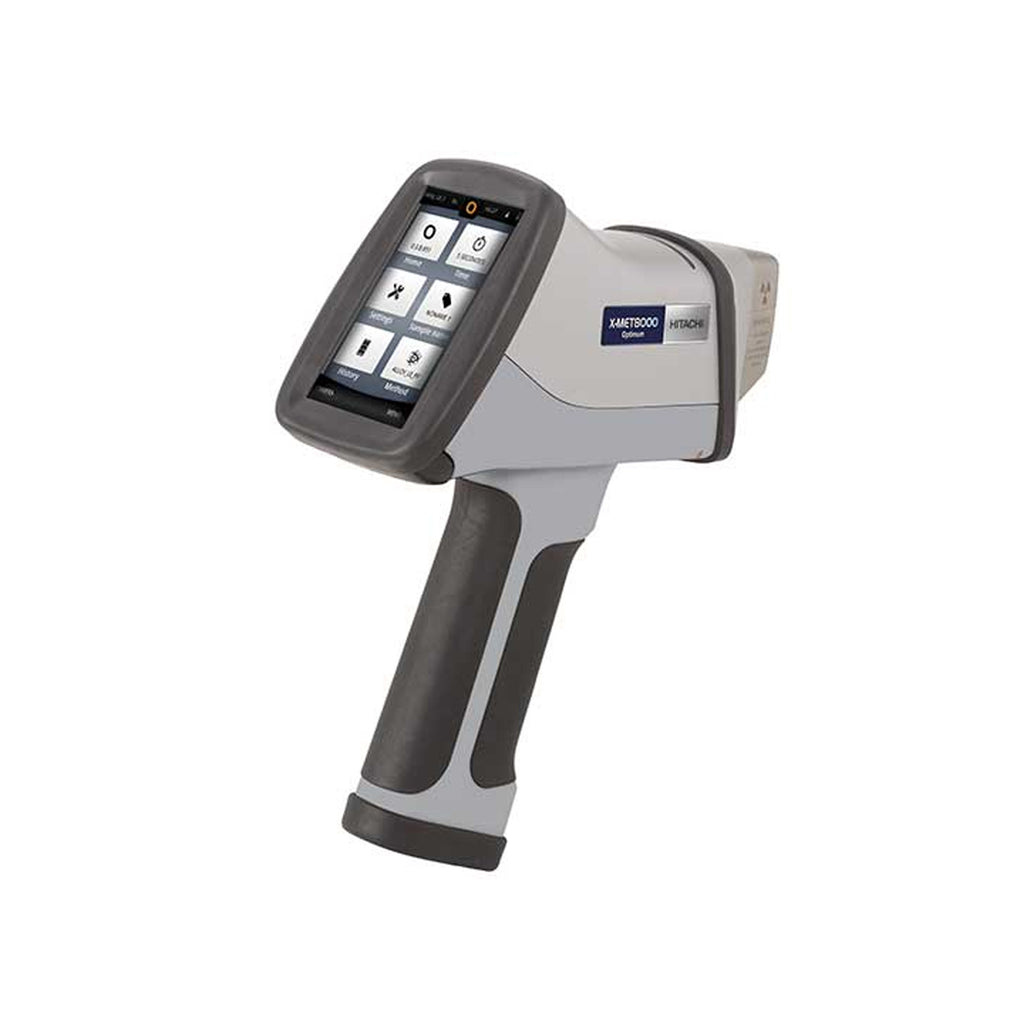

| X‑MET8000 Optimum | 40/50 kV | 6-position wheel | Mg–U | Large-area SDD | 100 °C (400 °C optional HERO™) | Optional shield | 2 yr |

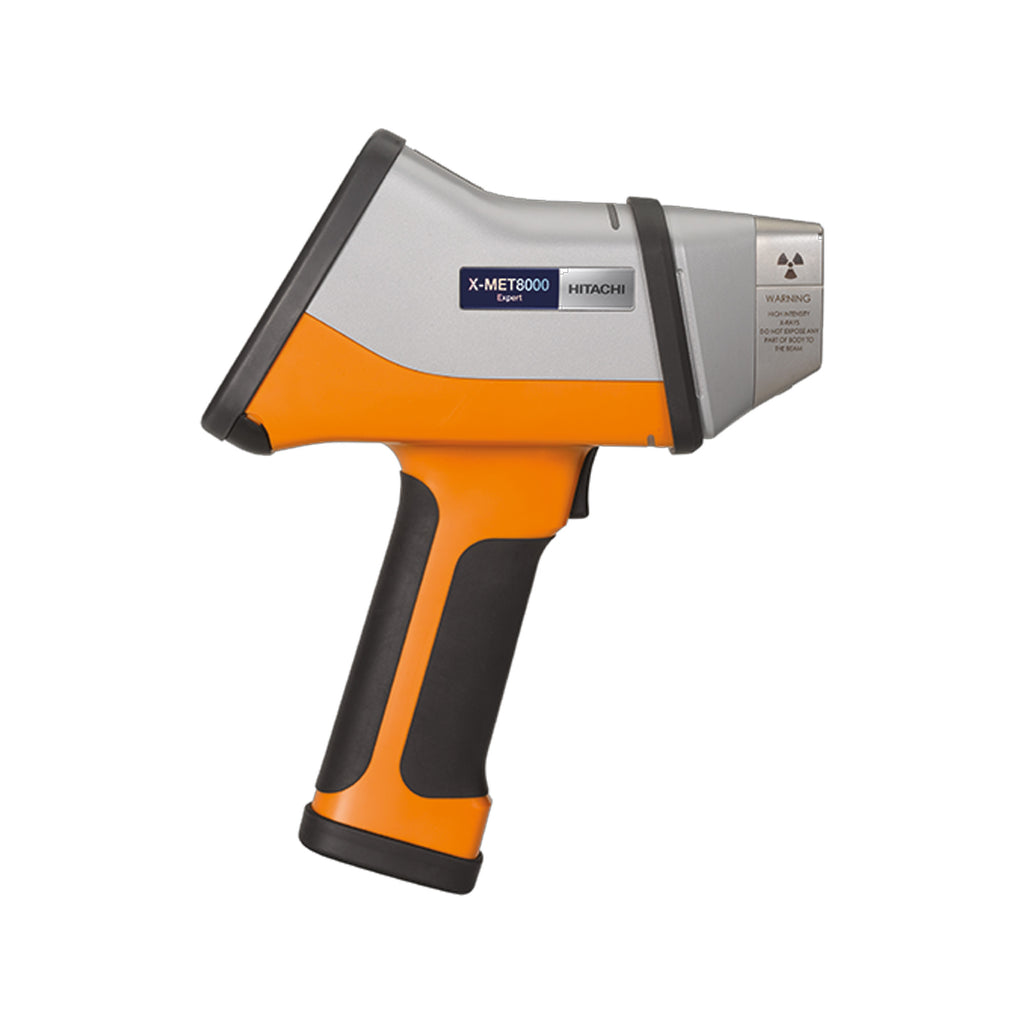

| X‑MET8000 Expert | 50 kV | 6-position wheel | Mg–U | Large-area SDD | 100 °C (400 °C optional HERO™) | Optional shield | 2 yr |
*Warranty duration and coverage to be confirmed at time of quote or order!
- Weight: ~1.5 kg (battery included)
- Battery Life: 10–12 hr (1 battery Smart, 2 for others)
- Display: 4.3″ Blanview touchscreen (480x800)
- Ruggedness: IP54, MIL‑STD‑810G drop-proof
- Storage: Up to 100,000 results (spectra + optional images)
Available Analysis Modes
Alloy (Smart/Optimum/Expert)
- Purpose: Automatic alloy grade ID and chemistry in seconds
- Used in: PMI, scrap recycling, manufacturing QA/QC, precious metals
- Benefits: Empirical + fundamental calibration ensures high accuracy
Alloy LE (Optimum/Expert)
- Purpose: Detects light elements (Mg, Al, Si, P, S) in alloys
- Used in: Aluminum bronzes, specialty steels, lightweight alloys
RoHS / Expert CG (Compliance Grade)
- Purpose: Screen electronics, polymers, consumer goods for hazardous substances
- Used in: CPSIA - Consumer Product Safety Improvement Act - of 2008, Packaging directive, WEEE – Waste of Electrical and Electronic Equipment, CA Prop 65, etc.
- Features: Integrated camera + small-spot collimator for pinpoint analysis
Mining / Geo (Optimum Geo / Expert Geo)
- Purpose: Soil, ore, environmental screening
- Used in: Mining exploration, grade control, soil contamination surveys
- Features: BOOST™ boosts sensitivity ×10; optional GPS; HERO™ hot-sample window
Coating Thickness
- Purpose: Non-destructive measurement of metal plating thickness
- Used in: Manufacturing, QA, decorative/coated parts
Archaeometry
- Purpose: Non-invasive elemental analysis in cultural heritage
- Used in: Art preservation, pigment and alloy analysis
- Features: Small-spot capability and camera aids precise measurement
Precious Metals & Jewelry
- Purpose: Verify gold, silver, platinum content and purity
- Used in: Jewelry testing, coin appraisal
- Benefits: Fast, non-destructive screening of trace and precious elements
Bunker Fuel Oil (Sulfur Testing)
- Purpose: In-situ sulfur determination in fuel oils
- Used in: Environmental compliance (ASTM D4294, ISO8754)
- Features: Rugged, GPS, and onboard reporting
Why Choose the X‑MET8000?
- Precision & Speed: Results in seconds with excellent repeatability; standard 15s test or rapid 5s assays
- Tough Build: IP54 and military-grade tested ensure reliability outdoors
- Smart Calibration: Auto-select blends empirical & FP methods; LE modes cover light elements
- Enhanced Ergonomics: Lightweight, balanced, and easy to hold for extended use
- Data Management: Wi-Fi, Bluetooth, GPS, USB, cloud sync via ExTOPE Connect
Standard Accessories
- Li-ion battery(s) & charger
- USB cable + memory stick with manuals
- SS316 check sample for calibration verification
Optional Add-Ons
- Window shields, HERO™ hot-sample window
- Small‑spot collimator, integrated camera, GPS
- Benchtop or tripod stands, holster, backpacks
- Bluetooth printer, barcode scanner
Ready to Customize?
Select the Smart, Optimum, or Expert model that aligns with your material and industry needs. Choose the mode suite that targets your applications—from alloys and compliance to mining, fuel, coatings, heritage, and precious metals.
Documents
Application Specific Brochures
- Scrap Metal / Recycling with the Hitachi X-MET8000
- PMI Inspection with the Hitachi X-MET8000
- Precious Metals Analysis with the Hitachi X-MET8000
- QAQC with the Hitachi X-MET8000
- Regulatory Compliance with the Hitachi X-MET8000
- Archaeology with the Hitachi X-MET8000
- Mining / Soil / Geochemistry with the Hitachi X-MET8000
