SciAps X-5 Handheld XRF Analyzer Collection

Entry-Level Handheld XRF for Precious Metals, Alloy Verification, and Basic Material Analysis

The SciAps X-5 Handheld XRF Analyzer is a lightweight, cost-effective analyzer designed for users who need fast elemental analysis of metals and heavy elements without the cost of a premium instrument.

The SciAps X-5 handheld XRF analyzer is also commonly referred to as a portable XRF analyzer, handheld XRF gun, or XRF alloy analyzer. These portable instruments use X-ray fluorescence technology to quickly identify elemental composition in metals, alloys, and precious metals.

For many users, the X-5 represents the most affordable entry point into handheld XRF technology, making it a strong choice for buyers who need routine metals analysis without advanced light-element capability.

This collection includes:

• New SciAps X-5 handheld XRF analyzers
• Pre-owned and refurbished X-5 units
• Replacement parts and accessories
• Batteries, windows, chargers, and test stands

SciAps Handheld XRF Analyzer Comparison

SciAps offers several handheld XRF analyzers designed for different applications, ranging from entry-level alloy identification to advanced mining and geochemical analysis. The SciAps X-5 is the most affordable entry point, while higher-end models add sensitivity, light-element capability, and expanded applications.

Model	Position in Lineup	Typical Applications	Light Element Capability	Typical Users
SciAps X-5	Entry-level handheld XRF	Basic alloy sorting, stainless verification, precious metals testing	No	Pawn shops, jewelry buyers, small scrap yards
SciAps X-200	Step-up alloy analyzer	Scrap metal sorting, PMI testing, alloy verification	Yes	Scrap recyclers, metal processors, fabrication shops
SciAps X-505	Multi-application analyzer	Scrap sorting, soil analysis, mining exploration, environmental testing, RoHS screening	Yes	Environmental consultants, recyclers, geologists
SciAps X-550	Premium multi-purpose analyzer	Alloy sorting, aluminum alloys, mining, soil contamination, environmental, RoHS	Yes (Fastest)	Advanced PMI inspectors, environmental labs, mining companies
SciAps X-555	Geochemical / mining specialist	Mining exploration, geochemistry, soil analysis, rare earth element (REE) analysis	Yes	Exploration geologists, mining companies

Why Choose the SciAps X-5 Handheld XRF?

Budget-Friendly Entry into Handheld XRF

The X-5 is engineered for users who primarily analyze transition metals and heavy elements, allowing the instrument to deliver high-speed results at a lower cost compared to premium XRF models.

Lightweight Ergonomic Design

The X-5 weighs less than 3 pounds, making it one of the lightest handheld XRF analyzers available for field testing.

Fast Alloy and Precious Metals Analysis

The analyzer uses a 40 kV X-ray tube and detector technology optimized for heavy elements, delivering fast chemistry results for many common metal alloys and precious metals.

Built for Field Work

• Android operating system
• Wi-Fi, Bluetooth, GPS, and USB connectivity
• Integrated cameras for sample documentation
• Rugged metal housing with improved thermal management

These features allow operators to collect data, store results, and generate reports directly from the instrument.

Who Should Buy The SciAps X-5 Analyzer?

• Pawn shops
• Jewelry buyers
• Precious metals refiners
• Scrap yards doing basic sorting
• Machine shops verifying stainless steels

Applications for the SciAps X-5 Handheld XRF

Precious Metals Testing

The X-5 is commonly used by jewelry buyers, pawn shops, refiners, and precious metals dealers to quickly verify gold and silver content.

Typical elements tested include:

• Gold (Au)
• Silver (Ag)
• Platinum (Pt)
• Palladium (Pd)

Results are typically available in seconds, allowing users to verify karat values and precious metal composition without destructive testing.

Alloy Identification & Scrap Metal Sorting

The SciAps X-5 is widely used for basic alloy verification and PMI (Positive Material Identification).

Typical applications include:

• Stainless steel sorting
• Low alloy steel verification
• Copper and nickel alloy identification
• Machine shop material verification
• Scrap metal sorting

The instrument provides quick elemental chemistry readings to confirm alloy grades during manufacturing or recycling operations.

RoHS & Consumer Product Screening

Configured with the appropriate application package, the X-5 can screen materials for hazardous elements regulated under RoHS and similar compliance standards, including:

• Lead (Pb)
• Cadmium (Cd)
• Mercury (Hg)
• Chromium (Cr)

This makes the analyzer useful for electronics recycling and consumer product compliance testing.

Soil & Environmental Screening

The SciAps X-5 can also be used for basic environmental testing, including screening soils for heavy metal contamination such as:

• Lead (Pb)
• Arsenic (As)
• Cadmium (Cd)
• Chromium (Cr)
• Copper (Cu)
• Zinc (Zn)

Actual detection limits depend on soil matrix and measurement conditions.

Automotive Catalyst Recycling

The X-5 is also used by recyclers to measure precious metals in catalytic converters, including:

• Platinum
• Palladium
• Rhodium

These measurements help determine catalyst value prior to refining.

Important Limitations of the X-5

The SciAps X-5 is optimized for transition metals and heavier elements and is not designed to measure light elements such as: Magnesium (Mg), Aluminum (Al), Silicon (Si), Sulfur (S), Phosphorus (P).

Users who require light element capability for aluminum alloys or advanced PMI should consider higher-performance models such as:

• SciAps X-200
• SciAps X-505
• SciAps X-550
• SciAps X-555

How does the SciAps X-5 compare to other SciAps models?

Model	Tube Voltage	Detector	Light Elements	Typical Use
X-5	40 kV	entry SDD	No	Precious metals, Scrap, PMI, Manufacturing
X-505	50 kV	SDD	Yes	Precious metals, Scrap, PMI, Manufacturing, Soils, Mining, RoHS
X-550	50 kV	SDD	Yes	Precious metals, Scrap, PMI, Manufacturing, Soils, Mining, RoHS
X-555	55 kV	Large Area SDD	Yes	Mining, Soil, & REE

Key Specifications

Typical specifications for the SciAps X-5 include:

• Detector: Silicon drift or PIN detector depending on configuration
• X-ray tube: Up to 40 kV excitation
• Weight: Under 3 lbs (≈1.3 kg)
• Operating system: Android platform
• Connectivity: Wi-Fi, Bluetooth, USB
• Cameras: Dual cameras for sample alignment and documentation

The instrument is designed for fast, reliable elemental analysis in field environments.

Parts & Accessories for the SciAps X-5

This collection may include:

• SciAps X-5 replacement Kapton measurement windows
• SciAps X-5 replacement batteries

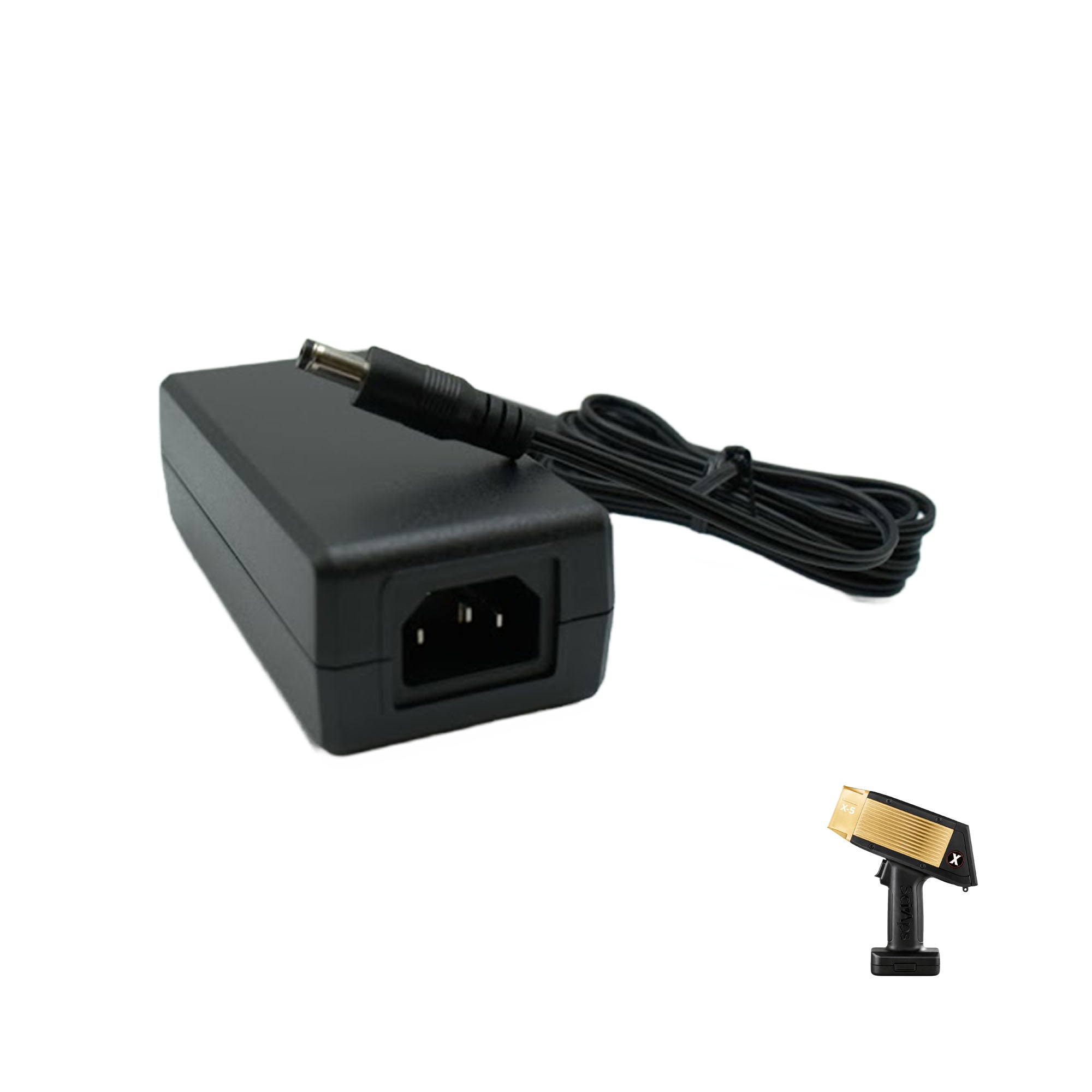

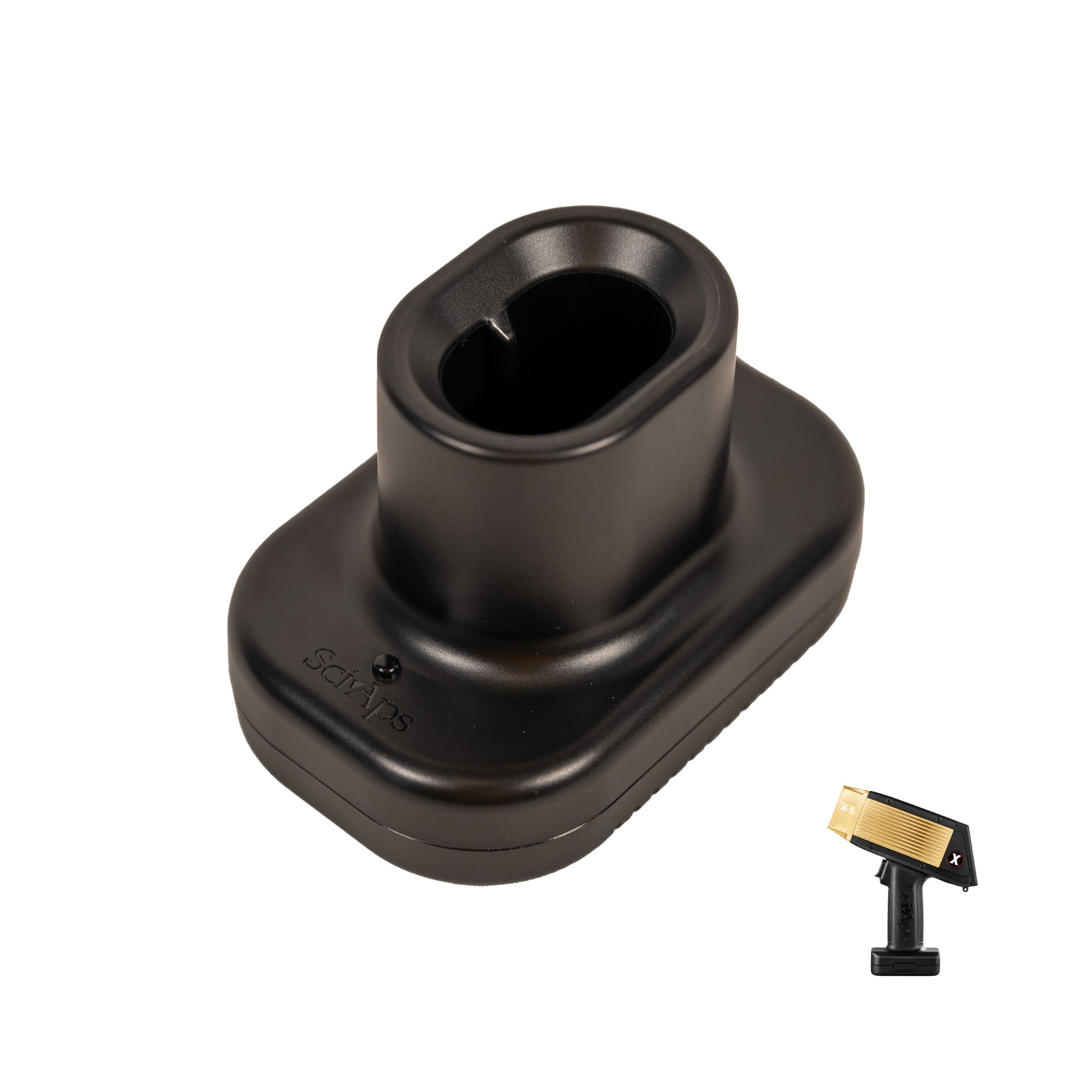

• SciAps X-5 battery charger kit

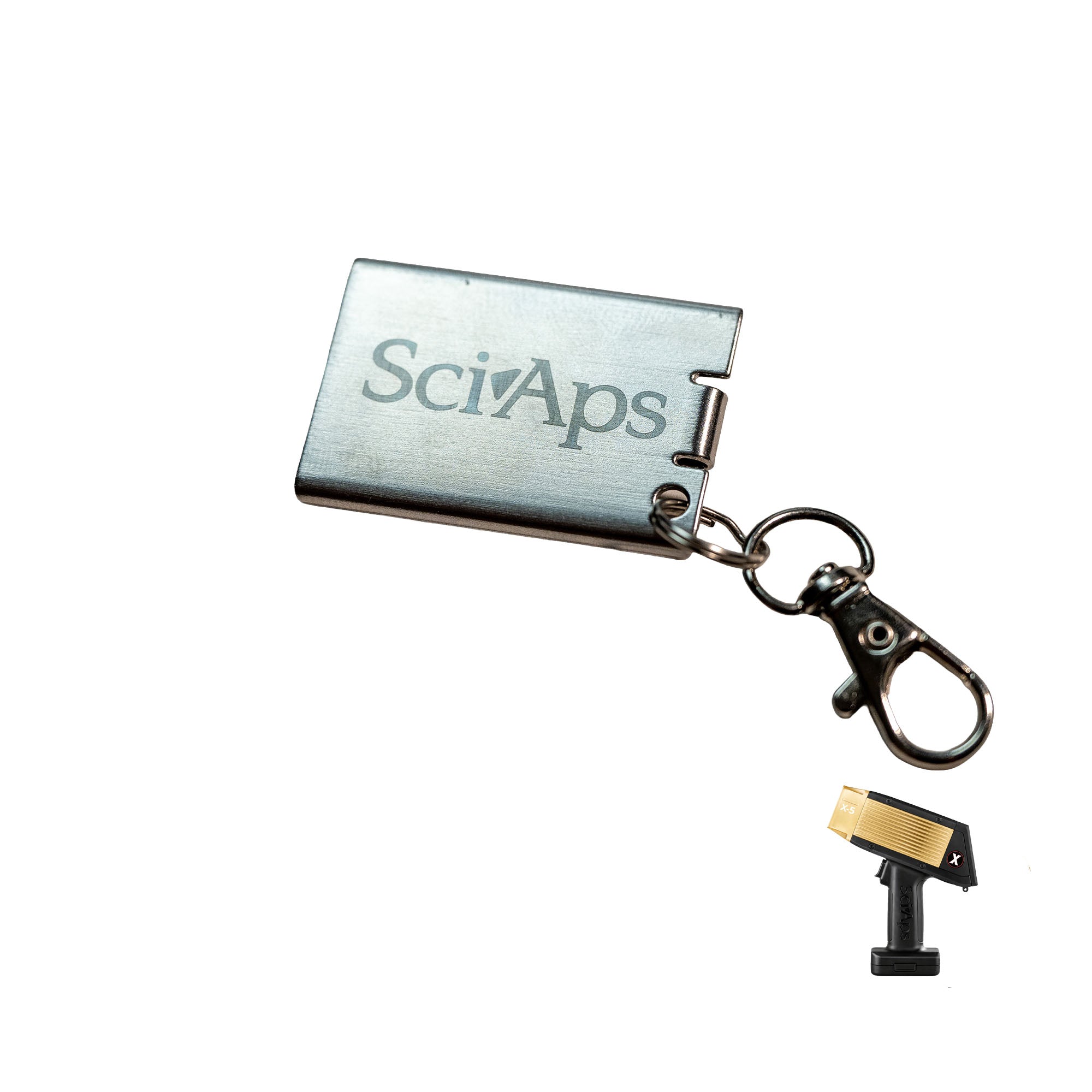

• 316 stainless steel calibration standard for SciAps X-5

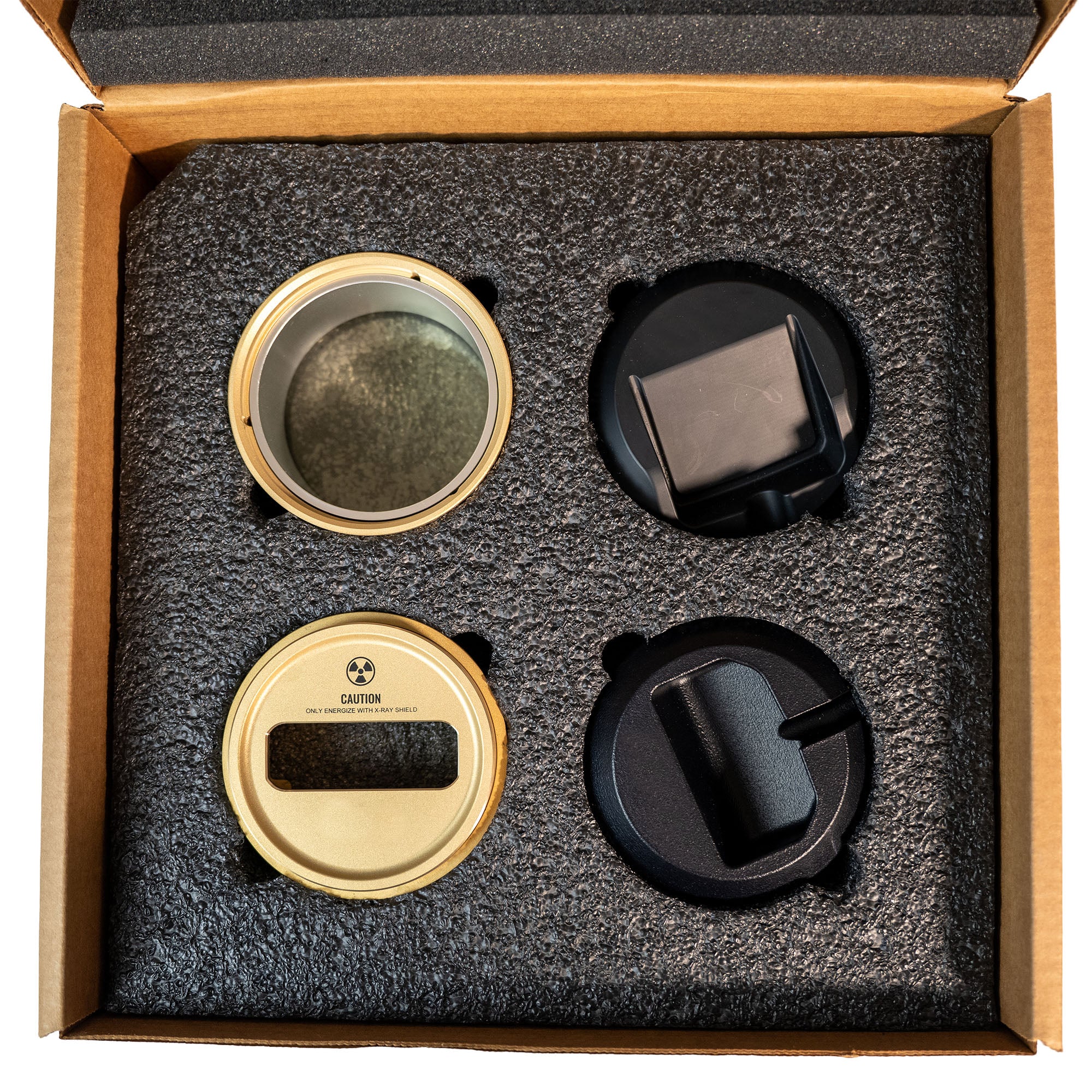

• SciAps X-5 Portable Test Stand

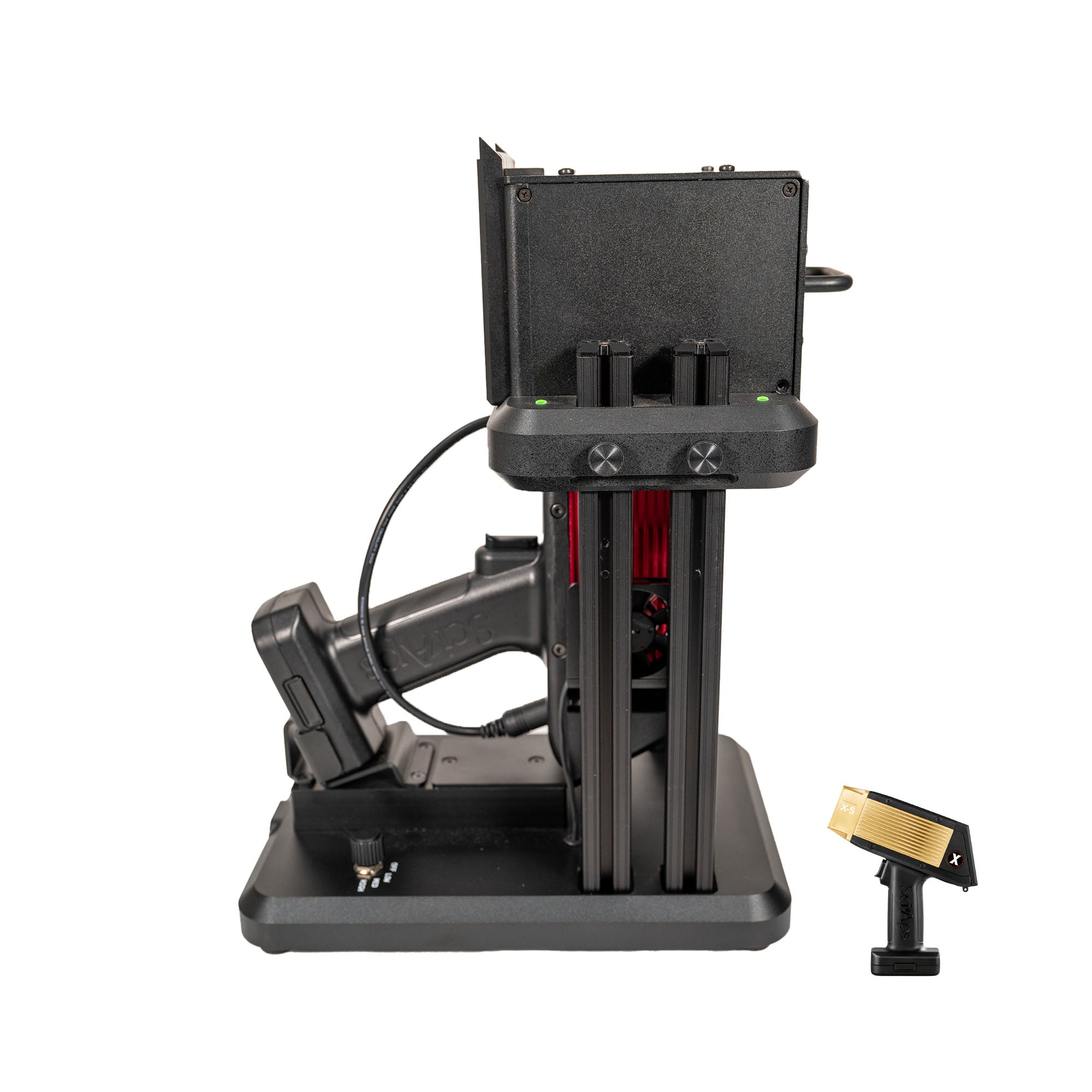

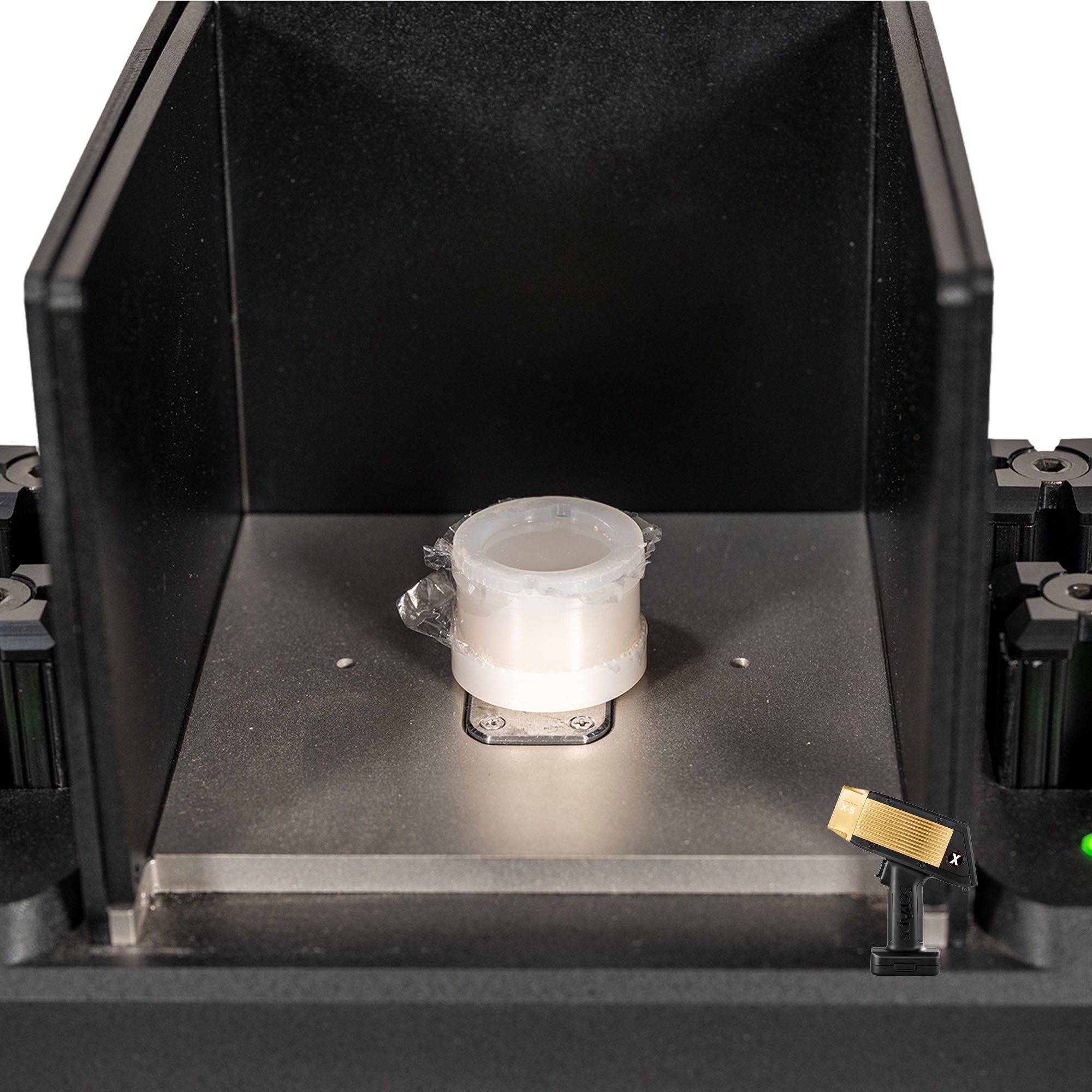

• SciAps X-5 Desktop Test Stand
• 18K Yellow Gold Certified Reference Material
• 18K White Gold Certified Reference Material
• 14k Rose Gold Certified Reference Material

Need Help Choosing the Right Handheld XRF?

Choosing the right handheld XRF analyzer depends on your application, required elements, and budget.

Browse our selection of handheld XRF analyzers across industries:

• Scrap metal recycling
• Precious metals buying
• Manufacturing QA/QC
• Environmental testing
• Mining and exploration

Our team can help you determine whether the SciAps X-5 or another handheld XRF model is the best fit for your application.

📞 Call: 919-400-1216

✉️ Email: sales@alloygeek.com

Frequently Asked Questions About the SciAps X-5 Handheld XRF

What is the SciAps X-5 handheld XRF used for?

The SciAps X-5 handheld XRF analyzer is commonly used for:

• precious metals testing (gold, silver, platinum)
• scrap metal sorting
• alloy verification
• PMI testing in manufacturing
• environmental heavy metal screening.

It provides rapid elemental analysis using X-ray fluorescence technology.

How much does a SciAps X-5 handheld XRF cost?

Pricing for the SciAps X-5 varies depending on configuration and included applications.

Typical packages include:

• precious metals calibration
• alloy analysis software
• accessories such as batteries and chargers.

Contact Alloy Geek for current pricing and availability.

Can the SciAps X-5 test gold and silver?

Yes. The X-5 is widely used for gold, silver, platinum, and palladium testing in jewelry and precious metals buying. The analyzer can identify:

• gold karat content
• plating alerts
• elemental composition of precious metals.

What elements can the SciAps X-5 measure?

The elements measurable by the SciAps X-5 handheld XRF analyzer depend on the installed application mode and instrument configuration. Below are typical elemental ranges for the most common modes.

Precious Metals Mode: Au, Ag, Ir, Pt, Pd, Ru, Rh, Cu, Ti, V, Cr, Mn, Fe, Co, Ni, Zn, W, Pb, Bi, Zr, Mo, Cd, Sn, Sb

This mode is optimized for gold, silver, platinum, and palladium testing, commonly used by jewelers, refiners, and precious metals buyers.

General Metals Mode: Ti, V, Cr, Mn, Fe, Co, Ni, Cu, Zn, W, Ta, Hf, Re, Se, Au, Ag, Pb, Bi, Zr, Mo, Pd, Cd, Sn, Sb

This mode is commonly used for alloy identification, scrap metal sorting, and PMI testing.

Actual detectable elements may vary depending on calibration, measurement conditions, and the specific configuration of the instrument.

What elements cannot be measured with the X-5?

The X-5 does not measure light elements, including Magnesium (Mg), Aluminum (Al), Silicon (Si), Sulfur (S), Phosphorus (P).

Users requiring those elements should consider higher-performance models like the SciAps X-200, X-505, or X-550.

Is the SciAps X-5 good for scrap metal recycling?

Yes. The X-5 is commonly used for basic scrap sorting and PMI applications, including identification of stainless steels, nickel alloys, and copper alloys.

Is the SciAps X-5 portable?

Yes. The analyzer weighs under 3 pounds, making it one of the lightest handheld XRF analyzers available.

Is the SciAps X-5 good for aluminum alloy testing?

The SciAps X-5 is not designed for aluminum alloy analysis because it does not measure light elements such as Mg, Al, Si, S, or P. Users who need aluminum alloy sorting should consider higher-performance analyzers like the SciAps X-200.

Documents

• SciAps X-5 Alloy Specifications
• SciAps X-5 Precious Metals Specifications
