Description

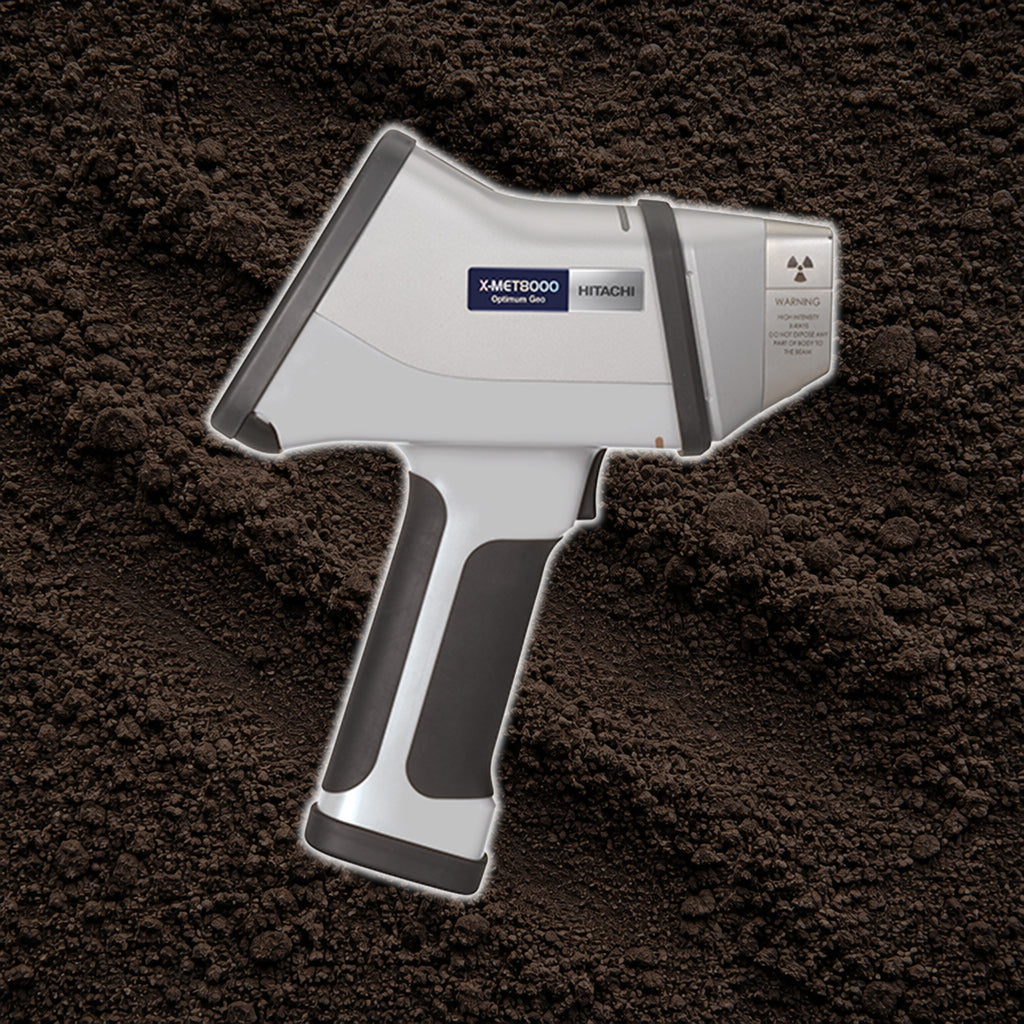

Hitachi X-MET8000 Optimum Geo Handheld XRF for Soil Contamination Testing
The Hitachi X-MET8000 Optimum Geo handheld XRF analyzer is a portable X-ray fluorescence instrument designed for environmental soil screening and field-based contamination analysis. It allows environmental professionals to quickly measure elemental concentrations directly in the field without waiting for laboratory results.
The Optimum Geo model provides fast and reliable measurement of geochemical samples and contaminated soils using a dedicated soil calibration capable of measuring dozens of elements simultaneously. This enables high-volume environmental screening programs and helps guide sampling decisions during site assessments and remediation projects.
Hitachi’s BOOST technology improves signal processing and enables the low limits of detection required for environmental contaminants, including elements regulated under US EPA Method 6200 and RCRA hazardous metals.
The instrument also includes integrated GPS, allowing results to be linked with geolocation data for contamination mapping and environmental reporting.
Want to compare other soil testing handheld XRF analyzers? Check out our complete collection of the Best Handheld XRF Analyzers for Soil Testing here.
Key Benefits for Soil Testing
- Designed for rapid environmental soil and sediment screening
- Measures up to 40 elements simultaneously with soil calibration
- BOOST signal processing improves sensitivity and detection limits
- Fast non-destructive soil analysis with results available in seconds
- Integrated GPS for geolocated contamination mapping
- Rugged design suitable for demanding environmental field conditions
Typical Applications
- Soil contamination screening
- Environmental site assessments and due diligence
- Brownfield investigation and remediation projects
- Screening soils for heavy metal contamination
- Mining and geochemical field investigations
- Environmental compliance screening using EPA Method 6200
Typical Soil Contaminant Elements
Handheld XRF analyzers such as the X-MET8000 Geo are commonly used to screen soils for elements including:
- Pb, As, Cd, Hg, Cr, Cu, Zn, Ni, Sb, Sn, Ba
These elements are frequently associated with industrial contamination, mining activity, historical manufacturing sites, and urban soil pollution.
RCRA Metals Screening
The X-MET8000 Geo is commonly used to screen soils for RCRA hazardous metals, including:
- As, Ba, Cd, Cr, Pb, Hg, Se, Ag
Rapid field screening helps environmental professionals identify contaminated areas and prioritize samples for laboratory confirmation.
Hardware & Technical Specifications
| Specification | Details |
|---|---|
| X-ray Tube | 45 kV X-ray tube |
| Detector | 10 mm² silicon drift detector (SDD) with BOOST technology |
| Analytical Range | Mg-U, See Mode for Specific Elements |
| Element Capacity | Up to 40 elements simultaneously |
| Weight | ~1.5 kg with battery |
| Battery Life | ~10 hours typical operation |
| Environmental Rating | IP54 dust and splash protection |
| Ruggedness | MIL-STD-810G tested |
| Connectivity | Wi-Fi, Bluetooth, USB |
| Data Export | CSV and tamper-proof PDF reporting |
| Filter Wheel | 6-Position Filter Wheel |
| Rare Earth Elements | No |
| Window Type | Shield Window |
The X-MET8000 Geo platform is designed for rugged field operation while delivering fast environmental screening results.
What’s Included
- Hitachi X-MET8000 Optimum Geo handheld XRF analyzer
- x2 Rechargeable Li-ion batteries
- Battery Charger
- AC Power Adapter
- Alloy Geek virtual installation and training
Final configuration details are confirmed during the quote process to ensure the analyzer matches your specific soil testing requirements.
Optional Accessories
Hitachi provides a range of accessories designed to support environmental testing and field deployment.
Common accessories include:
- Benchtop stand for sample cups and bagged samples
- Bipod for longer measurement times
- X-MET pole for hard-to-reach analysis areas
- Radiation shield and powder analysis stand
- Holster and belt for hands-free transport
- Spare Measurement Windows
- Portable Light Stand and Safety Shield Kit
Frequently Asked Questions
Can the X-MET8000 Optimum Geo detect lead, arsenic, or cadmium contamination in soils?
Yes. The X-MET8000 Optimum Geo is designed for environmental soil screening and can detect heavy metals including lead, arsenic, and cadmium depending on soil matrix and measurement conditions.
Can the X-MET8000 Optimum Geo screen soils for RCRA metals?
Yes. Handheld XRF analyzers such as the X-MET8000 Optimum Geo are widely used to screen soils for RCRA hazardous metals including arsenic, barium, cadmium, chromium, lead, mercury, selenium, and silver.
Does soil testing require sample preparation?
Soils can often be analyzed directly in the field. For improved repeatability and lower detection limits, many users prepare samples using XRF sample cups with film or the bipod stand.
