Vanta Core Handheld XRF Analyzer

Premium performance. Rugged design. Fast, accurate elemental insights.

The Vanta Core brings advanced X-ray fluorescence technology to your fingertips—ideal for on‑site alloy sorting, metal identification, regulatory screening, mining, geological sampling, and more. With its light weight, intuitive interface, and scientific accuracy, the Vanta Core is engineered for professionals who demand dependable elemental analysis wherever work takes them.

Technical Specifications

Feature	Specification
X-ray Tube	4-watt X-ray tube; anode: Core (Ag): 8-50 KV; Core (Rh): 8-40 KV
Detector	Silicon Drift Detector (SDD)
Energy Range	40-50 keV max (depending on tube)
Operating Temperature	–10 °C to +50 °C
Drop Resistance	Survives 4 ft / 1.2 m (MIL‑STD 810G)
Ingress Protection	IP54 (dust/splash resistant)
Weight	~1.2 kg (2.6 lb) with battery
Battery Life	~8 hours (hot-swappable Li‑ion)
Processor & Storage	Quad‑core CPU + 8 GB RAM, 32 GB storage
Display	5″ sunlight‑readable touchscreen
Connectivity	Bluetooth, Wi‑Fi, USB-C
Safety Features	Two-hand trigger, proximity sensor, locking software
Software Modes	Alloy Plus, Precious Metals, RoHS Plus, GeoChem (1 beam), GeoChem (2 beam), GeoChem (3 beam), Car Catalyst, Coating, Lead Paint, Soil

Applications

Scrap & Metal Recycling – Quickly and accurately identify stainless steel grades, tool steels, aluminum alloys, copper, brass, nickel alloys and more.
Precious Metals & Jewelry – Verify karat and fineness of gold, silver, platinum, palladium.
RoHS/RoHS+ Compliance – Ensure electronic components meet Pb, Cd, Hg, Cr⁶⁺, Br limits.
Mining / Geochemical Sampling – Portable GeoChem modes for assaying Cu, Ni, Co, Fe, and trace elements on the go.
Coatings & Plating Thickness – Non-destructive thickness measurement for precious platings and corrosion coatings.
Lead Paint Screening – Portable detection of lead-based coatings in buildings and structures.
Soil & Environmental Analysis – Detect heavy metals (Pb, Cr, As, Cd) in soil samples.

What’s Included

Each Vanta Core ships ready for field use in a durable foam-padded hard case:

Vanta Core XRF analyzer
Hot-swappable Li‑ion battery (spare included)
AC power adapter (region-specific)
USB-C data cable
XRF window films
microSD card preloaded with software & docs
User guide and calibration certificate
Wrist strap & protective holster

Optional Accessories

Customize your kit based on your fieldwork needs:

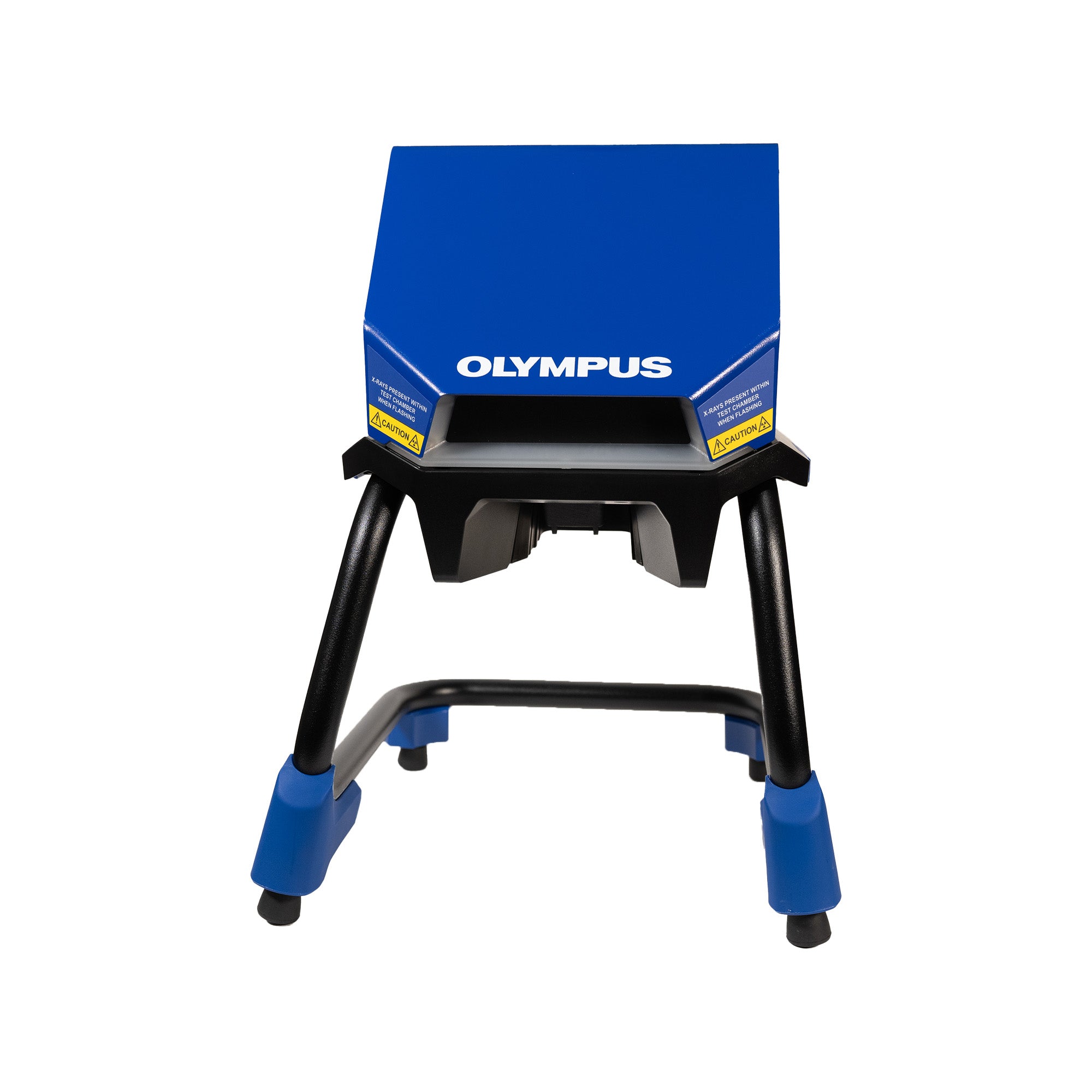

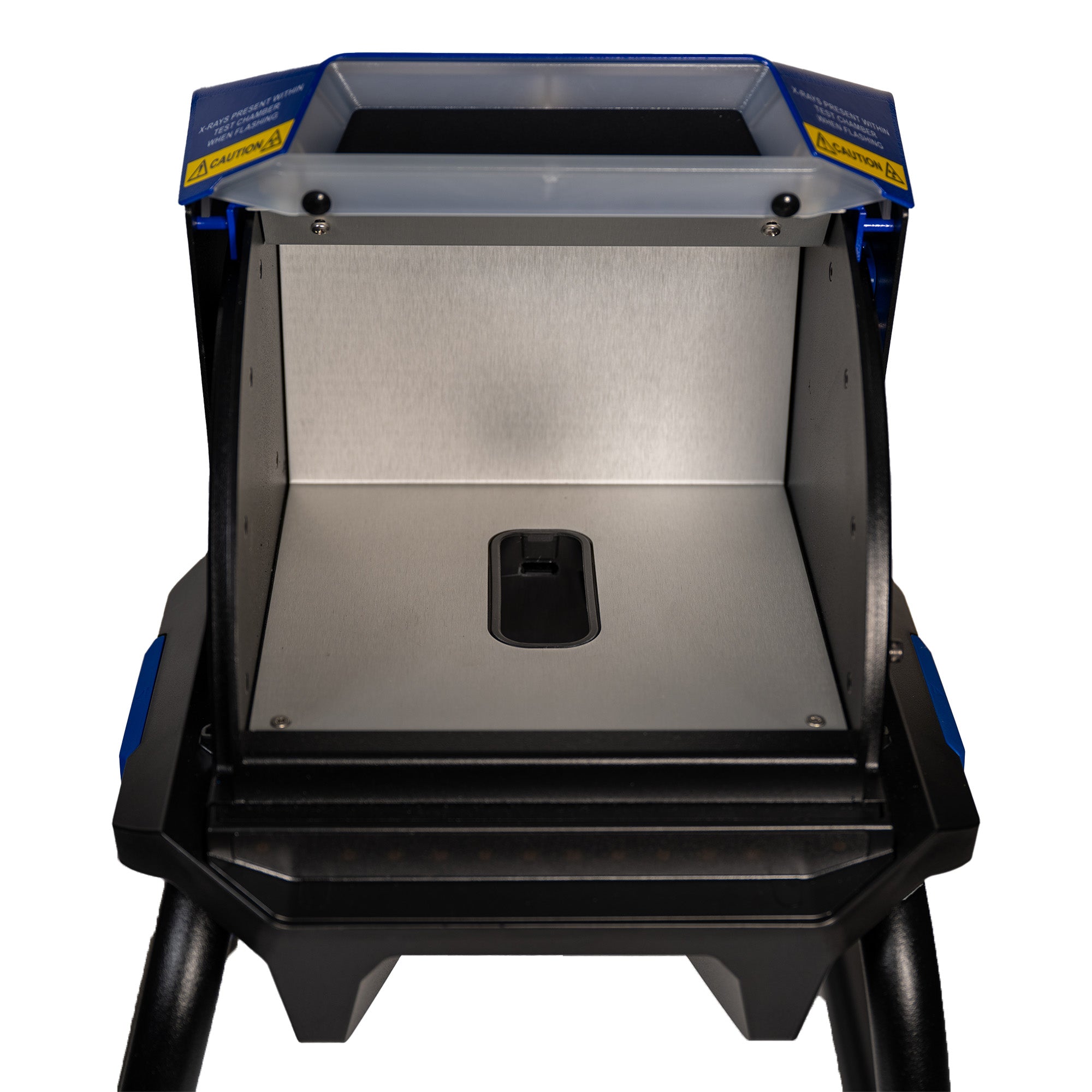

Portable Benchtop Workstation – Includes safety interlock & integrated shielding.
Field Stand / Soil Foot – Ideal for consistent sample positioning & soil analysis.
Weld Mask & Protective Shields – For high-temp or splatter-prone situations.
Wireless Adapters – Bluetooth/Wi‑Fi USB dongles for seamless data transfer.
Spare Battery Packs – Maximize uptime during long shifts.
Sample Prep Kits & Grinder – Enhance measurement accuracy on irregular surfaces.
