Description
13-8 PH Martensitic Stainless Steel Certified Reference Material (CRM)
This 13-8PH certified reference material is a martensitic stainless steel alloy widely used as a standard for calibrating and verifying your spectrometer (XRF, ICP-OES, Spark-OES, etc.). This material is precisely manufactured and certified to have traceable measurements and specified impurity levels, ensuring reliable results for laboratories performing calibration, quality control, and materials testing.
Certified PH13-8Mo Chemical Composition:
| Element | Composition |
| Fe | Balance |
| Al | 1.03% |
| C | 0.032% |
| Co | 0.078% |
| Cr | 12.69% |
| Cu | 0.017% |
| Mn | 0.052% |
| Mo | 2.23% |
| N | 0.0037% |
| Nb | 0.005% |
| Ni | 8.29% |
| P | 0.008% |
| S | 0.0014% |
| Si | 0.039% |
| Ti | 0.016% |
| V | 0.017% |
| W | 0.012% |
PH13-8Mo Industry Chemical Range:
| Element | Composition |
| Fe | Balance |
| Cr | 12.25-13.25% |
| Ni | 7.5-8.5% |
| Mo | 2-2.5% |
| Al | 0.9-1.35% |
| Mn | 0.10% |
| Si | 0.10% |
| C | 0.050% |
| N | 0.010% |
| P | 0.010% |
| S | 0.0080% |
Other Names:
Stainless Steel 13-8, 13-8 PH, 13-8PH, UNS S13800, AISI 13-8, EN X3CrNiMoAl13-8-2, 13-8Mo, 13-8 Precipitation Hardened Stainless Steel, AISI 632, AMS 5629, AMS 5864, ASTM A564 XM-13, ASTM A693 XM-13, ASTM A705 XM-13, DIN 1.4534
Available material forms:
- XRF: ~1/8" thick disc, ~1.5" diameter
- OES: ~0.75" thick disc, ~1.5" diameter

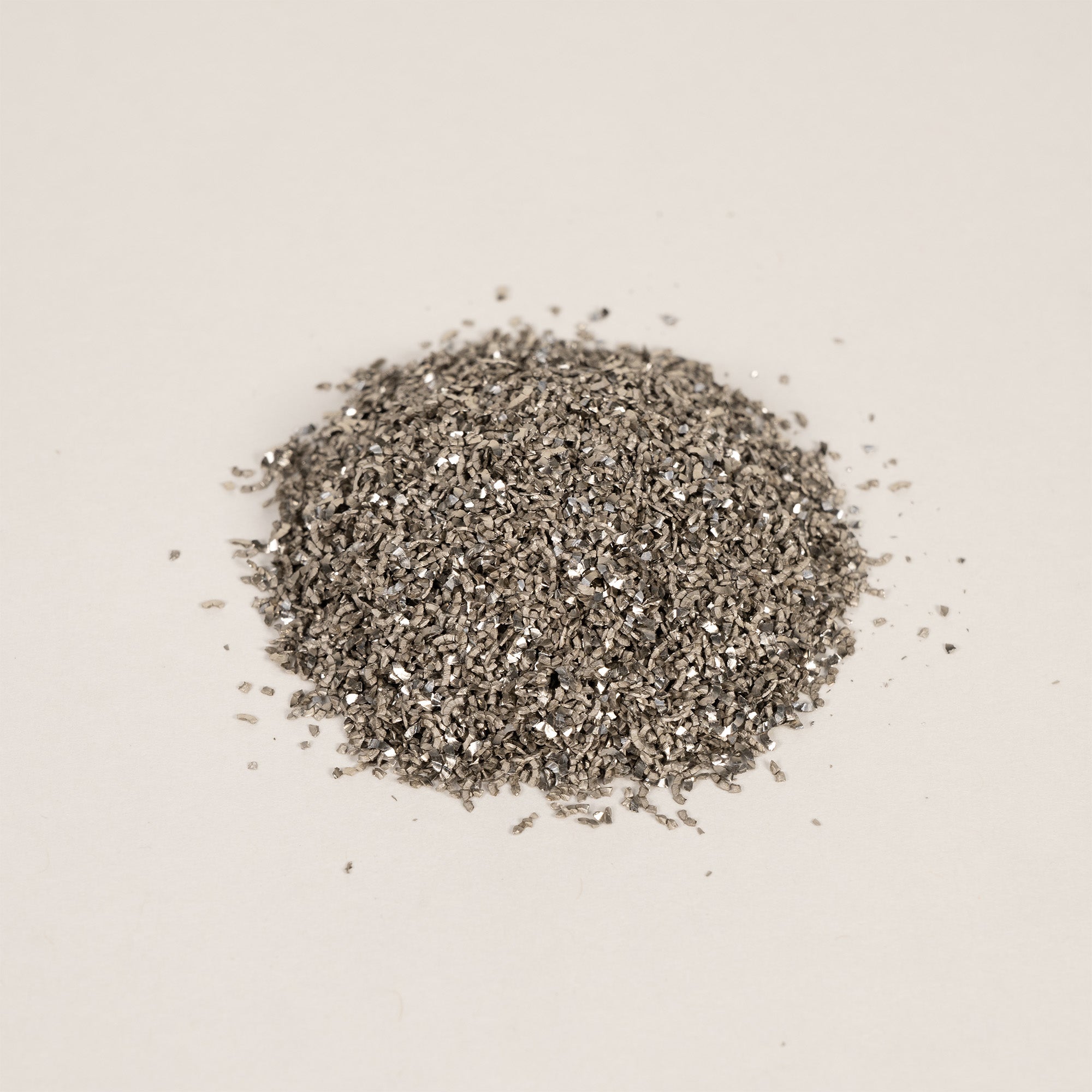

- Chips: 50g of chips
Reference Material (RM):
A reference material, or RM, is a material with a known grade and/or chemical composition that is typically used for alloy or grade identification.
Certified Reference Material (CRM):
A certified reference material, or CRM, is a material that has been thoroughly analyzed and characterized using multiple validated methods to determine its chemical composition. The results of these analyses are then used to establish certified values, along with associated uncertainties. CRMs are produced and certified by accredited organizations or laboratories following internationally recognized standards, such as ISO Guide 34 (ISO 17034).
Please Contact Us if you would like to know the specific dimensions of a sample.
