SciAps X-505 Handheld XRF Analyzers, Parts, & Accessories Collection

The SciAps X-505 Handheld XRF Analyzer is a high-performance, portable X-ray fluorescence instrument engineered for fast, reliable elemental analysis in demanding field and industrial environments.

This collection brings together the X-505 analyzer along with the parts, consumables, and accessories required to operate it reliably across scrap, environmental, mining, and compliance.

Positioned above entry-level systems, the X-505 delivers strong analytical performance at 50 kV in one of the lightest and most ergonomic handheld XRF platforms available, making it well suited for extended daily use.

Why Choose the SciAps X-505 Handheld XRF Analyzer

The SciAps X-505 is designed to balance speed, sensitivity, and portability in a compact handheld form factor. Powered by a 5-watt X-ray tube operating up to 50 kV and a high-performance silicon drift detector (SDD), the X-505 provides excellent elemental sensitivity while remaining comfortable to use throughout long field days.

Key advantages include fast test times, intuitive touchscreen operation, excellent thermal management, and flexible application modes that support metals, soils, mining, and regulatory screening. Wireless connectivity and onboard data handling simplify documentation and reporting in the field.

Applications & Use Cases

Alloy App for Scrap Metal Recycling & Alloy Sorting

The X-505 is commonly used in scrap yards and recycling facilities to identify and sort ferrous and non-ferrous alloys, including stainless steels, copper alloys, aluminum alloys, and nickel-based materials. Its fast response and lightweight design allow operators to make real-time sorting decisions without slowing operations.

• Beam 1 (40 kV) Ti, V, Cr, Mn, Fe, Co, Ni, Cu, Zn, Se, Y, Zr, Nb, Mo, W, Ta, Hf, Re, Au, Pb, Bi, Ru, Pd, Ag, Cd, Sn, Sb
• Beam 2 (10 kV) Mg, Al, Si, P, S

Soils & Environmental Analysis

For environmental professionals, the X-505 enables rapid, in-field soil contamination screening during site assessments, brownfield projects, and remediation work. It is commonly used to identify elements such as lead (Pb), arsenic (As), chromium (Cr), cadmium (Cd), copper (Cu), and zinc (Zn) before committing samples to laboratory analysis.

For soils and fine materials, sample cups and XRF film are recommended to improve repeatability and protect the detector window.

• Beam 1 (40 kV) Ti, V, Cr, Mn, Fe, Co, Ni, Cu, Zn, As, Se, Sr, Rb, Zr, Mo, W, Tl, Hg, Pb, Bi
• Beam 2 (10 kV) Mg, Al, Si, P, S
• Beam 3 (50 kV) Ag, Cd, Sn, Sb, Ba

Mining, Geochemistry & Exploration

The X-505 supports geochemical field screening of rocks, soils, and mineralized materials. It is frequently used to identify pathfinder elements and guide sampling strategies during exploration and evaluation programs where rapid feedback is critical.

• Beam 1 (40 kV) Ti, V, Cr, Mn, Fe, Co, Ni, Cu, Zn, As, Se, Rb, Sr, Zr, Nb, Mo, Ag, Sn, Sb, Ba, Ta, W, Au, Hg, Pb, Bi, U
• Beam 2 (10 kV) Mg, Al, Si, P, S, K, Ca

RoHS & Regulatory Compliance Testing

Manufacturers and quality teams use the X-505 for non-destructive screening of products and materials for restricted substances. It is commonly applied in RoHS, Halogen-Free, CPSIA, and related compliance jobs.

• Typical RoHS Elements: Pb, Cd, Hg, Cr, Br, Cl, As, Se, Sb, Sn, Ba, Zn, Ni, Cu, Fe

Precious Metals & Industrial Materials

The X-505 is also used for precious metal verification in jewelry, industrial components, and mixed metal streams. Handheld XRF allows fast, non-destructive confirmation of gold, silver, and related elements without damaging the item.

• Beam 1 (40 kV) Ti, Cr, Mn, Fe, Co, Ni, Cu, Zn, Ga, W, Au, Ge, Ir, Pt, Pb, Bi, Zr, Mo, Ru, Rh, Pd, Ag, Cd, In, Sn, Sb

General Analytical & Custom Applications

For analytical needs that fall outside standard alloy, soil, mining, or polymer work, the SciAps X-505 can be configured with the Empirical App. This option allows users to define custom beam conditions, select specific elements of interest, and build application-specific calibrations tailored to unique materials or proprietary requirements.

The Empirical App is commonly used when standard factory modes are not sufficient and maximum flexibility is required for specialized analytical tasks.

Element availability depends on application mode, calibration, and beam configuration. Not all elements are available simultaneously. If you require specific elements or non-standard combinations, custom configurations may be available upon request.

Complete X-505 Accessories & Consumables Ecosystem

Accurate handheld XRF analysis depends on having the right supporting components. This collection includes SciAps X-505-compatible accessories and consumables designed to support consistent performance and uninterrupted operation.

Typical accessories in this collection include:

• Rechargeable batteries and AC power adapters
• Battery chargers and jumper cables
• Replacement Measurement XRF Windows (Kapton or Prolene)
• Sample cups and holders for soils and powders

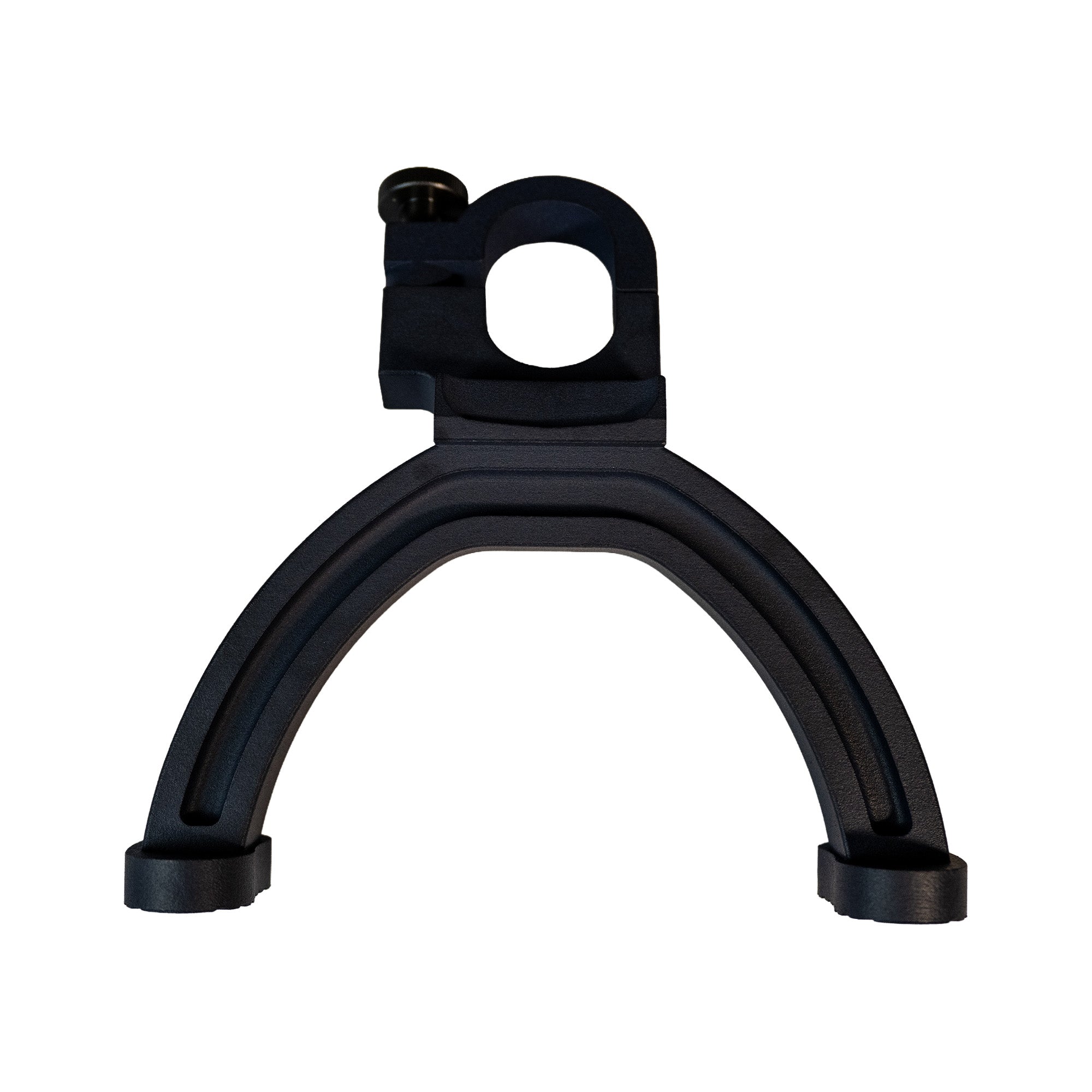

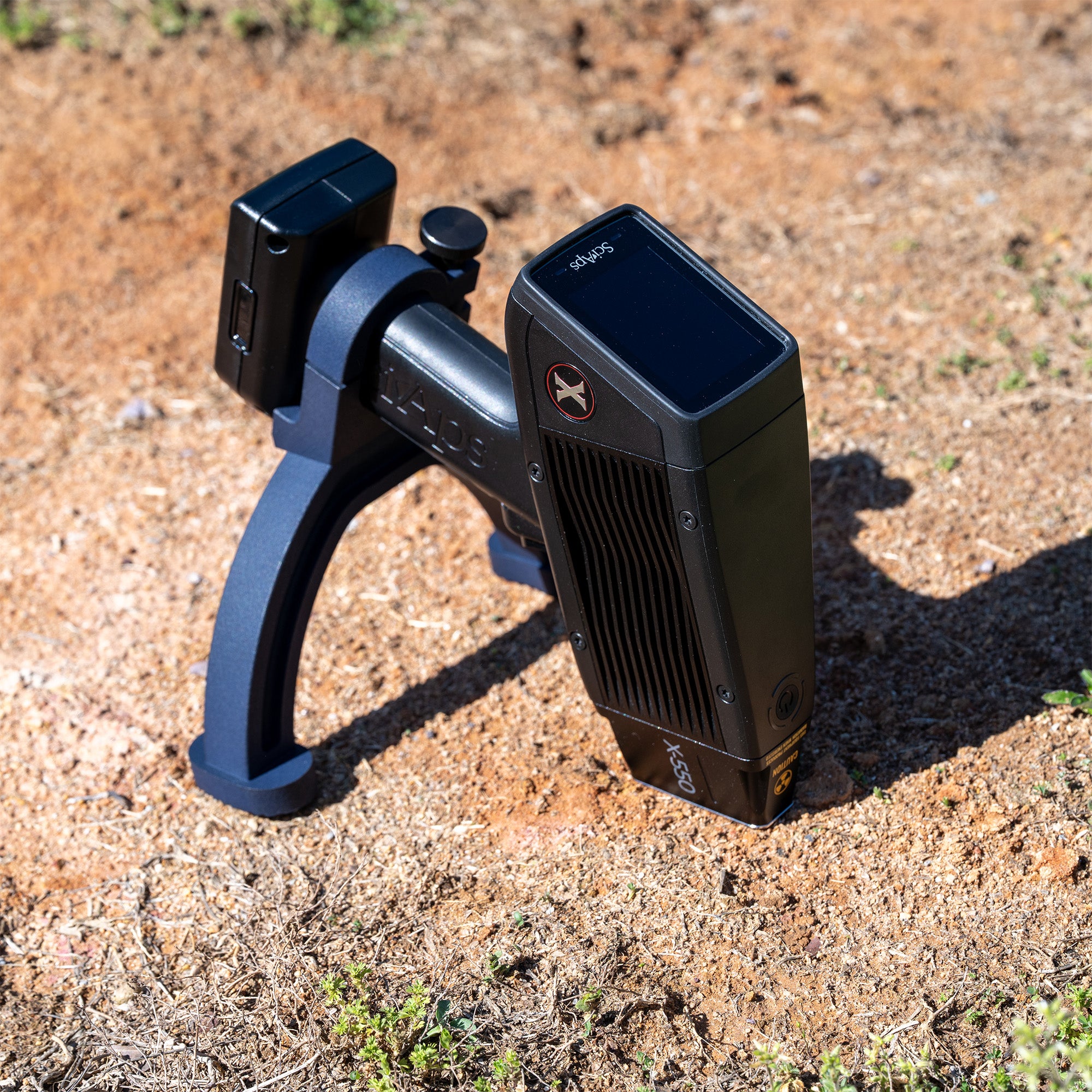

• Desktop test stands and soil foot accessories
• Carrying cases and field backpacks
• Calibration and verification accessories

Sourcing the analyzer and accessories together helps reduce downtime and maintain consistent analytical results.

Why Buy from Alloy Geek

Alloy Geek specializes exclusively in handheld analytical equipment and real-world testing. Rather than selling instruments in isolation, we curate complete XRF ecosystems—analyzers, accessories, consumables, and application support—so customers can deploy XRF with confidence from day one.

Our collections are built to help users get accurate results faster, reduce friction in the field, and scale analytical capability over time.

Frequently Asked Questions

What does a handheld XRF analyzer do?

A handheld XRF analyzer uses X-ray fluorescence to determine the elemental composition of a material. It provides fast, non-destructive chemical analysis directly at the point of testing.

What elements can the SciAps X-505 measure?

Depending on the application and calibration, the X-505 measures elements from magnesium (Mg) through uranium (U), covering most metals, soil contaminants, and regulated substances encountered in industrial and environmental work.

Is the SciAps X-505 suitable for field use?

Yes. The X-505 is designed for field operation with a lightweight housing, strong thermal management, rechargeable batteries, and wireless connectivity.

Does handheld XRF require sample preparation?

Solid metal testing usually requires little preparation. For soils, powders, or fine materials, sample cups with XRF film are recommended for consistency and detector protection.

Can the X-505 be used for compliance testing?

Yes. The X-505 is commonly used for RoHS and regulatory screening to identify restricted elements such as lead, cadmium, mercury, chromium, and bromine.

Explore the SciAps X-505 Collection

Browse the products in this collection to find the SciAps X-505 handheld XRF analyzer along with the accessories and consumables required to support reliable, repeatable analysis across scrap, environmental, mining, and compliance applications.
