SciAps X-50 Handheld XRF Analyzer for Alloy, Mining & Soil Analysis

The SciAps X-50 handheld XRF analyzer is a cost-effective, high-performance solution for real-time elemental analysis across alloy identification, mining exploration, soil testing, and precious metals verification. This collection brings together the X-50 analyzer, essential accessories, and consumables required to support these applications in the field and on the shop floor.

Built with a cost-effective 7 mm² detector platform and optimized X-ray tube configurations (40 kV and 50 kV), the X-50 delivers fast, precise results for transition and heavy metals, operating at speeds up to 2X higher than comparable systems. It is specifically designed for users who do not require light element detection (Mg, Al, Si, S, P), making it a strong value choice for many industrial and field applications.

Whether you're sorting scrap metal, analyzing ore samples, screening soil contamination, or verifying precious metals, the X-50 provides dependable performance with a streamlined feature set.

Applications of the SciAps X-50 Handheld XRF

Alloy Identification (PMI & Scrap Sorting)

The X-50 is widely used for positive material identification (PMI) and scrap sorting of transition and heavy metals. It delivers fast, reliable results for:

Stainless steels
High-temperature alloys
Copper and red metal alloys
Basic aluminum sorting is supported for:
- MLC classifications
- 2000 and 7000 series Aluminum Alloys

Elemental range for Alloy mode: Ti, V, Cr, Mn, Fe, Co, Ni, Cu, Zn, Se, Y, Zr, Nb, Mo, W, Ta, Hf, Re, Au, Pb, Bi, Ru, Pd, Ag, Cd, Sn, Sb

This makes the X-50 a strong fit for scrap yards, recyclers, and fabrication environments that need fast, repeatable alloy ID without light element requirements.

Mining & Exploration (Geochemical Analysis)

For mining and exploration workflows, the X-50 provides rapid geochemical analysis to support:

Mineral exploration
Pathfinder element detection
On-site decision making

Elemental Range (Mining Mode): K, Ca, Ti, V, Cr, Mn, Fe, Co, Ni, Cu, Zn, As, Se, Rb, Sr, Zr, Nb, Mo, Ag, Sn, Sb, S, Ta, W, Au, Hg, Pb, Bi, U

This enables field teams to quickly assess elemental composition without lab delays.

Soil & Environmental Testing

The X-50 is configured for soil and environmental screening, allowing users to detect heavy metals and contaminants directly in the field.

Common use cases include:

Site assessments
Environmental compliance testing
Contamination screening

Elemental Range (Soil Mode): Ti, V, Cr, Mn, Fe, Co, Ni, Cu, Zn, As, Se, Sr, Rb, Zr, Mo, W, Tl, Hg, Pb, Bi, Ag, Cd, Sn, Sb

This makes it a practical tool for environmental consultants and remediation professionals.

Precious Metals Analysis

The X-50 can be configured for precious metals analysis, supporting:

Jewelers
Gold and precious metals buyers
Precious Metals Refiners
Pawn Shops

Elemental range for Precious Metals mode: Au, Ag, Ti, Cr, Mn, Fe, Co, Ni, Cu, Zn, Ga, W, Ge, Ir, Pt, Pb, Bi, Zr, Mo, Ru, Rh, Pd, Cd, In, Sn, Sb

This mode is ideal for gold purity testing (karat verification), silver and bullion analysis, and identifying plated or counterfeit materials. Results are delivered in seconds, enabling fast, confident buy/sell decisions and efficient front-counter testing.

Analyzer Configurations

The SciAps X-50 is available in multiple application-specific configurations:

Alloy Sorting Analyzer
Precious Metals Analyzer
Mining & Exploration Configuration
Soil Contamination Configuration

Specification	Details
X-Ray Tube	40 kV Rh anode (alloy) or 50 kV tube (mining, soil, other applications)
Detector	7 mm² Silicon Drift Detector (SDD), 170 eV resolution at Mn K-alpha
Weight	3.1 lbs with battery
Dimensions	9.38 in x 11.15 in x 3.34 in (238 x 283 x 84 mm)
Calibration	Fundamental parameters with external 316 SS check standard
Power	Rechargeable Li-ion battery, AC power, hot-swap capability (60 sec max)
Display	3.5-inch color capacitive touchscreen
Processor	1.2 GHz quad-core ARM Cortex A53
Memory & Storage	2 GB RAM, 16 GB storage
Connectivity	WiFi, Bluetooth, USB
Pulse Processor	12-bit, 80 MSPS, 8K channel MCA
Operating Temp	10°F to 130°F (25% duty cycle)
X-Ray Filtering	Single filter (alloy/mining/PM), multiple filters (soil/RoHS)
Security	User-level password and admin controls
Regulatory	CE, RoHS, USFDA registered, Canada RED Act

Request a Quote for a customized configuration including more than one of these modes!

Accessories & Replacement Parts

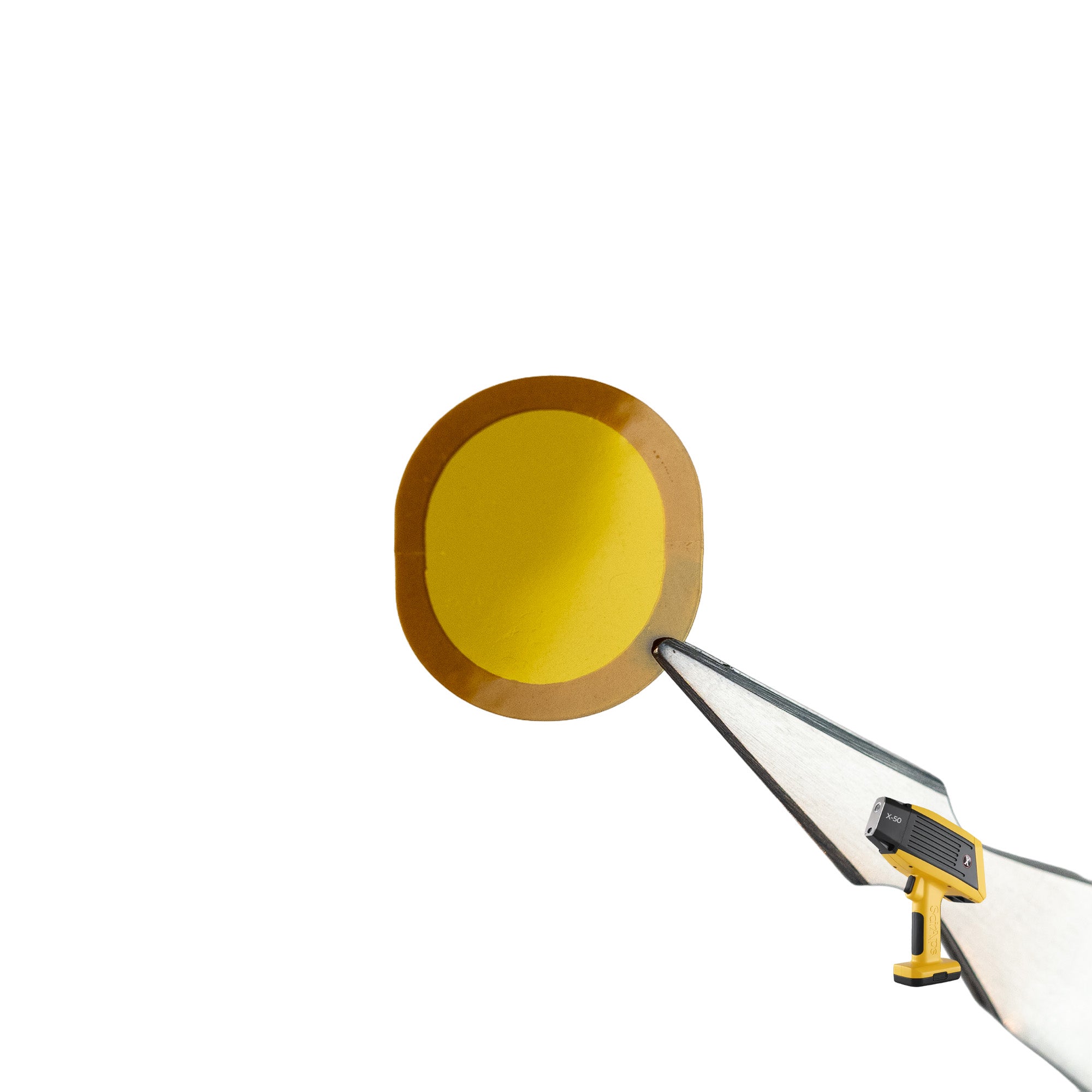

Measurement Windows

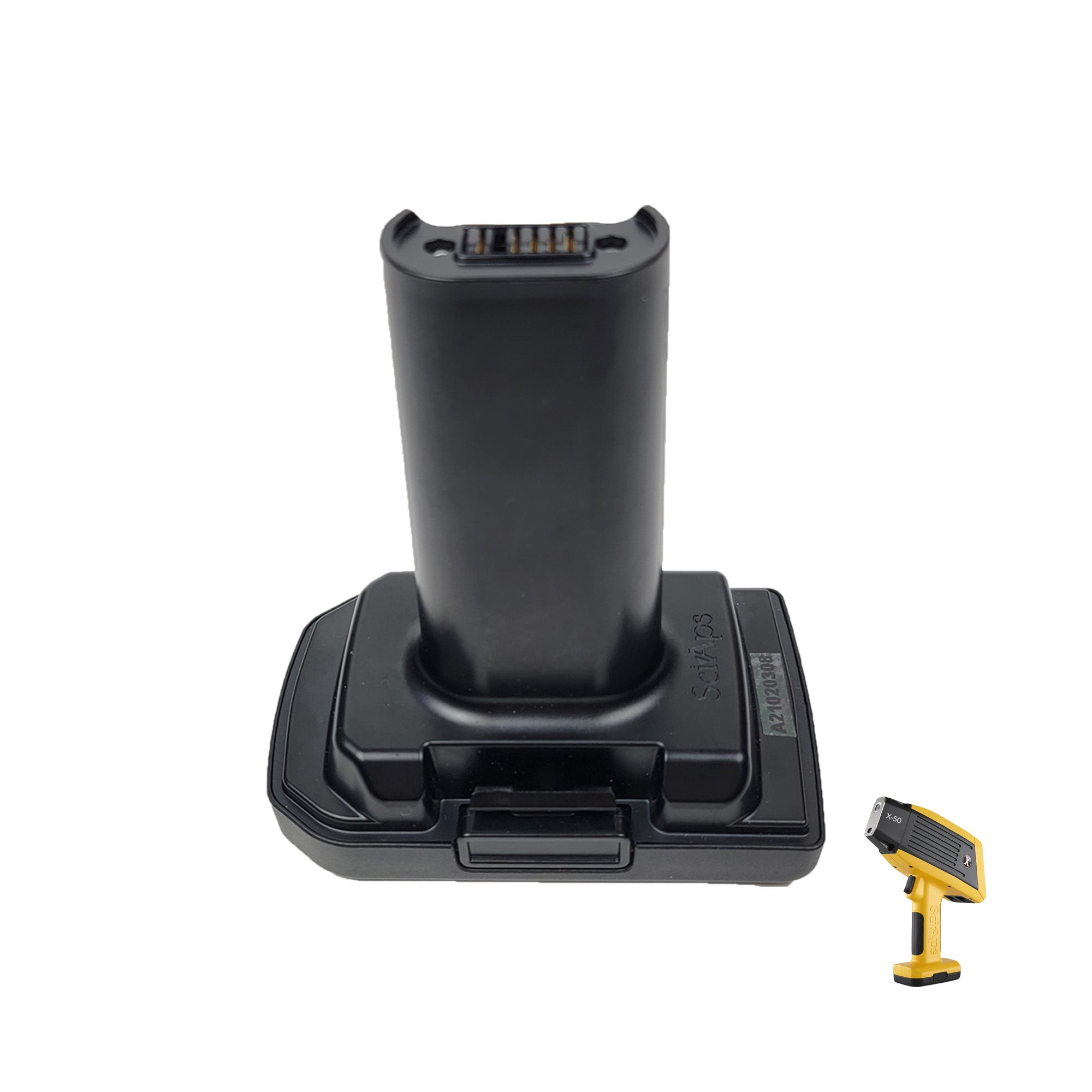

Batteries (Li-ion, hot-swappable)

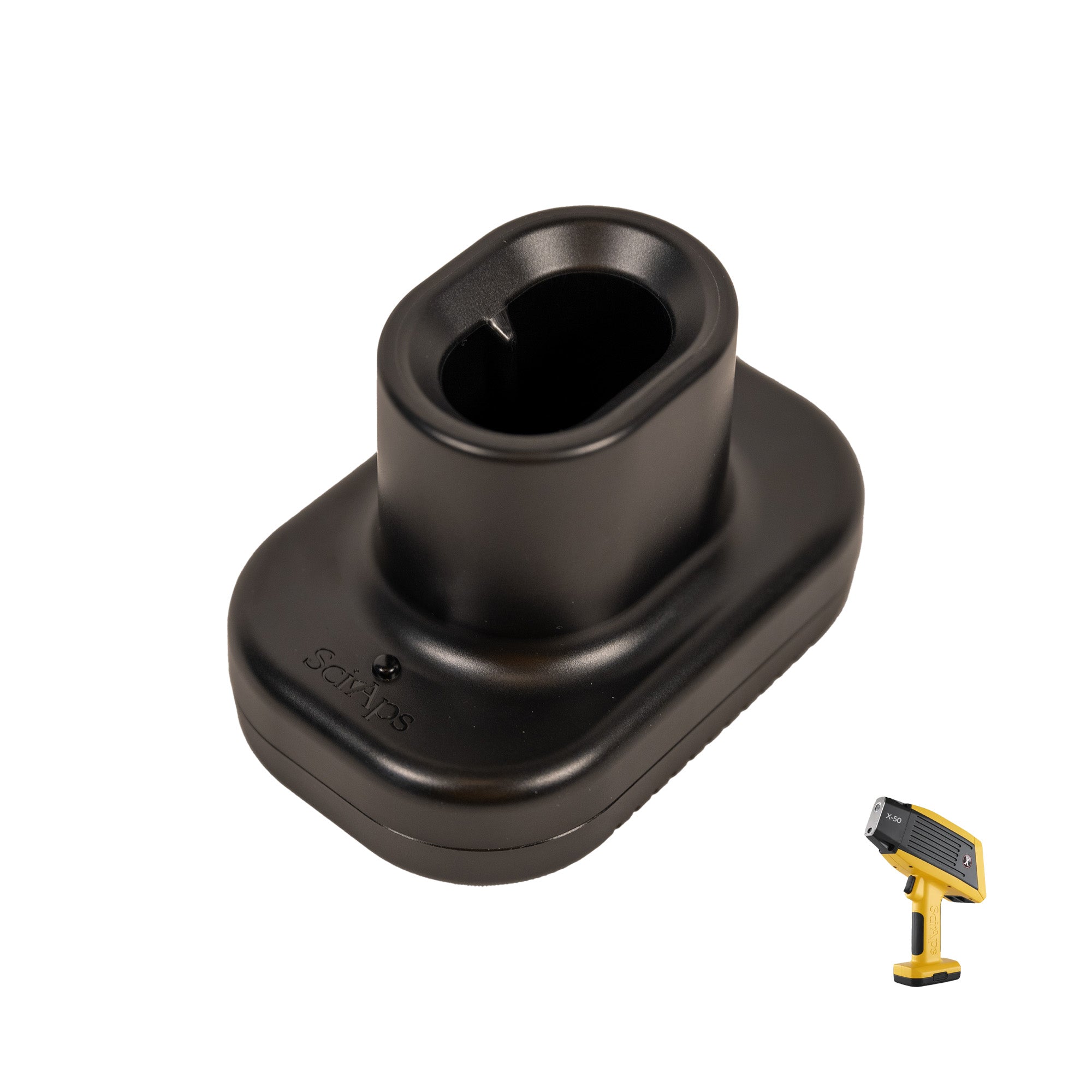

Battery Charger Kits

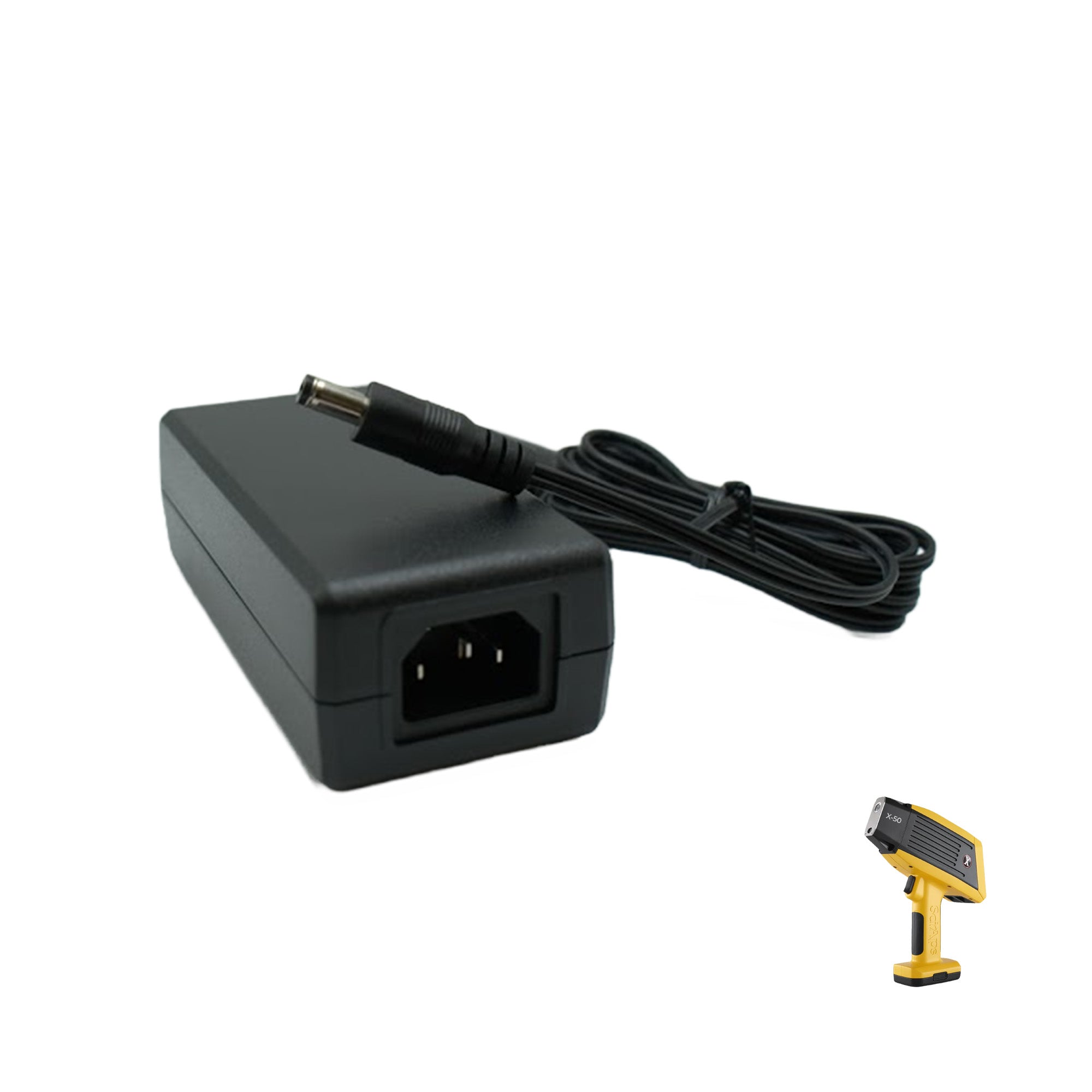

AC Power Adapters

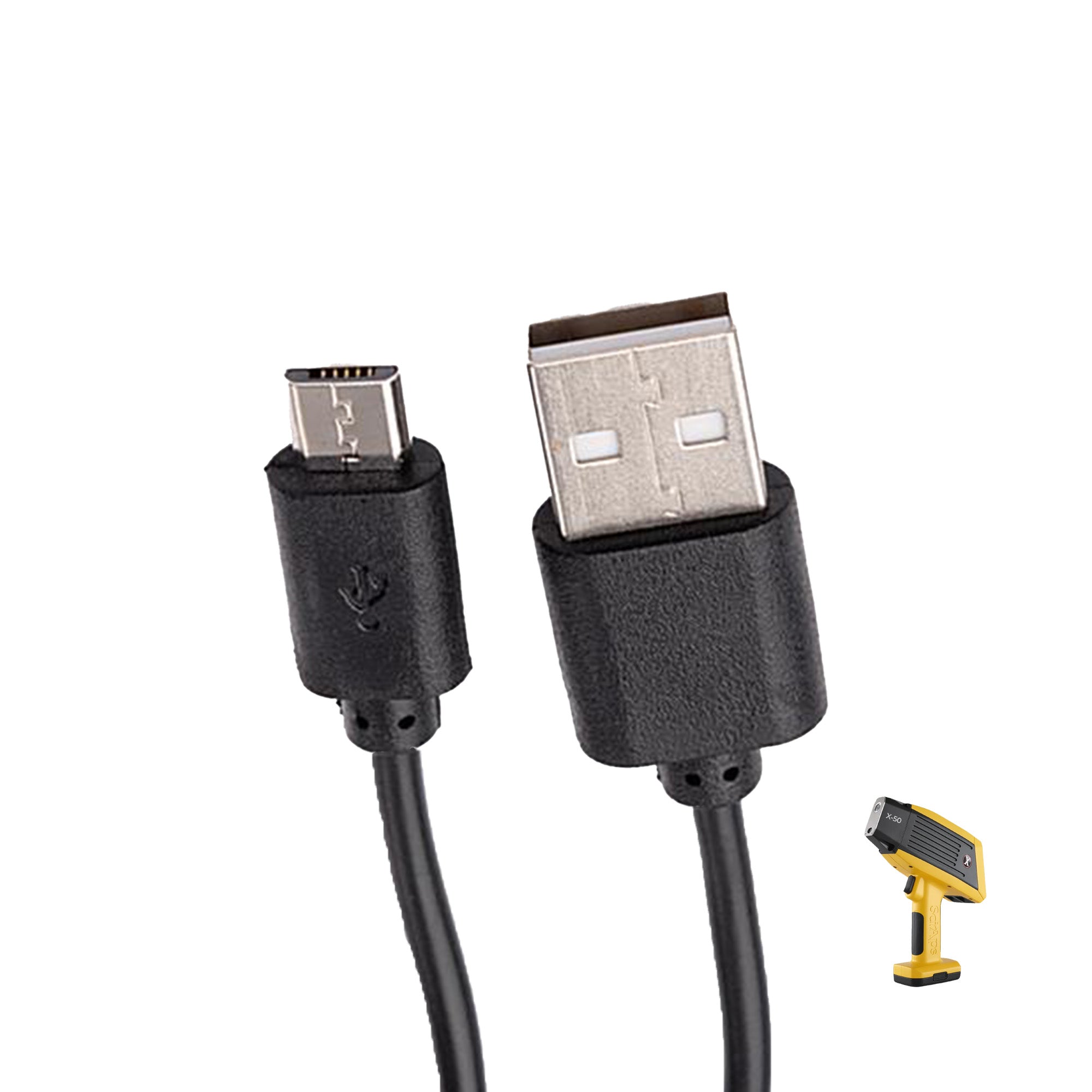

USB Data Cables
Calibration & Verification

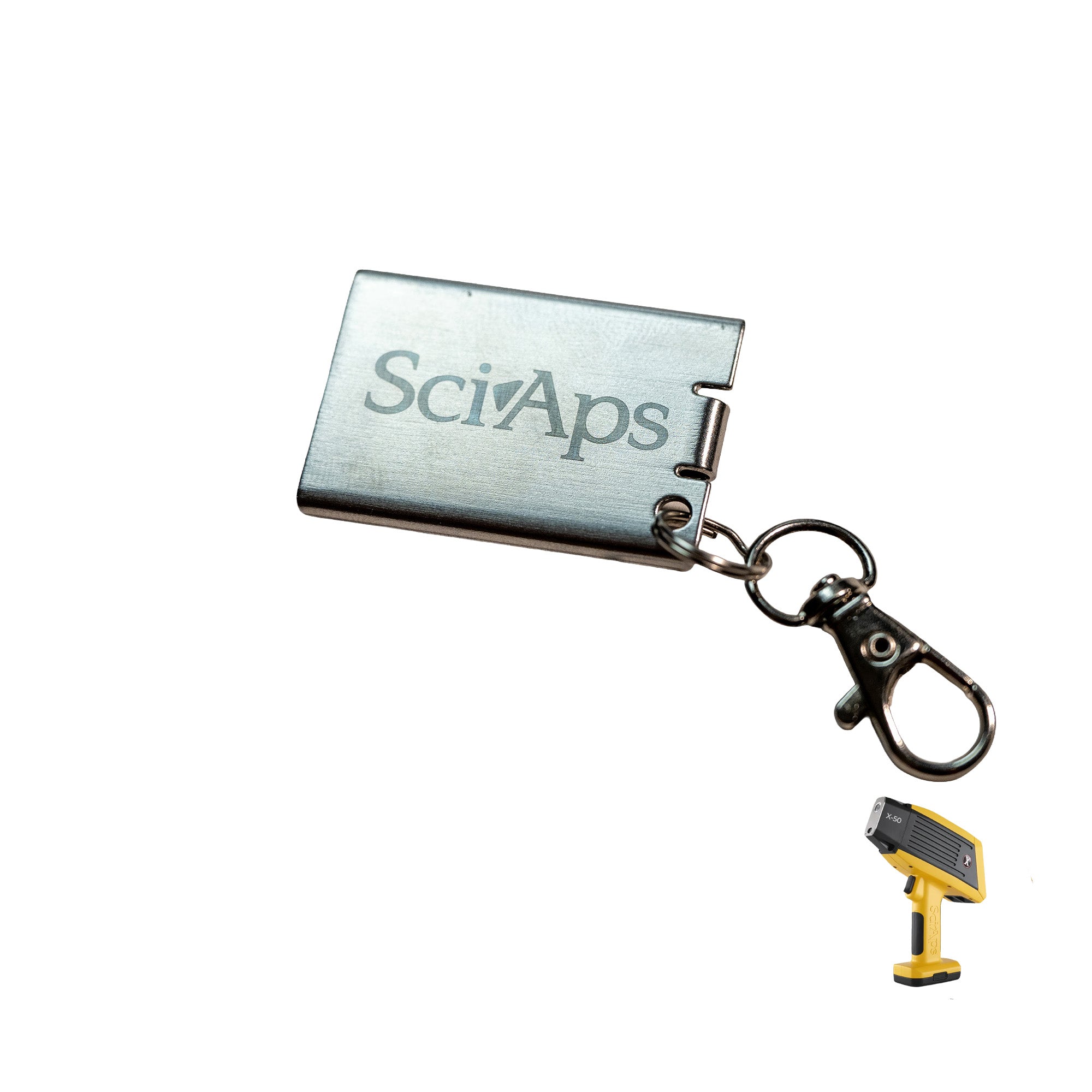

316 Stainless Steel Calibration Check Clips
Testing Hardware

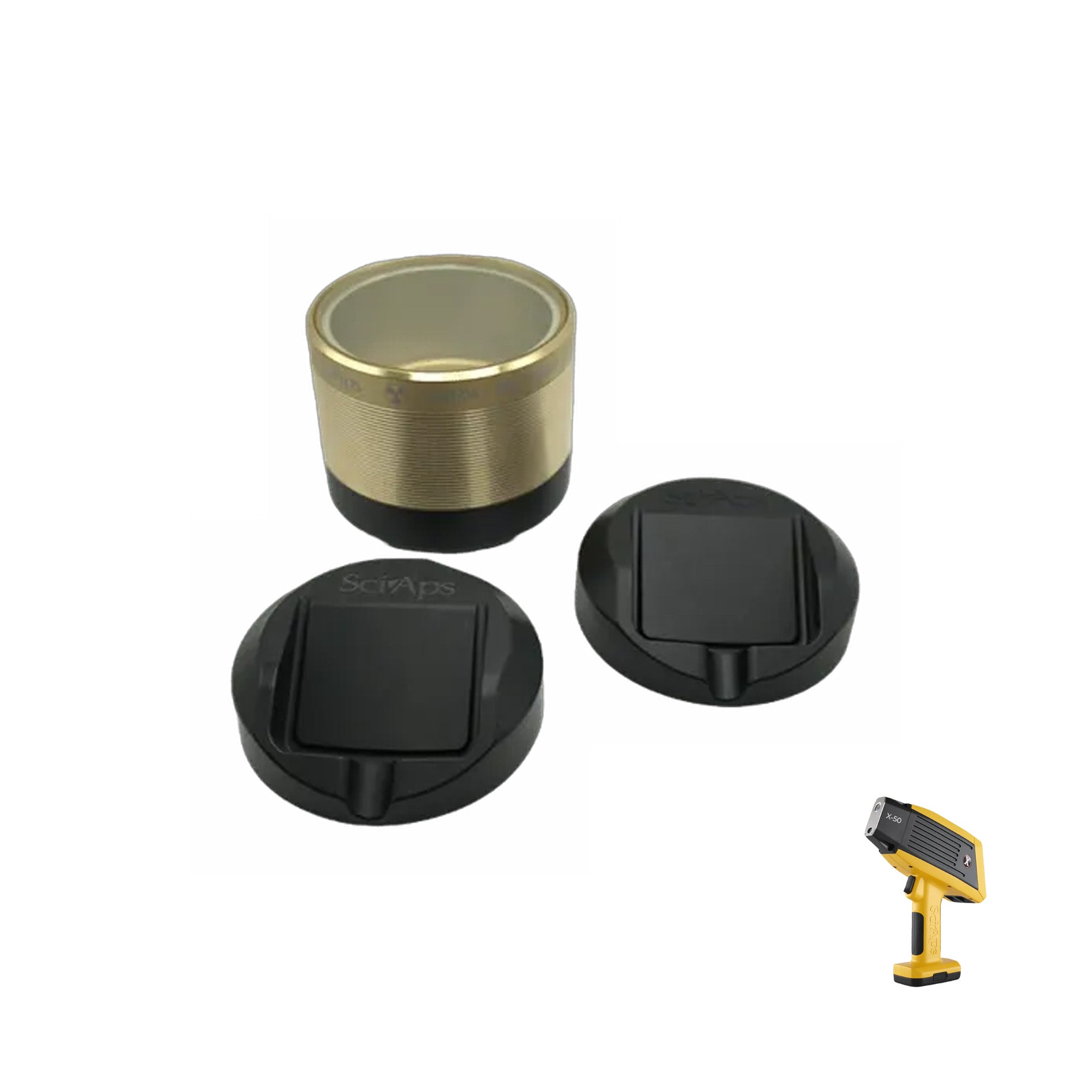

Portable Test Stands
Desktop / Benchtop Test Stands
Consumables
XRF Sample Cups (32mm)
4 Micron Prolene Film

The SciAps X-50 is ideal for

Scrap yards and metal recyclers
Manufacturing QA/QC teams
Mining and exploration professionals
Environmental consultants
Precious metals buyers and refiners

It is best suited for users who:

Need fast, reliable heavy metal analysis
Want a cost-effective XRF solution
Do not require light element detection

X-50 vs Other SciAps Models

Model	Detector Type	Best For	Light Elements (Mg, Al, Si)	Tube / kV	Tube Power	Precision / Performance
X-5	7 mm² SDD	Basic alloy sorting, scrap, entry-level PMI	❌ No	40–50 kV	4W	Good
X-50	7 mm² SDD	Cost-effective heavy metal analysis for alloy ID, scrap sorting, and precious metals	❌ No	40–50 kV	4W	Good+
X-200	20 mm² SDD	Light elements + general alloy + manufacturing QA	✅ Yes	40–50 kV	5W	Better
X-505	20 mm² SDD	High-speed sorting, improved alloy sensitivity, soil, mining, & environmental testing	✅ Yes	40–50 kV	5W	Better+
X-550	20 mm² SDD	Fast/advanced alloy, mining, soils, precious metals, Pb Paint, Environmental	✅ Yes	50 kV	5W	Best
X-550 Geo	20 mm² SDD	Mining, geochem, low-level detection, soils	✅ Yes	50 kV	5W	Best+
X-555	50 mm² SDD	Maximum speed, trace elements, highest performance	✅ Yes	55 kV	5W	Excellent

The X-50 is the best value platform for users focused on core metal analysis without needing advanced light element capability.

Frequently Asked Questions (FAQ)

What applications is the SciAps X-50 handheld XRF best suited for?

The SciAps X-50 is designed for alloy identification (PMI), scrap sorting, mining and exploration, soil testing, and precious metals analysis. It performs best in applications focused on transition and heavy metals, making it a strong choice for recyclers, field geologists, and environmental professionals.

Can the SciAps X-50 measure aluminum or other light elements?

No, the X-50 is not designed to measure light elements such as Mg, Al, Si, S, or P. It can perform limited aluminum alloy sorting (MLC’s, 2000 and 7000 series), but it is not suitable for full light element analysis.

If your application requires light element capability, consider upgrading to:

SciAps X-200 → a more budget-friendly option for light element alloy analysis
SciAps X-550 → a top-performance model with significantly improved light element sensitivity and speed

How fast is the SciAps X-50 compared to other handheld XRF analyzers?

The X-50 operates at speeds up to 2X faster than comparable analyzers using similar detector technology. Its reengineered internal geometry and optimized X-ray tube design allow for rapid, reliable results in both field and industrial environments.

What if I need better performance for gold, silver, or low-level elements?

If your application involves low concentration detection—such as gold (Au), silver (Ag), or other trace elements—you may benefit from a higher sensitivity instrument.

The SciAps X-550 Geo is specifically designed for these applications, offering enhanced sensitivity for low-level elemental detection in mining and exploration workflows.

Which XRF model is best for rare earth elements (REE) analysis?

For rare earth element (REE) analysis, the SciAps X-555 is the preferred model. It features a 55 kV X-ray tube, which provides superior excitation of higher atomic number elements and improves performance across REE applications.

This makes the X-555 a better choice for Rare Earth Element exploration.

How often should I replace the measurement window for the SciAps X-50?

Replace the measurement window when it becomes torn or dirty. This is critical for maintaining analyzer performance and preventing damage.

Who should choose the SciAps X-50 over other XRF models?

The X-50 is ideal for users who need a cost-effective handheld XRF analyzer focused on heavy metals and do not require light element detection.

Scrap and recycling operations
Manufacturing QA/QC teams
Mining and exploration professionals
Environmental consultants

For users needing expanded capabilities (light elements, trace detection, or REE analysis), upgrading to models like the X-200, X-505, X-550, or X-555 may be more appropriate.
