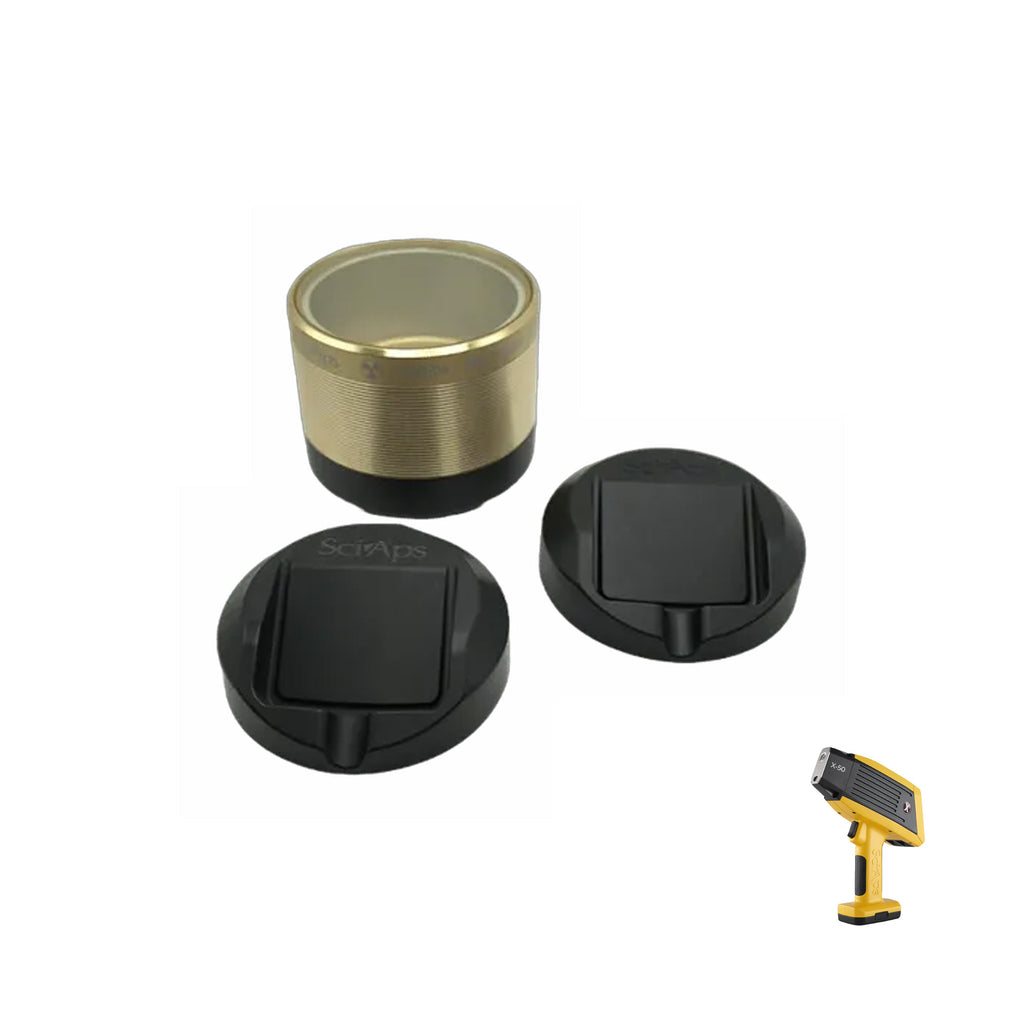

Portable Test Stand for the SciAps X-50 Handheld XRF Analyzer

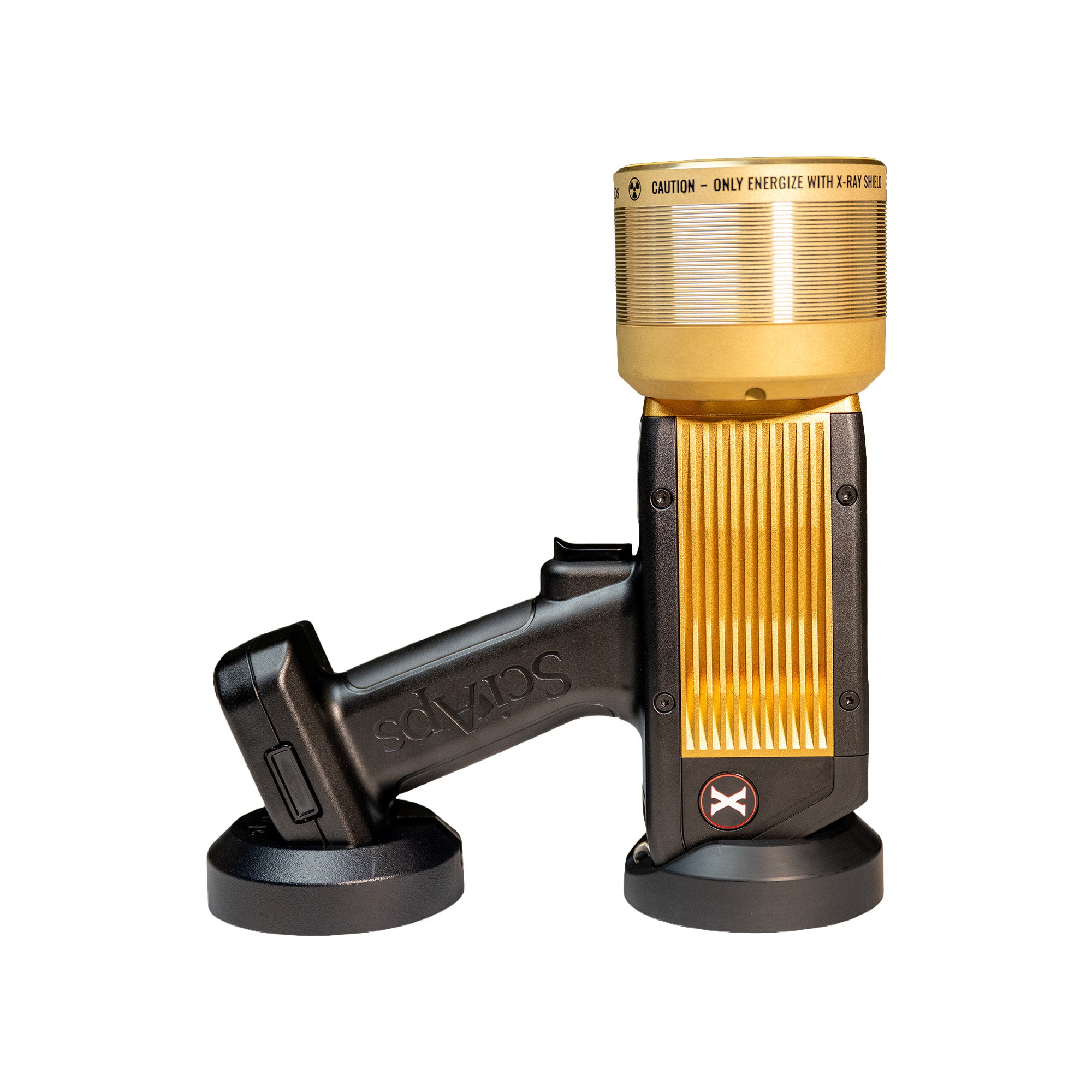

The Portable Test Stand for the SciAps X-50 allows operators to convert their handheld XRF analyzer into a stable benchtop testing station for consistent and repeatable measurements.

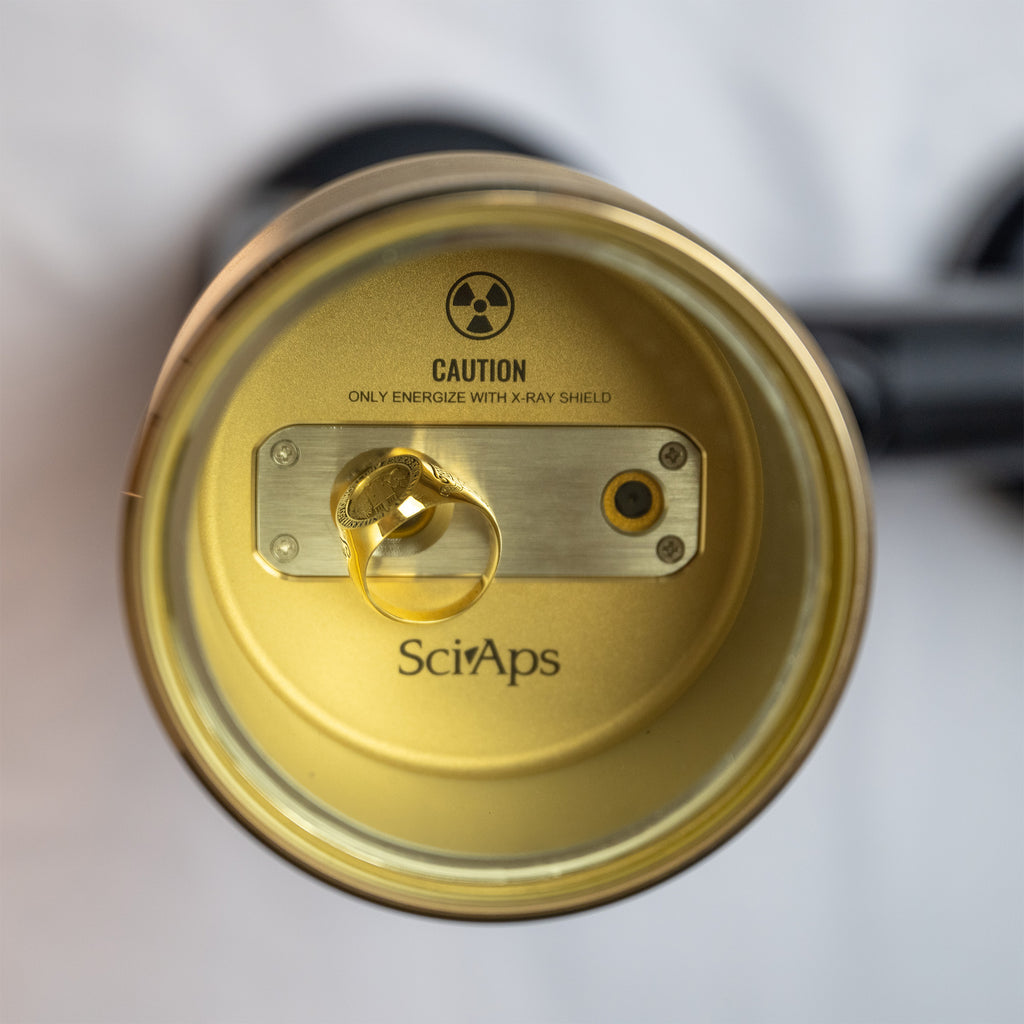

By securely mounting the analyzer in a fixed position, the stand allows samples to be placed directly beneath the instrument for hands-free analysis. This improves measurement consistency and makes testing small parts, powders, jewelry, or irregular samples significantly easier.

The stand is designed for portability and can be used in scrap yards, manufacturing facilities, laboratories, or inspection stations where stable sample positioning improves measurement accuracy.

When used properly with the sample chamber closed, the stand allows the analyzer to operate similarly to a closed beam configuration for safer stationary testing. However, the system is not interlocked and should always be operated following proper handheld XRF safety procedures.

Key Features

• Converts the SciAps X-50 handheld XRF analyzer into a portable benchtop testing station
• Improves measurement repeatability by keeping the analyzer in a fixed position
• Ideal for testing small samples such as jewelry, metal pieces, powders, or prepared materials
• Compact and portable design suitable for field or shop use
• Allows hands-free operation during longer measurements

Typical Applications

• Scrap metal sorting and alloy verification
• Positive Material Identification (PMI) inspection
• Manufacturing and fabrication quality control
• Jewelry and precious metals testing
• Laboratory sample testing and verification

Why Use a Test Stand

• Holding a handheld XRF analyzer by hand can introduce small variations in angle and distance that affect measurement consistency.
• Using a test stand helps eliminate these variables by keeping the analyzer stable while samples are positioned beneath the instrument.
• This improves repeatability and makes it easier to test:
• Small metal parts
• Prepared samples or powders
• Thin materials
• Jewelry and coins
• Samples requiring longer measurement times

Compatible Instrument

• This portable test stand is designed for use with the SciAps X-50 Handheld XRF Analyzer.

If you are unsure whether this stand is compatible with your analyzer, contact Alloy Geek before ordering.

What’s Included

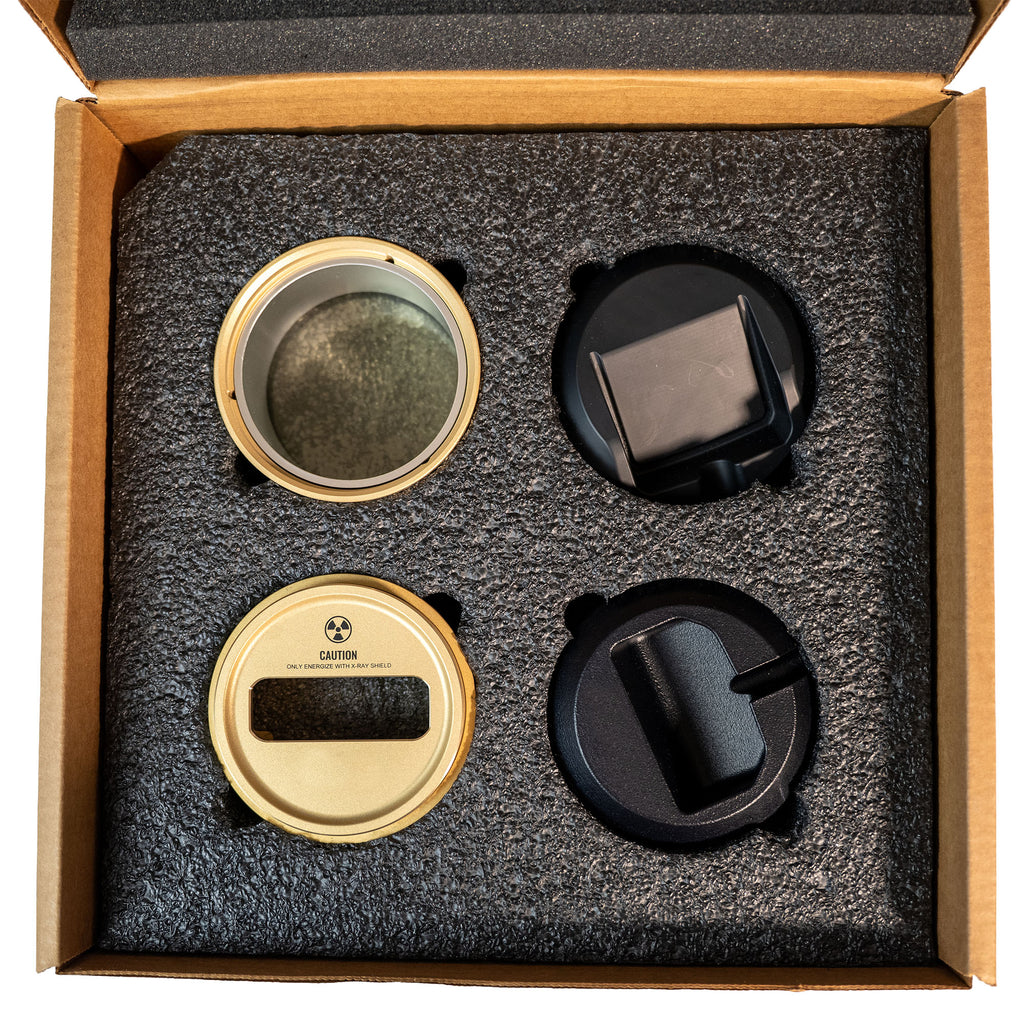

Portable test stand for the SciAps X-50 handheld XRF analyzer

Accessories Often Purchased Together

• SciAps X-50 Kapton Measurement Windows

• Rechargeable Li-Ion Batteries for SciAps X-50
• Battery Charger for SciAps X-50
• AC Power Adapter for SciAps X-50
• 316 Calibration Standard for SciAps X-50 (required for startup)

• Hard Transport Case with Custom Foam for SciAps X-50
• USB Cable for X-50
• XRF Sample Cups (Powders and Fluid Samples)

• 4 Micron XRF Film For Sample Cups


Frequently Asked Questions

What does a handheld XRF test stand do

A test stand holds the analyzer in a fixed position so samples can be placed beneath the measurement window. This improves stability and measurement consistency and removes the operator's hands from possible X-Ray exposure.

When should I use a test stand

A test stand is useful when testing small samples, powders, jewelry, prepared materials, or when longer measurements are required.

Can this stand be used in the field

Yes. The stand is designed to be portable so it can be used in scrap yards, manufacturing environments, laboratories, or field inspection jobs.
