Precision Combustion Analysis for Inorganic Materials

The ELEMENTRAC CS-i by ELTRA is a state-of-the-art carbon and sulfur analyzer designed for accurate and efficient analysis of inorganic samples. Utilizing a powerful induction furnace and advanced infrared detection, it ensures rapid and reliable results across a wide concentration range.

Key Features

• High-Temperature Induction Furnace: Achieves temperatures above 2000 °C for complete sample decomposition.
• Flexible IR Detection: Configurable with up to four infrared cells to accommodate various concentration ranges.
• Optimized for Dusty Samples: Carrier gas flow designed to handle challenging sample types.
• Advanced Software Integration: ELEMENTS software provides comprehensive analysis and diagnostics tools.
• Low Maintenance Design: Robust construction suitable for both laboratory and production environments.

Technical Specifications

• Measured Elements: Carbon, Sulfur
• Sample Types: Inorganic materials (e.g., metals, ceramics, ores)
• Detection Method: Solid-state infrared absorption
• Analysis Time: Approximately 40 seconds per sample
• Power Requirements: 230 V, 50/60 Hz, max. 15 A, 3450 W
• Dimensions (W x H x D): 52 x 84 x 75 cm
• Weight: Approximately 150 kg

Optional Accessories

• Autoloader: Automated sample loading system for increased throughput.
• TIC Module: Enables determination of total inorganic carbon.

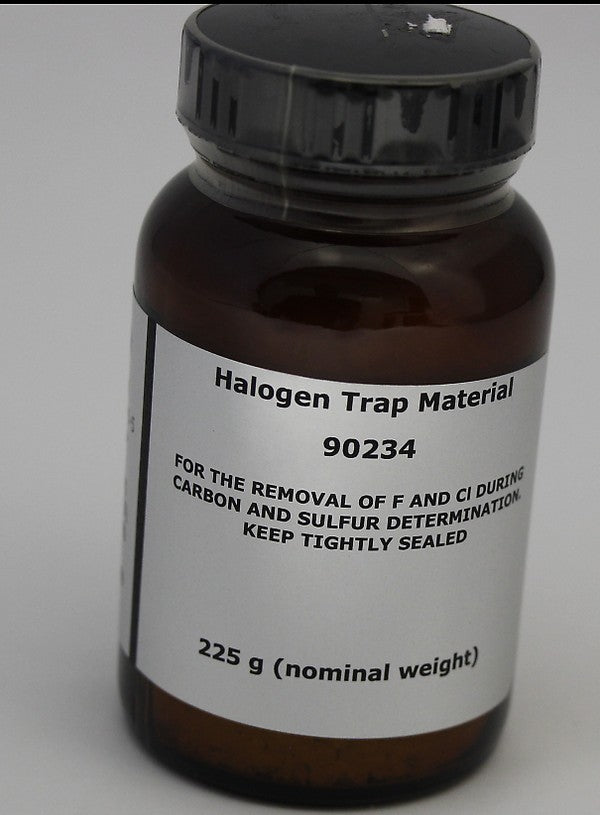

• Halogen Trap: Protects the system from corrosive halogen compounds.

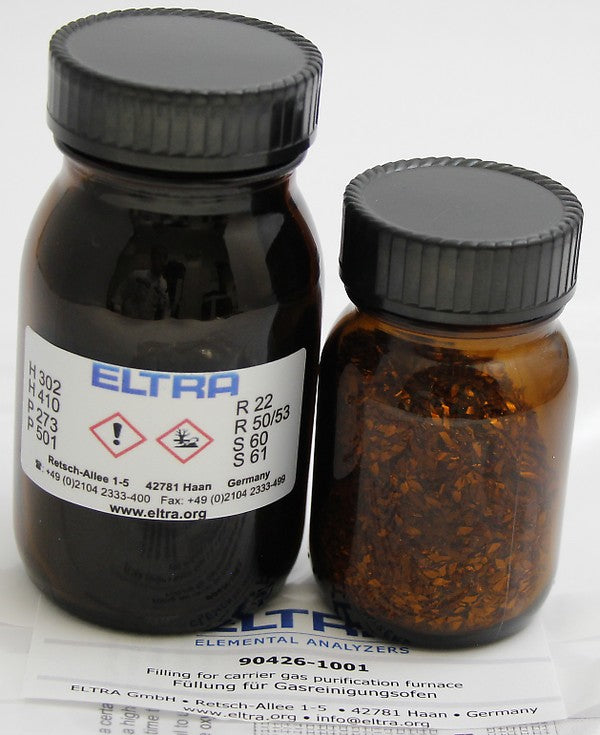

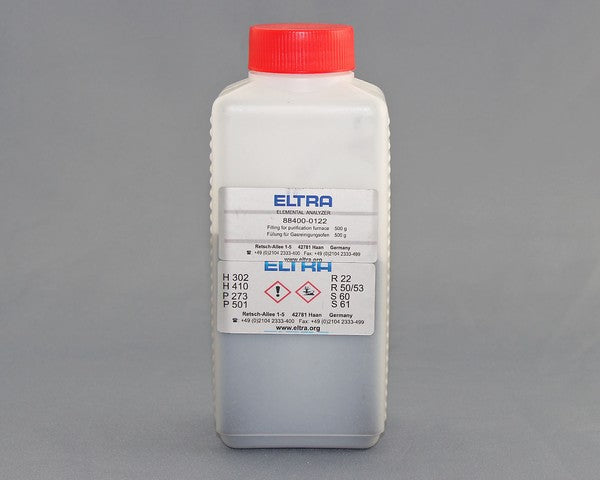

• Carrier Gas Purification: Ensures the purity of gases used during analysis.

Available Products

• ELEMENTRAC CS-i Analyzer: Base unit with customizable IR cell configurations.
• Autoloader Module: Enhances automation capabilities.
• TIC Module: Expands analytical functionality.

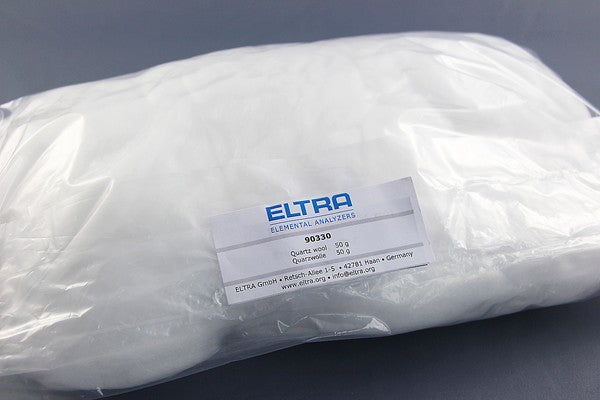

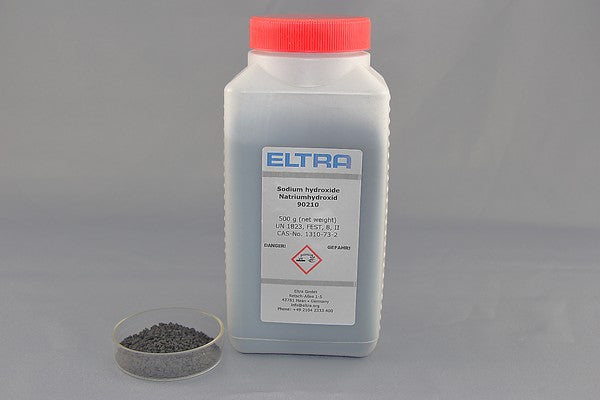

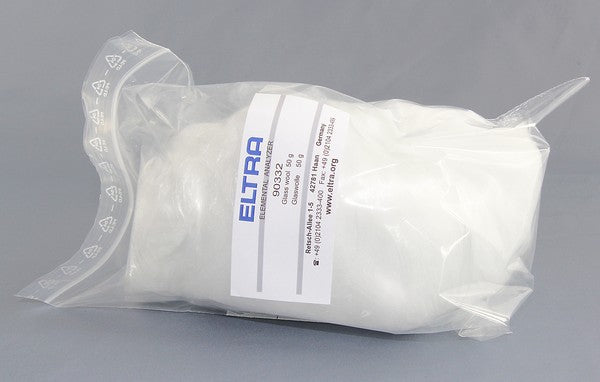

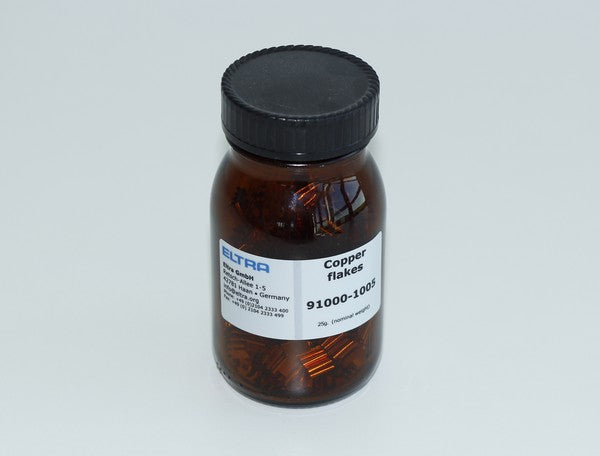

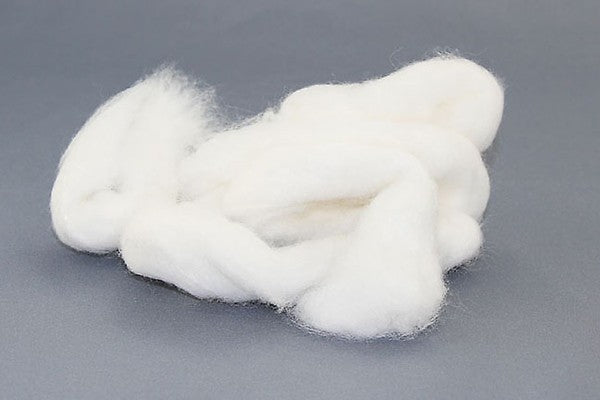

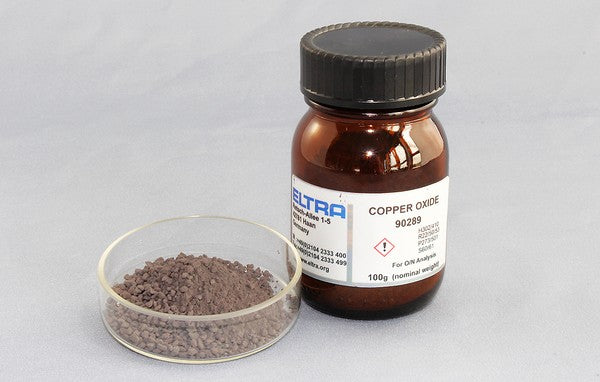

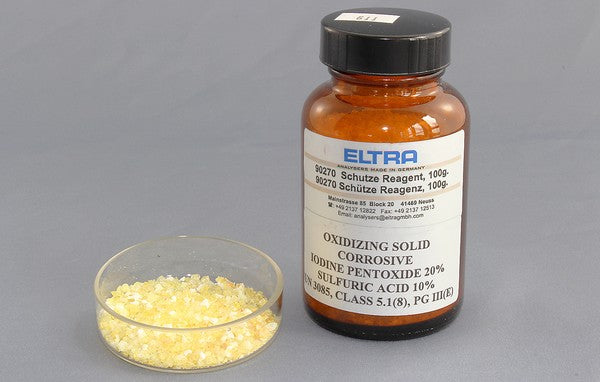

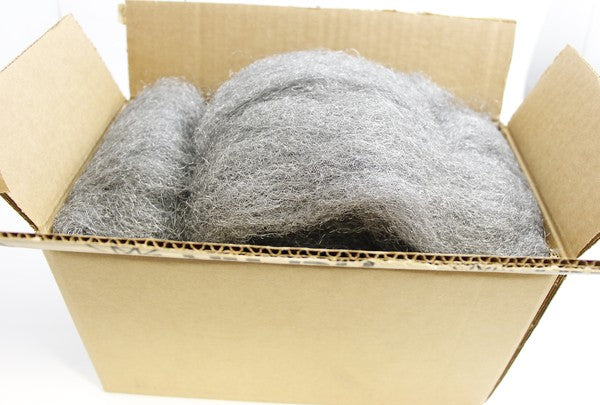

• Consumables Kit: Includes necessary chemicals and crucibles for operation.

Downloads

• ELEMENTRAC CS-i Brochure
• Application Note Carbon and Sulfur Analysis of Low Carbon Steel
• Application Note: Determination of Carbon and Sulfur in CaF2 Samples
• Paper: Determination of Carbon Content in Silicon Carbide Material
• Paper: Determination of Carbon and Sulfur in Battery Components
• User Guide: ELEMENTRAC CS-i
