Description

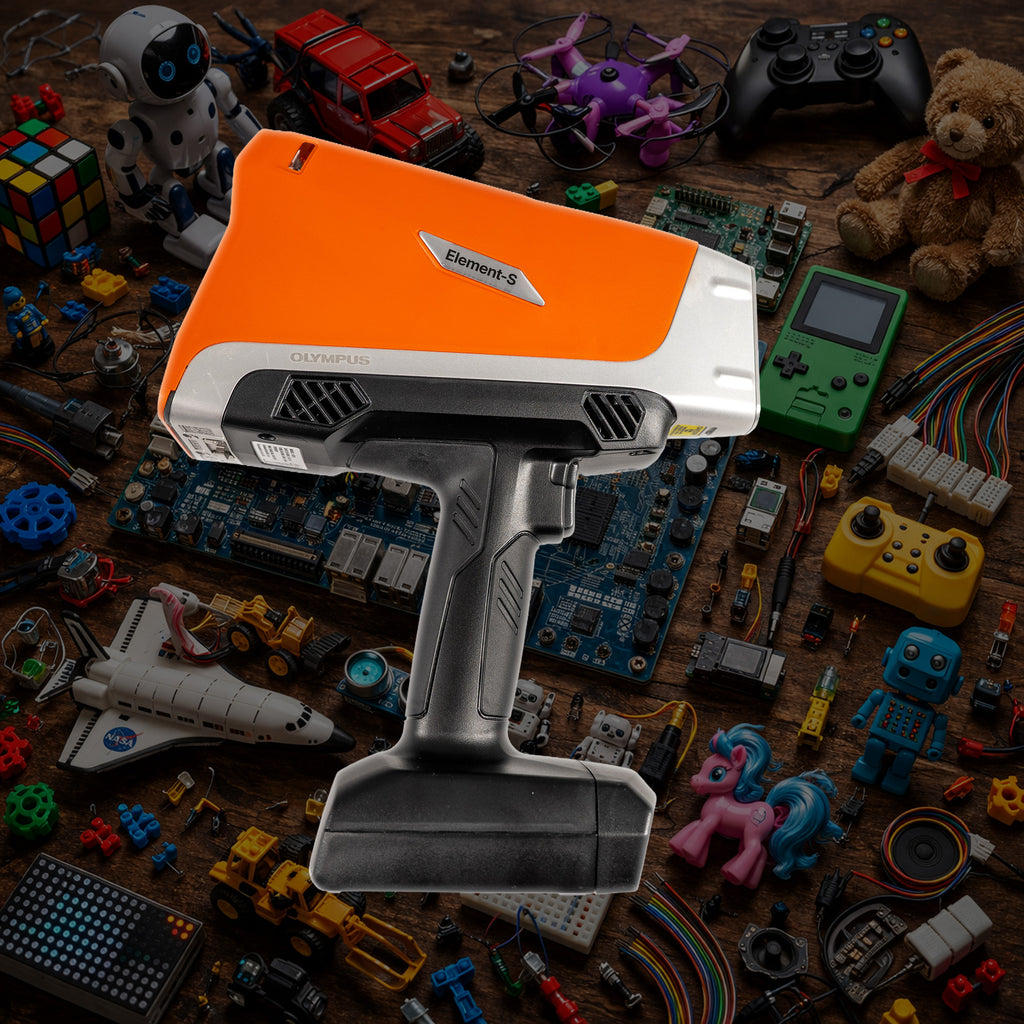

A meaningful step up from the base Element. 4W X-ray tube, 4-position filter wheel, SDD detector, and Axon technology for faster, more sensitive RoHS screening across a wider range of materials.
Is the Vanta Element-S Right for Your Work?
The Vanta Element-S is the right choice if:
- You need stronger analytical performance than the base Element provides without moving to a Core or Max price point
- Your work includes a mix of polymer and metal components that benefit from a multi-position filter wheel
- Light element detection of magnesium, aluminum, silicon, sulfur, and phosphorus matters for your broader application mix
- Durability and uptime in demanding environments are important - warehouse, dock, or manufacturing floor
- Budget is a driver but you need more than the fixed-filter performance of the base Element
Consider the Vanta Element instead if:
- Your work is standard RoHS screening of electronics and consumer products at typical thresholds and budget is the primary driver
- You do not need light elements
Consider the Vanta Core or Max instead if:
- You need an 8-position filter wheel
- You need the optional 3 mm collimation
- Want the Work Station for Desktop operation (best for collimator work)
- GPS or hot-swap battery are required for your compliance program'
- You require light element analysis
Not sure which fits your situation? Contact us and we will help you decide.
What Sets the Vanta Element-S Apart for RoHS
Axon Technology for Repeatable Results Every Vanta analyzer is built on Evident's proprietary Axon technology. Axon uses ultra-low-noise electronics to enable higher X-ray counts per second, producing fast, accurate, and repeatable results. This means your first measurement and your last measurement of the day are consistent - and results are consistent across multiple instruments if your team runs more than one unit. For compliance screening where repeatability near regulatory thresholds matters, this is the foundation that makes Vanta a trusted platform.
4W X-Ray Tube at 50 kV with Silver Anode The Element-S runs a 4-watt, 50 kV silver anode X-ray tube - double the power of the base Element's 2W tungsten tube. More power means faster measurements and improved sensitivity across the full range of RoHS elements in both polymer and alloy matrices. This is the most significant hardware upgrade between the Element and Element-S and the primary reason measurement times improve meaningfully at this tier.
4-Position Filter Wheel Where the base Element uses a fixed aluminum filter, the Element-S has a 4-position filter wheel that automatically selects the correct filter for different element groups and beam conditions. This allows the instrument to optimize signal-to-background ratio across a broader range of materials without operator input, producing more consistent results across the mixed-matrix screening jobs common in electronics manufacturing and consumer product compliance.
SDD Detector with Graphene Window The Element-S uses a silicon drift detector with a high-sensitivity graphene window. The graphene window improves light element transmission compared to conventional beryllium windows, contributing to better sensitivity across the range of RoHS elements and supporting light element detection of Mg, Al, Si, S, and P for applications beyond standard RoHS screening.
MIL-STD-810G Drop Tested and IP54 Rated The Vanta Element-S is drop tested to US Department of Defense MIL-STD-810G standards from 4 feet and rated IP54 for dust and water splash resistance. Built for electronics manufacturing floors, warehouse receiving docks, and supplier audit environments where drops and exposure are a real risk.
Intuitive Interface with Fleet Management Capability The Element-S runs on Linux with cloud-enabled fleet manager capability. Custom setups, pass/fail thresholds, and user configurations can be pushed across an entire fleet of Vanta instruments from a central PC. For compliance teams managing multiple analyzers across facilities or inspection teams, this simplifies administration and keeps settings consistent.
Warranty and Service Coverage The Vanta Element-S comes with Evident's standard manufacturer warranty. Confirm current warranty terms at time of order.
What You Can Screen With It
Incoming Component and Material Inspection Screen connectors, cables, housings, fasteners, and metal parts at the point of receipt. The 4-position filter wheel and 4W tube improve consistency across the wider range of materials typically seen at incoming inspection compared to the base Element.
Electronics and Circuit Board Screening Verify lead-free solder and screen assembled boards and components for restricted substances. Faster measurement times than the base Element make the Element-S practical for higher-volume board-level screening jobs.
Consumer Products and Toys Screen painted surfaces, plastic parts, metal components, and apparel hardware for lead, cadmium, and restricted substances. The Vanta platform is accepted for EU RoHS, WEEE, CPSIA, and ASTM F963 toy safety screening programs.
Supplier Audits At 4.0 lbs with battery, the Element-S is practical for travel to supplier facilities. Carry it on-site for real-time spot-checking of incoming materials and components without relying on documentation alone.
Halogen-Free Screening Screen for chlorine and bromine alongside standard RoHS elements for combined RoHS and halogen-free compliance programs.
Important Accessory Note The Vanta Work Station, Probe Shield, Hot Heel, and Weld Mask are not compatible with the Vanta Element-S. Compatible accessories include the Field Stand, Soil Foot, and Holster. If your inspection jobs require benchtop operation or closed-beam sample staging, consider the Vanta Core or Max.
Restricted Substances and Thresholds
| Element | What It Indicates | RoHS Threshold |
|---|---|---|
| Lead (Pb) | Solder, brass alloys, pigments | 1000 ppm |
| Cadmium (Cd) | Platings, pigments, stabilizers | 100 ppm |
| Mercury (Hg) | Switches, lighting components | 1000 ppm |
| Chromium (Cr) | Treated surfaces, total Cr only; Cr VI requires wet chemistry | 1000 ppm |
| Bromine (Br) | Proxy for PBB/PBDE flame retardants | 1000 ppm |
| Chlorine (Cl) | Halogen-free screening | 900 ppm |
Additional elements can be added to the screening configuration as needed for expanded compliance programs.
Compliance Standards Supported
- EU RoHS Directive (2011/65/EU)
- China RoHS / ACPEIP
- Japan RoHS
- Korean RoHS Directive
- WEEE Directive
- CPSIA (HR4040)
- ASTM F963 toy safety standard
- California Proposition 65
- IEC 62321-3-1 and ASTM F2617-15
- Halogen-free per IEC 61249-2-21
Technical Specifications
| Specification | Value |
|---|---|
| Detector | SDD with high-sensitivity graphene window |
| X-ray tube | 4W, silver anode, 8-50 kV |
| Primary beam filter | 4-position filter wheel |
| Collimation | Not available on Element-S model |
| Weight | 4.0 lbs (1.84 kg) with battery; 3.55 lbs (1.61 kg) without |
| Dimensions | 10.4 x 29.6 x 24.1 cm (4.1 x 11.6 x 9.5 in.) |
| Display | 800 x 480 WVGA LCD with capacitive touchscreen and gesture control |
| Battery | Removable 14.4V Li-ion; no hot-swap on Element-S model |
| Connectivity | Wi-Fi and Bluetooth via optional USB adapter; USB 2.0 |
| Operating temp | 14°F to 113°F (-10°C to 45°C) |
| IP rating | IP54 dust and water splash resistant |
| Drop test | MIL-STD-810G 4-foot drop tested |
| Operating system | Linux, cloud enabled |
| Data storage | microSD slot, 1 GB industrial SD card included |
| Regulatory | CE, RoHS compliant, USFDA registered |
Rent Before You Buy
Not ready to commit? The Evident Vanta Element-S is available to rent on weekly and monthly terms through Alloy Geek. Same instrument, fully configured for RoHS screening, shipped ready to use.
Why Alloy Geek
Instruments inspected, tested, and verified before shipping Honest condition grading - no surprises on arrival Support from people who actually use XRF, not just sell it Flexible options: buy outright, or ask about rent-to-own
Get the Right Analyzer for Your RoHS Work
Whether you are ready to buy, want to rent before committing, or just have questions about fit and configuration - we are here to help.
