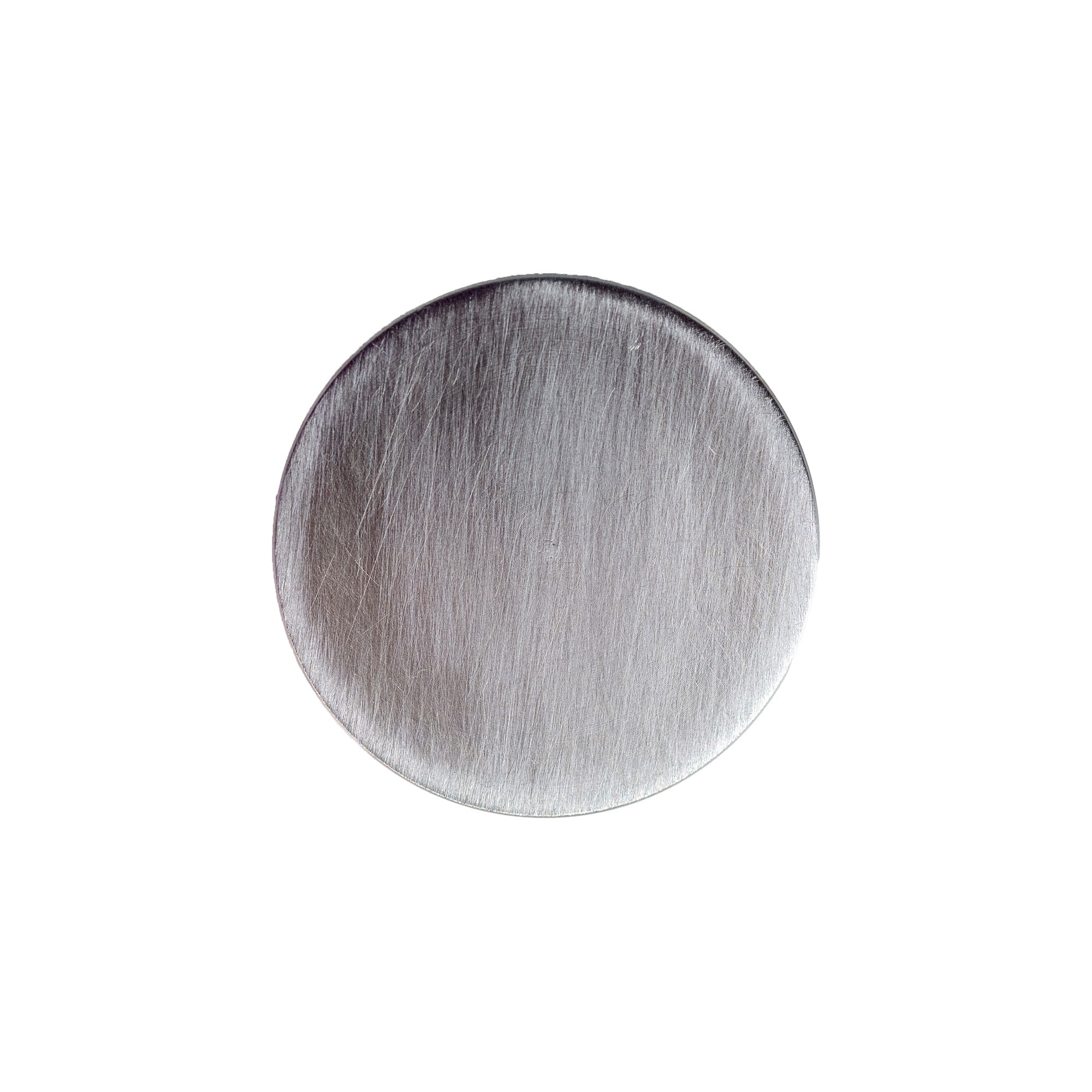

4032 Wrought Aluminum Certified Reference Material (CRM)
This 4032 aluminum certified reference material is a wrought aluminum alloy widely used as a standard for calibrating and verifying your spectrometer (XRF, ICP-OES, Spark-OES, etc.). This material is precisely manufactured and certified to have traceable measurements and specified impurity levels, ensuring reliable results for laboratories performing calibration, quality control, and materials testing.
Certified 4032 Aluminum Chemical Composition:
- Al: Balance
- Si: 11.38%
- Fe: 0.47%
- Cu: 0.94%
- Mn: 0.033%
- Cr: 0.031%
- Ni: 0.97%
- Zn: 0.033%
- Ti: 0.057%
- V: 0.02%
- Ga: 0.031%
- Zr: 0.008%
- Sn: 0.027%
- Pb: 0.030%
- P: (0.002%)
- Be: 0.004%
- B: (0.001%)
- Mg: 1.18%
- Bi: 0.022%
- Ca: (0.004%)
Typical 4032 Aluminum Chemical Composition:
- Si: 11.0-13.5%
- Fe: 1.0% max
- Cu: 0.5-1.3%
- Mg: 0.8-1.3%
- Cr: 0.10 max
- Ni: 0.5-1.3%
- Zn: 0.25% max
- Others (each): 0.05% max
- Others (total): 0.15% max
- Aluminum (Al): Balance
Other Names:
Aluminum 4032, UNS A94032, AA 4032, ISO AlSi12.5MgCuNi, ASTM B209, ASTM B211, AMS 4145
Available material forms:
- XRF: ~0.25" thick disc, ~1.5" diameter - unavailable
- OES: ~0.75" thick disc, ~1.5" diameter - unavailable
- Chips: 50g of chips
Reference Material (RM):
A reference material, or RM, is a material with a known grade and/or chemical composition that is typically used for alloy or grade identification.
Certified Reference Material (CRM):
A certified reference material, or CRM, is a material that has been thoroughly analyzed and characterized using multiple validated methods to determine its chemical composition. The results of these analyses are then used to establish certified values, along with associated uncertainties. CRMs are produced and certified by accredited organizations or laboratories following internationally recognized standards, such as ISO Guide 34 (ISO 17034).
Please Contact Us if you would like to know the specific dimensions of a sample.
