Description
This Multi-Element Low-Alloy Steel Certified Reference Material (CRM) is designed for the calibration and verification of handheld XRF, benchtop XRF, handheld LIBS, and Spark-OES spectrometers. It provides certified chemical composition values across a broad range of alloying elements for instrument performance checks, calibration development, quality control, and materials analysis.
Multi-Element Low-Alloy Steel Certified Chemical Composition (1762A)
| Element | Certified Value (wt%) | Element | Certified Value (wt%) |
|---|---|---|---|
| Al | 0.064 | Nb | 0.102 |
| As | 0.029 | Ni | 1.194 |
| B | 0.005 | O | 0.0052 |
| C | 0.368 | P | 0.047 |
| Co | 0.070 | S | 0.044 |
| Cr | 0.903 | Si | 0.453 |
| Cu | 0.158 | Sn | 0.080 |
| Fe | 93.7 | Ta | 0.035 |
| H | 0.00015 | Ti | 0.114 |
| Mn | 2.08 | V | 0.219 |
| Mo | 0.370 | Zr | 0.031 |
| N | 0.0140 |
BS 1762A Certificate of Analysis
Other Names
Low Alloy Steel Reference Material
Available Material Forms

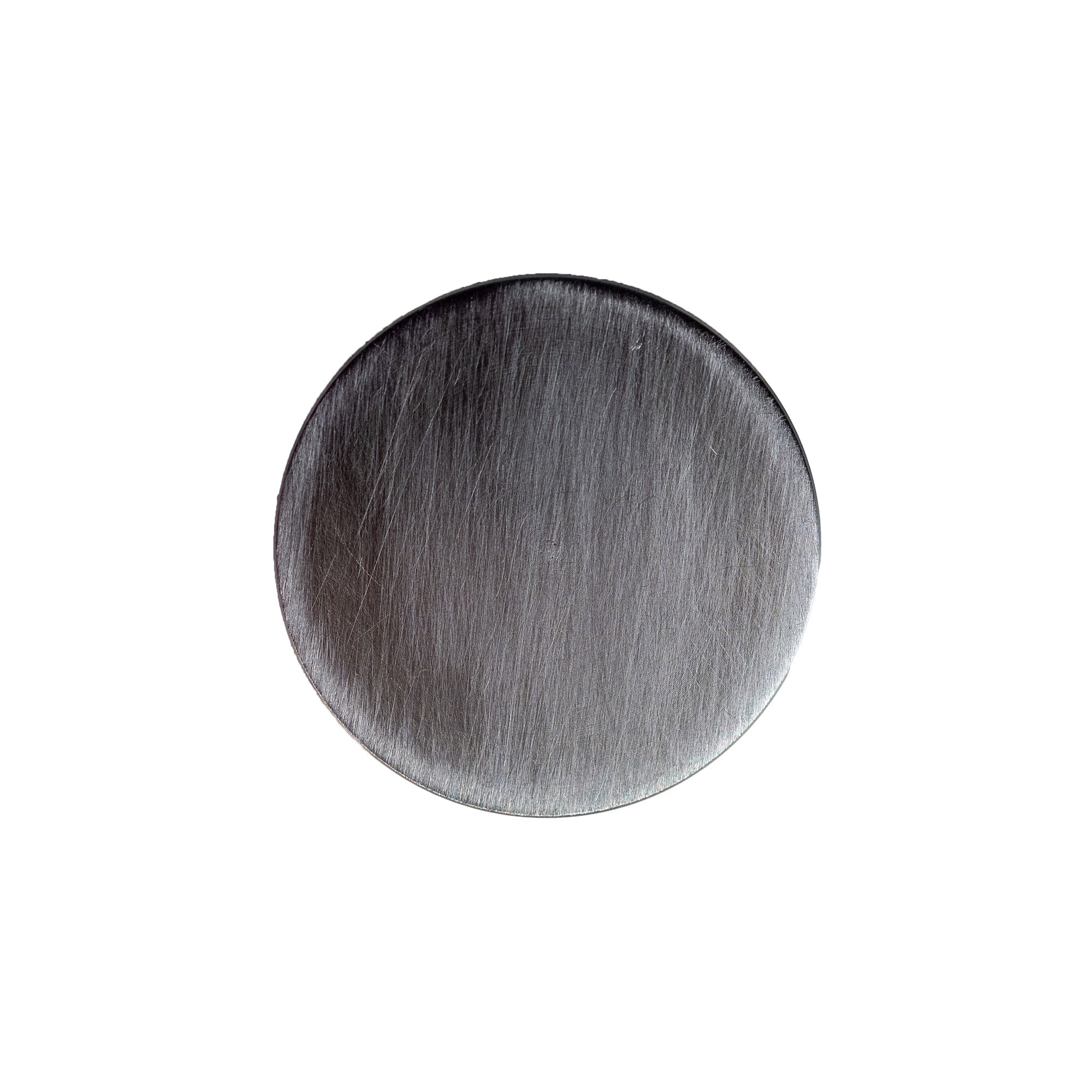

- XRF – Disc: 36mm D x 25mm
- OES – Disc: 36mm D x 25mm
Contact Us
Questions about this reference material? Contact Alloy Geek for pricing, availability, and technical support.
