Description
This C17510 certified reference material is a copper-nickel-beryllium alloy used as a standard for calibrating and verifying your spectrometer (handheld XRF, benchtop XRF, OES). This material is certified to ISO 17034 with values established through interlaboratory testing, giving you traceable, defensible composition data for calibration checks, instrument verification, and quality control on high-conductivity beryllium copper alloys.
For field verification and PMI work, many customers pair this material with NEW or PRE-OWNED handheld XRF analyzers for rapid, on-site analysis.
Certified C17510 Chemical Composition:
| Element | Certified Value | Uncertainty |
|---|---|---|
| Cu | 97.6% | ±0.1% |
| Ni | 1.70% | ±0.08% |
| Be | 0.35% | ±0.02% |
| Si | 0.137% | ±0.007% |
| Al | 0.042% | ±0.004% |
| Fe | 0.042% | ±0.004% |
| Sb | 0.0024% | ±0.0006% |
| Pb | 0.0014% | ±0.0005% |
| Ag | 0.0014% | ±0.0003% |
| Mn | 0.0020% | ±0.0004% |
| Zr | 0.0011% | ±0.0004% |
Informational (non-certified) values: As <0.005%, C 0.003%, Ca <0.005%, Co 0.024%, Cr 0.015%, Mg 0.007%, P 0.005%, S <0.05%, Sn 0.004%, Zn 0.005%
Other Names:
C17510, Copper Beryllium 17510, Cu-Ni-Be Alloy, Beryllium Copper Alloy 10
Available material forms:

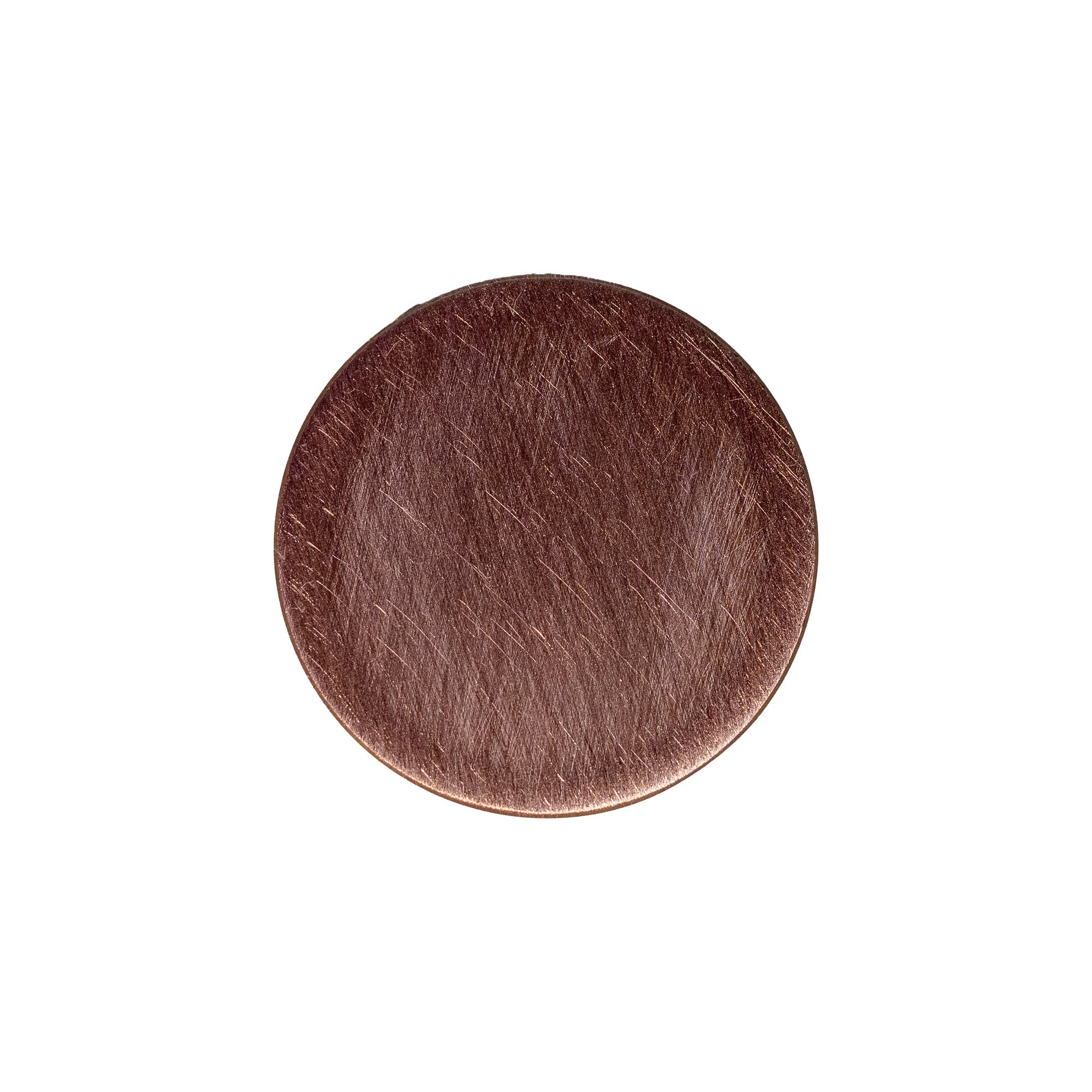

- OES - Disc: 38mm D x 19mm
- XRF - Disc: 38mm D x ~7mm
Please Contact Us if you would like to know the specific dimensions of a sample.
