Description

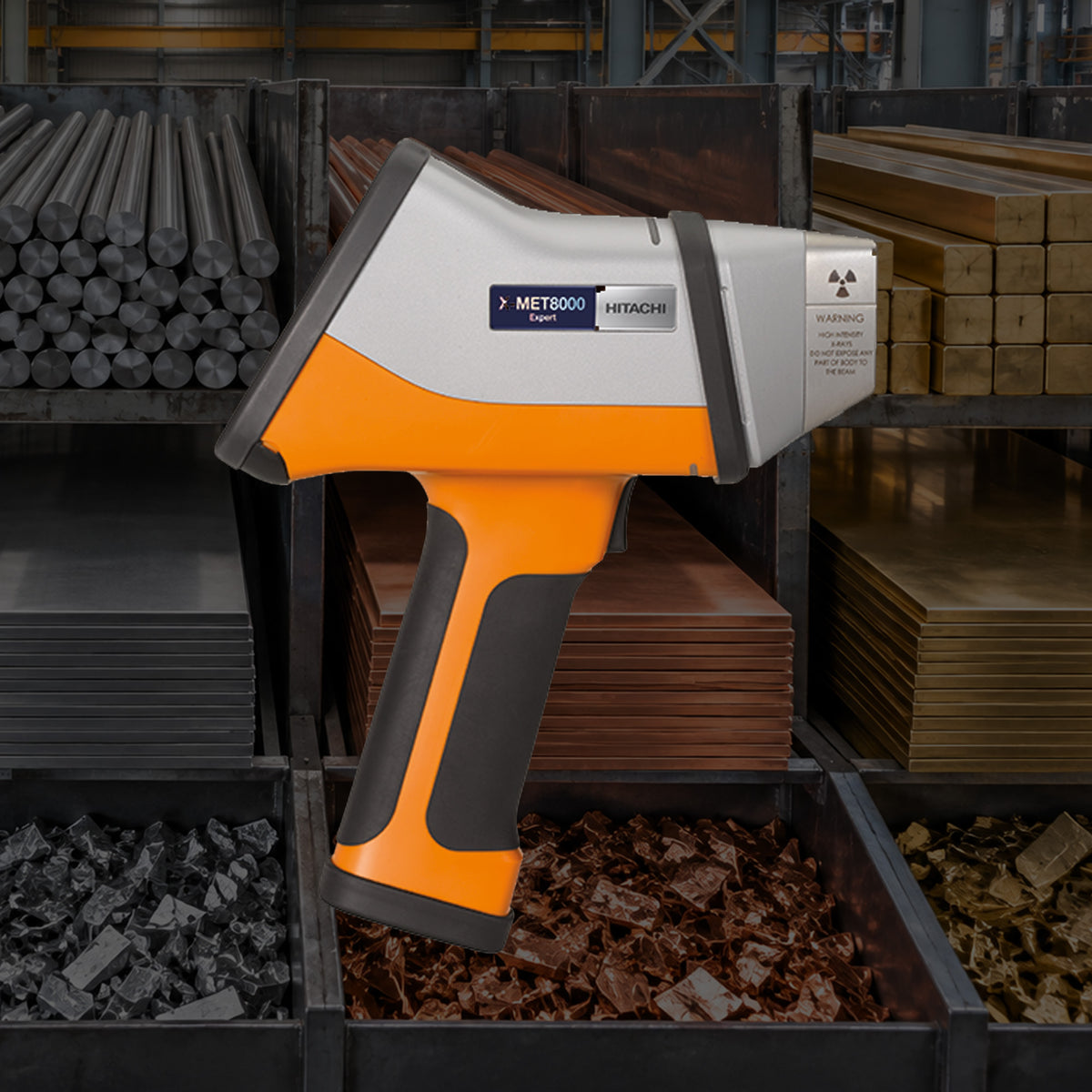

The Hitachi X-MET8000 Expert is a high-performance handheld X-ray fluorescence (XRF) analyzer designed for rapid alloy identification, scrap metal sorting, positive material identification (PMI), and industrial quality control.
This X-MET8000 Expert combines advanced light element analysis with a large-area silicon drift detector (SDD), allowing users to identify a wide range of ferrous and non-ferrous alloys, including stainless steels, nickel alloys, aluminum alloys, copper alloys, titanium alloys, and specialty engineering metals.
For scrap processors, manufacturers, foundries, fabricators, and inspection companies, the X-MET8000 Expert provides fast elemental analysis and alloy grade identification in a rugged, portable instrument.
Fast Alloy Identification & Sorting
The Hitachi X-MET8000 Expert provides accurate elemental analysis and alloy grade identification across a broad range of industrial metals.
Common alloy families include:
- Stainless Steels: 300-series, 400-series, duplex, and specialty stainless alloys
- Low Alloy Steels: Chromium-molybdenum steels and other engineering steel grades
- Nickel Alloys: Inconel, Hastelloy, Monel, and other nickel-based alloys
- Copper Alloys: Brass, bronze, copper-nickel, and specialty copper alloys
- Aluminum Alloys: Common wrought and cast aluminum grades
- Titanium Alloys: Commercially pure titanium and titanium-based alloys
- Cobalt Alloys: Stellite and other cobalt-based materials
- Magnesium Alloys: Magnesium-base alloys and specialty lightweight metals
- Tool Steels & Specialty Alloys: High-alloy steels and other industrial materials
The analyzer measures elemental composition and compares results against installed alloy grade libraries, allowing operators to quickly identify unknown materials and distinguish between similar alloy grades.
Advanced Light Element Analysis
One of the key advantages of the X-MET8000 Expert is its ability to analyze light elements that many basic handheld XRF analyzers cannot effectively measure.
The X-MET8000 Expert supports analysis of light elements including:
- Magnesium (Mg)
- Aluminum (Al)
- Silicon (Si)
- Phosphorus (P)
- Sulfur (S)
Light element analysis expands the analyzer's capabilities for aluminum and magnesium alloys, stainless steels, and other materials where these elements contribute to grade identification.
For example, silicon and magnesium are important for distinguishing many aluminum alloys, while sulfur can help separate certain stainless steel grades.
The Expert combines a 50 kV X-ray tube, large-area SDD, and automatic six-position filter changer to provide an analytical range extending from magnesium through uranium.
Aluminum Alloy Identification & Sorting
The X-MET8000 Expert is particularly well suited for aluminum alloy sorting, where accurate light element measurements are essential.
Unlike basic handheld XRF configurations that primarily measure heavier elements, the Expert can analyze magnesium and silicon, helping operators distinguish between common aluminum alloy grades.
Hitachi identifies the X-MET8000 series as capable of separating aluminum alloys such as 6061 and 6063, making it valuable for recycling operations, aluminum manufacturers, and material inspection companies.
Typical applications include:
- Sorting mixed aluminum scrap
- Separating common 6000-series aluminum alloys
- Verifying incoming aluminum raw materials
- Identifying unknown aluminum components
- Inspecting aluminum castings and fabricated products
- Confirming material chemistry during manufacturing
Scrap Metal Recycling & Processing
Accurate alloy sorting can significantly improve the value of recovered scrap metals.
The X-MET8000 Expert allows operators to identify unknown metals and separate materials into appropriate alloy grades without cutting or consuming the sample.
Its broad elemental range makes it useful for recycling operations handling stainless steels, nickel alloys, copper alloys, aluminum, titanium, magnesium, and other specialty metals.
With rapid measurement times and integrated alloy grade identification, operators can make sorting decisions directly at the scrap pile, processing line, or receiving area.
Positive Material Identification (PMI)
The Hitachi X-MET8000 Expert provides non-destructive elemental analysis for positive material identification in industrial manufacturing, fabrication, maintenance, and inspection applications.
Typical PMI applications include:
- Incoming material inspection
- Alloy grade verification
- Piping, fittings, and valve identification
- Fabrication and welding quality control
- Warehouse and inventory verification
- Industrial maintenance and inspection
- Material segregation and traceability
- Finished component inspection
The analyzer displays measured elemental composition alongside alloy grade identification, helping operators verify materials against purchasing requirements and material specifications.
Manufacturing Quality Control
Material verification is an important part of manufacturing quality assurance.
The X-MET8000 Expert helps manufacturers confirm incoming raw materials, investigate questionable components, and verify finished products before shipment.
Because many engineering alloys appear visually identical, elemental analysis provides an effective method for distinguishing materials with different chemical compositions and performance characteristics.
The analyzer's portable design allows measurements to be performed directly on raw material stock, fabricated components, and installed equipment.
Analytical Modes & Applications
- Alloy Mode – Includes both Heavy & Light Element Analysis
Designed for Industrial Environments
The X-MET8000 Expert combines advanced analytical performance with a rugged, portable design suitable for industrial use. Key features include:
- Large-Area Silicon Drift Detector: High-performance X-ray detection for fast elemental analysis
- 50 kV X-ray Tube: Broad elemental analysis capabilities
- Automatic Six-Position Filter Changer: Optimized measurement conditions for different elements and materials
- Integrated Alloy Grade Library: Fast identification of common industrial alloy grades
- Color Touchscreen: Convenient operation and immediate access to results
- Integrated Camera: Document samples and measurement locations
- Wi-Fi & Bluetooth: Convenient connectivity for reporting and data management
- IP54-Rated Housing: Protection against dust and water splashes
- Lightweight Design: Approximately 3.3 lb (1.5 kg), including battery
Hitachi X-MET8000 Expert Technical Specifications
| Specification | Details |
|---|---|
| Manufacturer | Hitachi High-Tech |
| Model | X-MET8000 Expert |
| Condition | New |
| Technology | Energy Dispersive X-ray Fluorescence (EDXRF) |
| X-ray Tube | 50 kV |
| Detector | Large-Area Silicon Drift Detector (SDD) |
| Elemental Range | Magnesium (Mg) through Uranium (U) |
| Filter System | Automatic Six-Position Filter Changer |
| Alloy Analysis | Heavy & Light Elements |
| Grade Identification | Integrated Alloy Grade Library |
| Display | Integrated Color Touchscreen |
| Camera | Integrated |
| Connectivity | Wi-Fi & Bluetooth |
| Protection Rating | IP54 |
| Weight | Approximately 3.3 lb (1.5 kg), including battery |
| Primary Applications | Alloy Sorting, PMI, Manufacturing QA/QC |
| Optional Equipment | Small-Spot Collimator, Detector Window Protection |
What's Included
- New Hitachi X-MET8000 Expert Handheld XRF Analyzer
- Two Rechargeable Lithium-Ion Batteries
- Battery Charger
- AC Power Adapter
- Spare Measurement Windows
- Alloy Geek Virtual Installation & Training
Optional Accessories
Alloy Geek offers additional accessories and consumables for the Hitachi X-MET8000 series, including:
- Benchtop Test Stands
- Portable Test Stands & Safety Shields
- Replacement XRF Measurement Windows
- Protective Window Accessories
- Additional Batteries & Chargers
- Holsters & Carrying Accessories
- Certified Reference Materials (CRMs)
- XRF Sample Preparation Supplies
Frequently Asked Questions
What is the difference between the Hitachi X-MET8000 Expert and other X-MET8000 models?
The X-MET8000 Expert features advanced light element analysis, making it particularly useful for applications requiring magnesium, aluminum, silicon, phosphorus, and sulfur measurements.
This expands its capabilities for aluminum sorting, magnesium alloys, and other materials where light element chemistry contributes to grade identification.
Can the X-MET8000 Expert identify aluminum 6061 and 6063?
Yes. The X-MET8000 series supports aluminum alloy sorting, including separation of common grades such as 6061 and 6063 using light element analysis.
Can this analyzer identify stainless steel?
Yes. The X-MET8000 Expert can identify a wide range of stainless steels, including common 300-series and 400-series alloys, duplex stainless steels, and specialty grades.
Its light element capabilities can also assist with certain grade separations, such as 303 and 304 stainless steel, where sulfur measurements can be useful.
Can the X-MET8000 Expert measure magnesium and silicon?
Yes. The Expert supports analysis of magnesium (Mg), aluminum (Al), silicon (Si), phosphorus (P), and sulfur (S), in addition to heavier elements.
Does the X-MET8000 Expert require helium or argon for light element analysis?
No. The analyzer performs light element analysis without requiring an external helium or argon supply.
Can this analyzer perform PMI?
Yes. The X-MET8000 Expert is well suited for positive material identification, alloy verification, manufacturing QA/QC, incoming material inspection, and industrial maintenance applications.
What is the difference between Alloy Mode and Alloy+ Mode?
Standard Alloy Mode provides elemental analysis and alloy grade identification for routine industrial sorting and PMI.
Alloy+ incorporates empirical calibration to improve quantitative accuracy for selected applications, particularly copper alloy analysis.
Can I add custom alloy grades?
Yes. The X-MET8000 platform supports customizable alloy grade libraries, allowing users to add grades for specialized materials or internal specifications.
Does surface condition affect XRF results?
Yes. Paint, coatings, corrosion, plating, dirt, and other surface contamination can affect XRF measurements.
For accurate quantitative analysis, the measurement surface should be clean and representative of the underlying material.
Can the X-MET8000 Expert measure carbon?
No. Handheld XRF cannot directly measure carbon. Applications requiring carbon analysis may require another analytical technique, such as laser-induced breakdown spectroscopy (LIBS) or optical emission spectroscopy (OES).
Purchase Your Hitachi X-MET8000 Expert from Alloy Geek
Alloy Geek specializes in handheld XRF analyzers, industrial material identification, certified reference materials, accessories, and technical support.
Whether you're sorting scrap metal, verifying manufacturing materials, or performing industrial PMI, we can help you select the right XRF analyzer and analytical configuration for your application.
Contact Alloy Geek at 919-400-1216 or sales@alloygeek.com for product information, availability, accessories, and application support.
