Description
The Hitachi X‑MET8000 Optimum handheld XRF analyzer is a cost-effective way to deliver rapid, lab-grade elemental analysis across a wide range of applications—PMI, manufacturing QA/QC, scrap metal recycling, precious metals analysis, regulatory compliance, consumer goods analysis, and more. Rugged, intuitive touchscreen, and lightweight (~1.5 kg with battery), it's designed for field and lab use alike.
This listing is pre-configured for consumer goods and regulatory compliance. The Hitachi X-MET8000 Optimum supports multiple applications, and this listing is configured correctly for the requirements for this use case.
Looking for the right handheld XRF analyzer for your application?
Browse our full lineup of new handheld XRF analyzers.
Features![]()
- X-ray tube: 40kV or 50kV
- X-ray tube filters: 6 position filter changer
- Detector: Large area SDD
- Max. sample temperature: 100ºC or 400ºC with heat resistant window (optional)
- IP54 rating
- Protection against detector window damage: Optional window shield
- Calibrations: Standardless (includes light elements analysis)
- Integrated camera
- Small-spot collimator
- 6-position filter wheel for the optimized analysis of all elements from Mg to U
- 2 Year Warranty
What You’re Buying from Alloy Geek
This is the Hitachi X-MET8000 Optimum handheld XRF analyzer configured specifically for your use case, with the correct modes, apps, and accessories to support your exact application in the lab or the field.
- Hitachi X-MET8000 Optimum analyzer configured for consumer goods and regulatory compliance
- Batteries, Rechargeable Li-Ion, Hot Swappable
- Battery Charger
- Replacement Measurement Windows

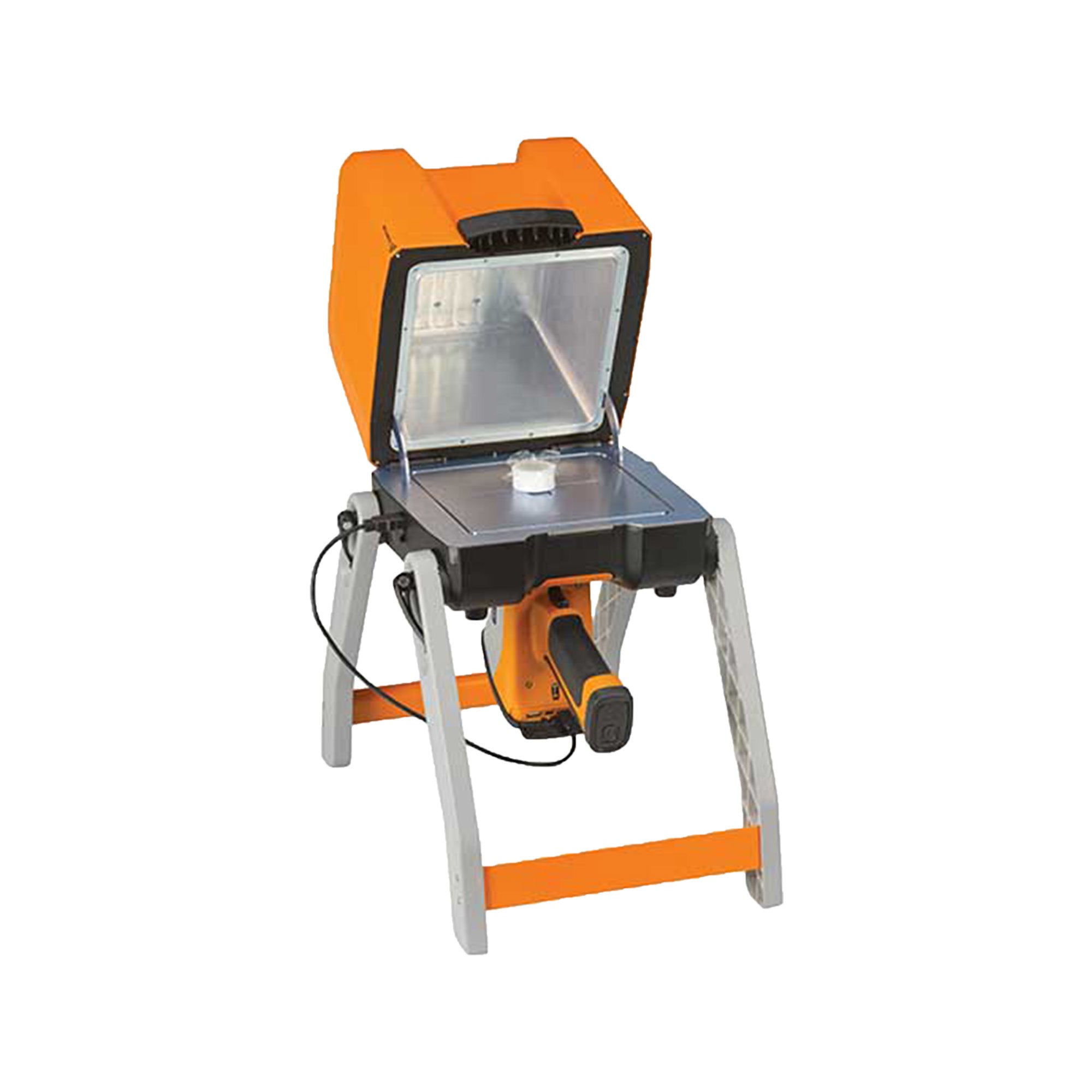

- Test stand (optional add-on)
- Rugged Carrying Case
- Alloy Geek Installation and User Training
Compliance Standards Supported
- EU RoHS Directive (2011/65/EU)
- China RoHS / ACPEIP
- Japan RoHS
- Korean RoHS Directive
- WEEE Directive
- CPSIA (HR4040)
- ASTM F963 toy safety standard
- California Proposition 65
- IEC 62321-3-1 and ASTM F2617-15
- Halogen-free per IEC 61249-2-21
What You Can Screen with the Hitachi X-MET8000 Optimum
Small Components and Circuit Boards
Target individual solder joints, SMD devices, connector pins, and component leads with precision. Stage boards for stable, reproducible measurements across repeated samples.
Incoming Component and Material Inspection
Screen connectors, cables, housings, fasteners, plated components, and metal parts across a wide range of material types.
Consumer Products and Toys
Screen painted surfaces, plastic parts, metal components, and apparel hardware for lead, cadmium, and restricted substances. Accepted for EU RoHS, WEEE, CPSIA, and ASTM F963 toy safety screening programs.
What Metals Can the X-MET8000 Optimum Analyze?
The Hitachi X-MET8000 Optimum is especially effective for identifying alloys if the alloy package is selected including:
- Stainless steels
- Nickel alloys
- Low alloy steels
- Tool steels
- Copper alloys
- Brass
- Bronze
- Titanium alloys
- Cobalt alloys
- Zirconium alloys
- High temperature alloys
- Mixed industrial scrap
The system includes extensive alloy grade libraries with over 1,600 preloaded alloy grades including AISI, DIN, JIS, and GB standards. Users can also add custom grades and proprietary alloy libraries.
Important Hitachi X-MET8000 Model Differences
|
Model |
X-ray Tube |
Filters |
Elements |
Detector |
Sample Temp |
Window Protection |
Warranty |
|
X‑MET8000 Smart |
40 kV |
Single |
K–U |
Large-area SDD |
100 °C |
Kapton window |
1 yr |
|
X‑MET8000 Optimum |
40/50 kV |
6-position wheel |
Mg–U |
Large-area SDD |
100 °C (400 °C optional HERO™) |
Optional shield |
2 yr |
|
X‑MET8000 Expert |
50 kV |
6-position wheel |
Mg–U |
Large-area SDD |
100 °C (400 °C optional HERO™) |
Optional shield |
2 yr |
*Warranty may vary and must be confirmed at time of order.
Why Customers Choose the Hitachi X-MET8000 Optimum
Fast Startup & Rapid Results
The analyzer powers up quickly and delivers alloy identification results in seconds, helping operators move material faster and increase throughput.
Rugged Industrial Design
The Hitachi X-MET8000 Optimum is IP54 rated and tested to MIL-STD-810G ruggedness standards for demanding industrial environments.
Large Touchscreen Interface
The bright touchscreen is glove-friendly and easy to read in outdoor conditions and scrapyard environments.
Lightweight & Ergonomic
At approximately 1.5 kg including battery, the analyzer is designed for comfortable all-day use.
Long Battery Life
Up to 10-12 hours of battery runtime helps reduce downtime and keeps operators productive throughout the workday.
Data Management & Reporting
Store up to 100,000 test results and export reports via USB, WiFi, or Bluetooth. Results can be generated in CSV or tamper-resistant PDF formats for QA/QC documentation and traceability.
What’s Included in a Quoted Configuration
When requesting a quote through Alloy Geek, the configuration is tailored to your operation and may include:
- Hitachi X-MET8000 Optimum handheld XRF analyzer pre-configured for Metal Sorting
- Appropriate software modes and element suites
- Battery and charging solutions
- Recommended accessories (sample cups, films, test stands, carry cases, etc.)
- Lead time, shipping, and required compliance documentation
- Virtual installation training
Final configuration details are confirmed during the quote process.
Alloy Geek Support
Alloy Geek helps customers select the right handheld XRF analyzer for their specific alloy identification and metal analysis applications. We support customers across scrap recycling, PMI inspection, manufacturing QA/QC, and metal verification industries with equipment sourcing, application guidance, rentals, and training support.
→ Handheld XRF Analyzer Collection
→ XRF Analyzer Rentals
→ Scrap Metal Recycling XRF Analyzers
→ PMI Handheld XRF Analyzers
→ Portable XRF Analyzer Collection
→ Pre-Owned Handheld XRF Analyzers
→ Hitachi X-MET8000 XRF Accessories
→ Hitachi XRF Analyzer Collection
Documents
Application Specific Brochures
- Scrap Metal / Recycling with the Hitachi X-MET8000
- PMI Inspection with the Hitachi X-MET8000
- Precious Metals Analysis with the Hitachi X-MET8000
- QAQC with the Hitachi X-MET8000
To Request a Quote
- Request a Quote Online
- Call us at 919-400-1216
- Email us at sales@alloygeek.com
While Alloy Geek holds a limited stock of handheld XRF analyzers, parts, and accessories, your order and lead time will be confirmed at time of order.
