Description

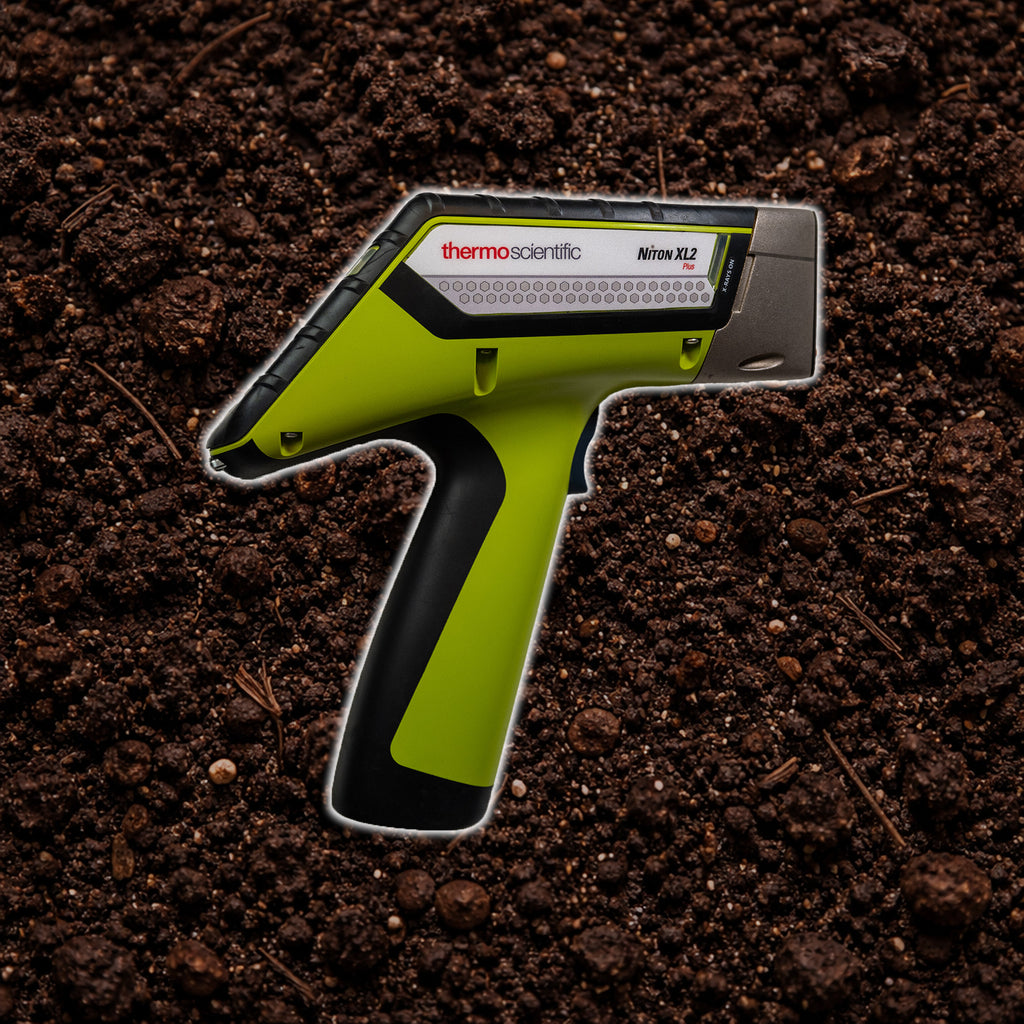

The Niton XL2 Plus Handheld XRF Analyzer is a practical, budget-friendly option for soil contamination screening and field-based elemental analysis. It is commonly used for preliminary soil testing where fast, on-site results are needed to guide sampling decisions before laboratory analysis.
Designed for environmental site work, the XL2 Plus allows teams to screen soil for heavy metals directly in the field, helping identify areas of concern and reduce unnecessary lab submissions. It is well suited for routine soil screening, smaller projects, and organizations that need reliable field data without the cost of higher-end systems.
The XL2 Plus is often chosen for Phase I/II site support, environmental investigations, and general soil screening where immediate elemental information improves efficiency and decision-making.
Alloy Geek supplies handheld XRF analyzers configured for environmental, industrial, and field-based testing applications, including higher-performance options like the Niton XL5 Plus for soil contamination screening.
Key Benefits for Soil Screening
- Cost-effective handheld XRF option for soil contamination screening
- Field-based, non-destructive elemental analysis
- Fast results to support real-time decisions on site
- Suitable for screening common soil contaminants such as lead, arsenic, chromium, and other heavy metals
- Portable, rugged design for environmental and industrial field use
- Supports field-based soil screening when used with appropriate QA/QC procedures
Applications
- Preliminary soil contamination screening
- Environmental site assessments and due diligence
- Field identification of heavy-metal-impacted areas
- Support for remediation planning and sampling strategies
- On-site decision support prior to confirmatory laboratory testing
Recommended Accessories
- Soil sample cups and XRF film (not included)
- Portable or desktop test stand for improved repeatability
- Spare batteries and charging accessories
- Protective detector measurement windows
- Carry case or field backpack
Because soil testing needs vary by site and project, accessories are often selected based on how the analyzer will be used in the field.
Included Analytical Modes
This configuration is focused on soil screening applications. Included Modes:
- Soils Mode
Optional Modes (Available as Add-Ons)
- General Metals
- Mining Mode
- Precious Metals
- User Mode (custom calibration)
Soils Mode – Typical Elements
Typical elements screened in Soils mode may include:
Ag, As, Ba, Ca, Cd, Co, Cr, Cu, Fe, K, Mn, Ni, Pb, S, Sb, Sc, Se, Sn, Sr, Ti, V, Zn
Actual detection capability depends on soil matrix, preparation, and measurement time.
Core Hardware Overview
- Handheld X-ray tube with adjustable excitation up to ~45 kV
- Silicon drift detector (SDD)
- Touchscreen interface
- Internal data storage and reporting tools
- USB and wireless data transfer options
- Compatible with soil accessories and test stands
Technical Specifications
| Specification | Details |
|---|---|
| Weight | ~3 lb with battery |
| X-Ray Source | Ag anode X-ray tube, up to ~45 kV |
| Detector | Silicon drift detector (SDD) |
| Analytical Range | Mg–U (see mode for specific elemental range) |
| Display | Color touchscreen |
| Data Transfer | USB, Bluetooth |
| Power | Rechargeable lithium-ion battery |
| Operating Temp | Field-rated for environmental use |
| Compliance | CE, RoHS, FCC |
What’s Included
- Niton XL2 Plus Handheld XRF Analyzer
- Soils Mode calibration
- x2 Rechargeable Li-Ion batteries
- Battery charger
- Protective carry case
- Niton software and PC connectivity tools
- Manufacturer warranty
- Virtual Alloy Geek Training and Installation
Frequently Asked Questions
Can the Niton XL2 Plus be used for soil contamination screening?
Yes. The XL2 Plus is commonly used for field screening of soil to identify the presence of heavy metals and guide sampling decisions prior to laboratory analysis.
Is the XL2 Plus suitable for RCRA-related soil screening?
The XL2 Plus can be used to screen for several metals commonly evaluated in environmental investigations. As with all handheld XRF systems, results are typically used for screening and decision support rather than regulatory reporting.
Documents
- Thermo Scientific Niton XL2 980 Plus Brochure
- Thermo Scientific Niton XL2 980 Plus Spec Sheet
- Thermo Scientific Niton XL2 980 Plus Limits of Detection - Soil
- Thermo Scientific Niton XL2 980 Plus Manual
