Description

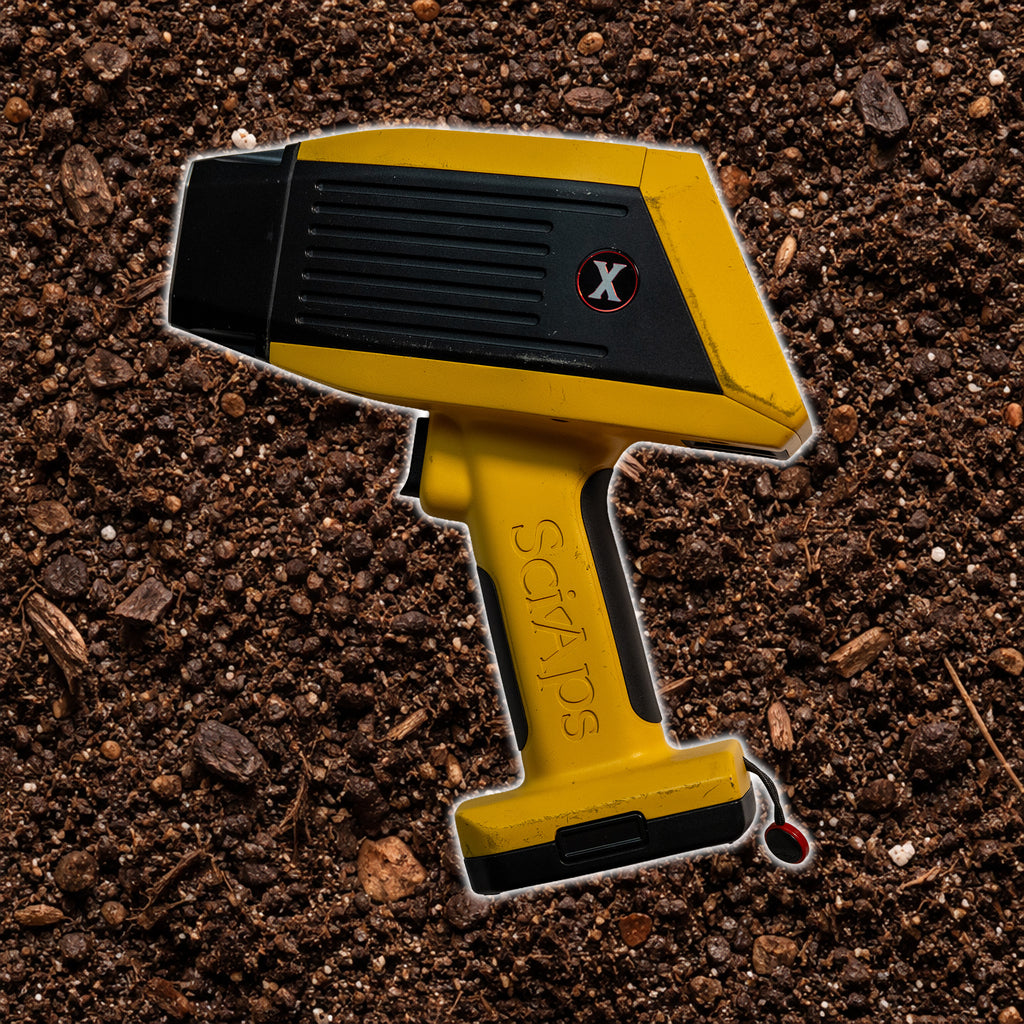

SciAps X-200 Handheld XRF Analyzer Custom Configured to Your Application
The SciAps X-200 Handheld XRF Analyzer is a high-performance handheld XRF designed for fast, in-field soil contamination screening where immediate results matter. Powered by a 5-watt X-ray tube operating up to 50 kV, the X-200 delivers rapid elemental results—often in seconds—allowing environmental professionals to make decisions on site without waiting for laboratory turnaround.
The X-200 is commonly used during environmental site assessments to screen soil for heavy metals before committing samples to lab analysis. This helps identify areas of concern, locate potential hotspots, and reduce unnecessary laboratory submissions during Phase I / Phase II investigations and remediation projects.
This listing is a quote-based configuration page. The SciAps X-200 platform supports multiple applications, and requesting a quote ensures the analyzer is configured correctly for soil testing, including the appropriate software, element suite, and accessories for how the instrument will be used in the field.
Looking for the right handheld XRF analyzer? Browse our new handheld XRF analyzers!
Key Benefits for Soil Screening
- 5W X-ray tube operating up to 50 kV for efficient excitation of heavy elements
- Fast, non-destructive soil screening with results in seconds
- Suitable for detecting common soil contaminants such as lead (Pb), arsenic (As), chromium (Cr), copper (Cu), zinc (Zn), and related metals
- Compact, lightweight handheld design for extended field use
- Supports field-based soil screening when used with appropriate QA/QC procedures
- Reduces unnecessary lab testing by guiding smarter sampling decisions
Applications
- Soil contamination screening
- Environmental site assessments and due diligence
- Identification of heavy-metal-impacted areas
- Support for remediation planning and sampling strategies
- On-site decision support prior to confirmatory laboratory testing
Recommended Accessories (Not Included)
- Soil sample cups and XRF film for fine or bagged samples
- Portable or desktop test stand for improved repeatability
- Spare batteries and charging solutions
- Protective detector window films
- Carry case or field backpack
Because soil testing needs vary by site and project, accessories are typically selected based on how the analyzer will be used in the field.
Included Analytical Modes
This configuration is focused on soil contamination screening.
Included Mode
- Soils Mode
Optional Modes (Available as Add-Ons)
- Mining/Geochem Mode
- General Metals Mode
- Precious Metals Mode
- RoHS Mode
Soils Mode – Typical Elements
Typical elements screened in Soils mode may include:
- Ag, Al, As, Ba, Bi, Cd, Co, Cr, Cu, Fe, Hg, Mg, Mn, Mo, Ni, P, Pb, Rb, S, Sb, Se, Si, Sn, Sr, Ti, Tl, V, W, Zn, Zr
Actual detection capability depends on soil matrix, preparation, and measurement time.
Core Hardware Overview
- 5W handheld X-ray tube, up to 50 kV (configuration dependent)
- 20 mm² silicon drift detector (SDD)
- Compact, rugged handheld design
- Hot-swap rechargeable lithium-ion battery
- Wi-Fi, Bluetooth, USB connectivity; GPS capable
- Multi-position filter system for beam optimization
Technical Specifications
| Specification | Details |
|---|---|
| Weight | ~3.1 lb with battery |
| X-Ray Source | 5 W tube, up to 50 kV |
| Detector | 20 mm² SDD |
| Analytical Range | Mg–U (see mode for element specifics) |
| Power | Rechargeable Li-ion battery, hot-swap capable |
| Connectivity | Wi-Fi, Bluetooth, USB, GPS capable |
| Design | Compact, rugged handheld |
What’s Included in this Configuration
When requesting a quote through Alloy Geek, the configuration is tailored to your soil testing needs and may include:
- SciAps X-200 handheld XRF analyzer
- Soil Mode Enabled
- Desktop Software
- x2 Rechargeable Li-Ion Batteries
- Battery Charger
- Alloy Geek virtual installation and training
Soil sample cups, cup film, test stand, not included.
Frequently Asked Questions
Can the SciAps X-200 be used for soil contamination screening?
Yes. The X-200 is commonly used for in-field screening of soil to detect heavy metals and guide environmental sampling decisions before laboratory analysis.
Is handheld XRF accepted for environmental soil screening?
Handheld XRF is widely used for screening and decision support during environmental investigations and is referenced in EPA Method 6200 work when used with appropriate QA/QC. Confirmatory laboratory testing is typically required for regulatory reporting.
Accessories & Consumables
Consistent soil testing performance depends on having the right accessories in place. Many users plan for:
- Spare batteries and chargers
- Measurement window replacement films
- Sample cups and films for soils and powders
- Test stands for longer test times and improved repeatability
- Carry cases or backpacks for field work
Compatible options can be included with your quote or sourced through the SciAps X-200 parts and accessories collection.
Request a Quote
To receive an accurate quote, please include:
- Primary application (soil contamination screening)
- Typical soil types and materials
- Elements of interest or regulatory concerns
- Testing environment (field, site assessment, remediation project)
- Desired timeline and shipping destination
