Portable Ore, Soil & Rock Pulverizer for Mining, Exploration & Handheld XRF Analysis
The Alloy Geek Portable Rock Pulverizer is a compact, field-ready solution for preparing geological samples for handheld XRF analysis in mining and mineral exploration environments. Designed for rapid, dry pulverization of rock, soil, gravel, and ore, this system enables consistent, repeatable sample preparation directly in the field, reducing reliance on lab turnaround times.
This custom, German-made design is engineered for durability, portability, and precision—making it ideal for gold, silver, copper, iron ore, and polymetallic exploration workflows where fast, defensible XRF data matters.
Designed for Handheld XRF in the Field
Handheld XRF performance is highly dependent on sample homogeneity and particle size. The Alloy Geek Portable Rock Pulverizer allows exploration teams to:
- Reduce sample heterogeneity
- Improve repeatability between measurements
- Minimize surface bias and coarse-grain effects
- Generate more defensible, lab-correlated XRF results
This system is purpose-built for field sample preparation, not hobby crushing or wet milling.
Sample Capability & Performance
- Maximum feed size: Up to 1 inch (smaller material processes faster and more uniformly)
- For larger rocks, simply break them up with a crusher or hammer before placing them inside the pulverizer!
- Typical sample volume: ~1 cup of material
- Materials processed:
- Rock
- Ore
- Gravel
- Sand
- Dry soil
- Mohs hardness: Up to 8 (quartz)
- Typical run time: ~30 seconds per sample
- Pulverization method: Dry grinding (no additives or liquids required)
This makes the system ideal for rapid preparation of exploration-grade samples prior to handheld XRF measurement.

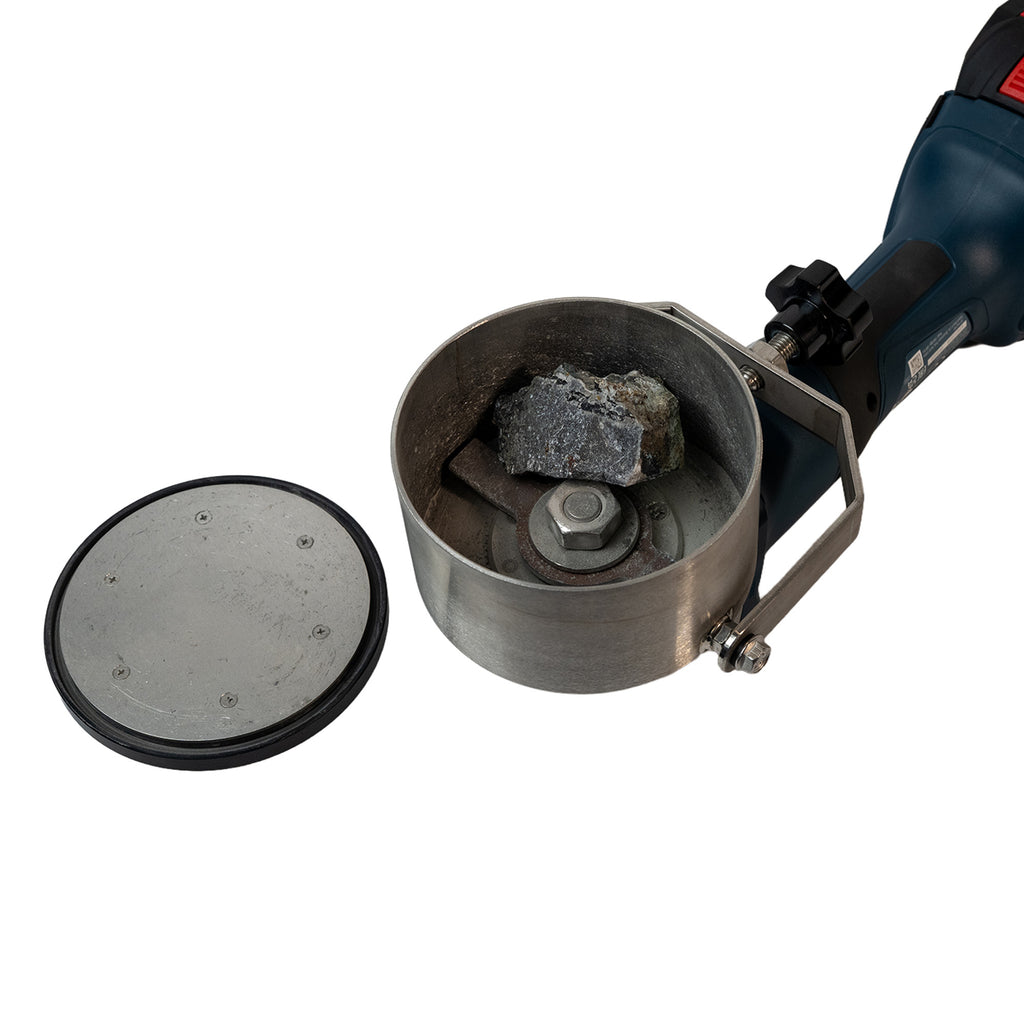

Hardened Blade & Drum System
- Specialized hardened steel blades designed for abrasive mining materials
- Sealed stainless steel drum prevents sample loss and cross-contamination
- Hand-screw lid closure ensures secure sealing during operation
- Optimized for consistent particle reduction suitable for XRF analysis
- The sealed design supports cleaner operation and safer handling in field conditions.
Specifications
| Specification | Details |
|---|---|
| Pulverizer Drum Diameter | 4.5 in (114 mm) |
| Pulverizer Drum Depth | 2.5 in (64 mm) |
| Typical Sample Capacity | ~1 cup of material |
| Maximum Feed Size | Up to 1 in (25 mm) |
| Recommended Feed Size | Smaller material for faster, more uniform pulverization |
| Pulverization Method | Dry grinding (no additives or liquids) |
| Blade Material | Specialized hardened steel |
| Maximum Material Hardness | Up to Mohs 8 (quartz) |
| Typical Run Time | ~30 seconds per sample |
| Drum Construction | Sealed stainless steel with hand-screw lid |
| Tool Weight (without battery) | ~5 lbs |
| Tool Weight (with battery) | ~7 lbs |
| Power Platform | 18V Bosch system |
| Charger Plug Type | US outlet (international users require local charger) |

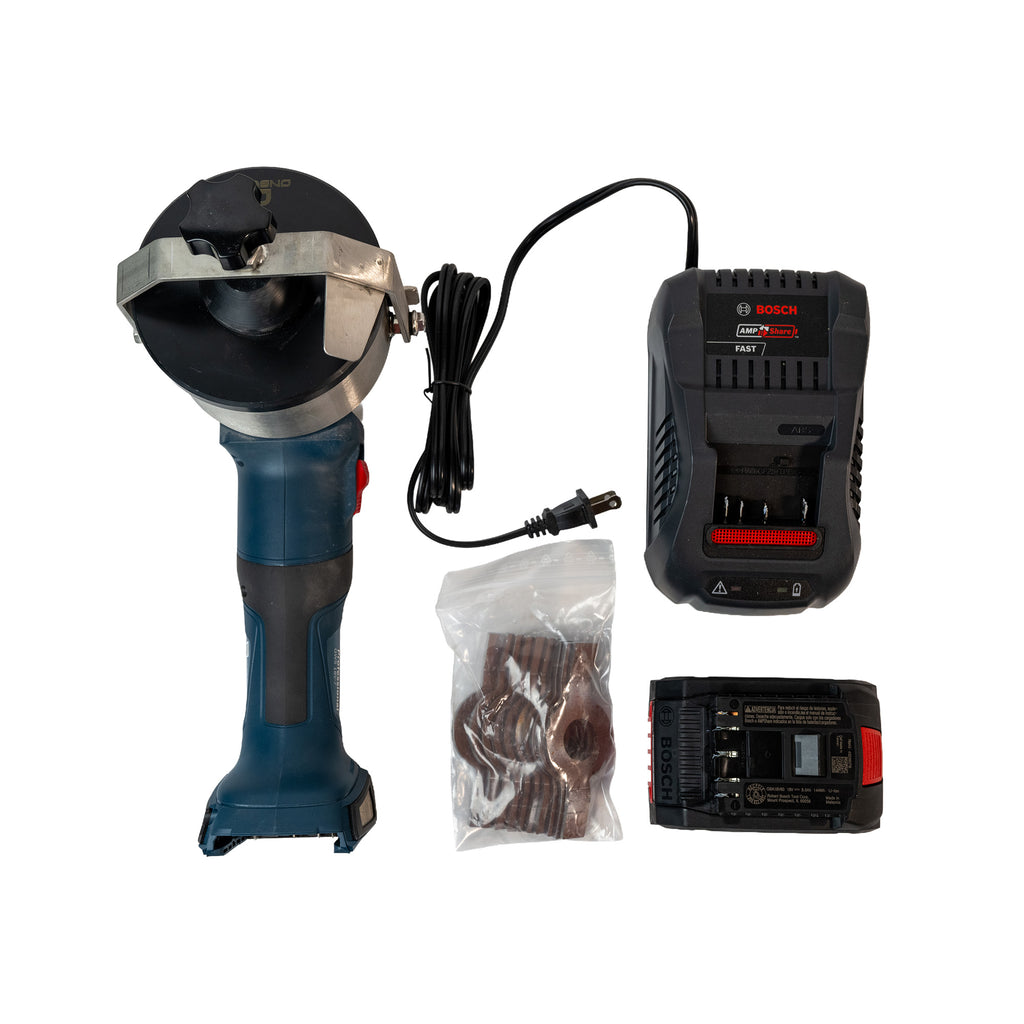

What’s Included
Each Alloy Geek Portable Rock Pulverizer kit includes:
- Bosch 18V Angle Grinder
- One 18V Battery
- One Battery Charger (US outlet)
- Custom stainless steel pulverizing tumbler
- Custom mounting and drive attachments

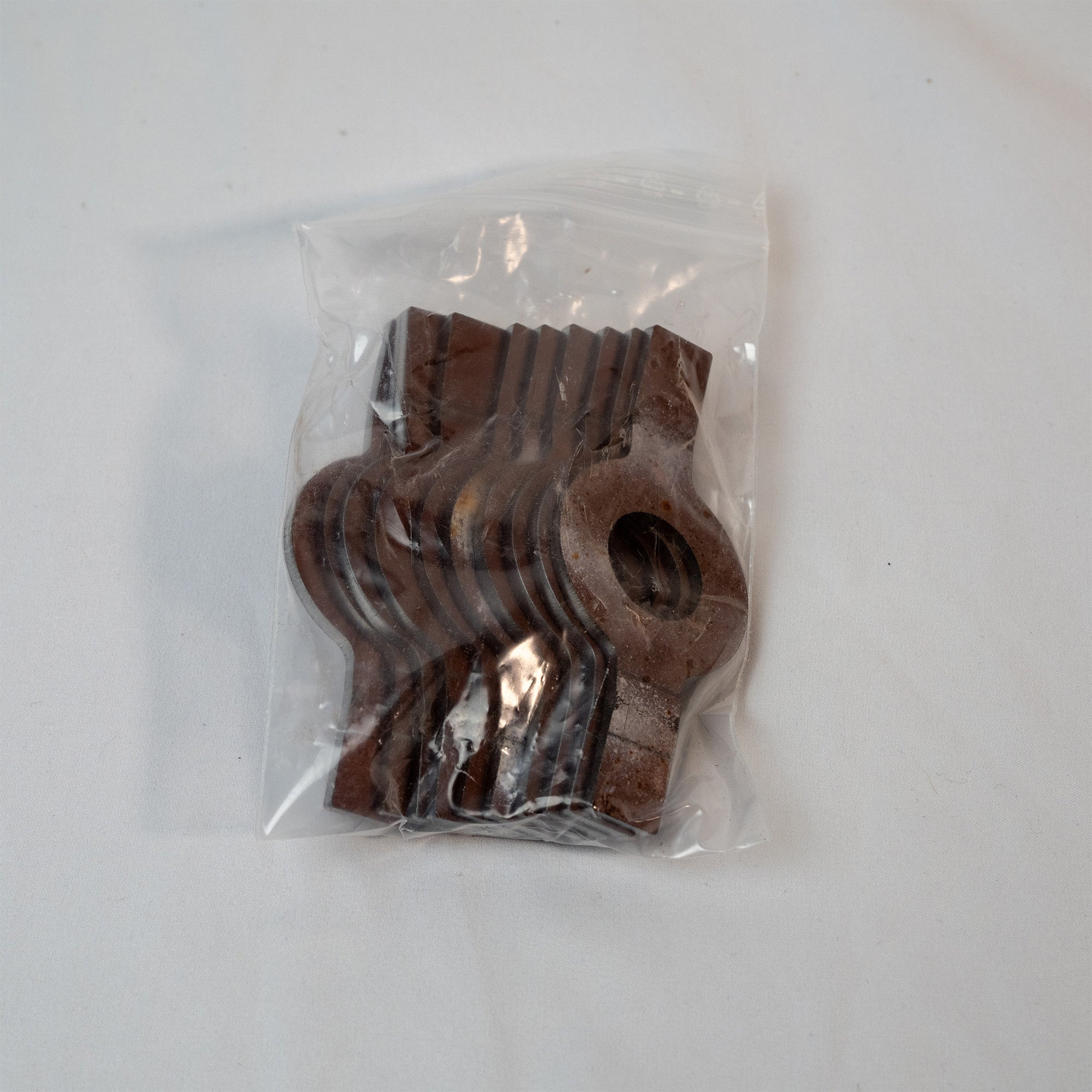

- 10 replacement hardened steel blades
- Tools for:
- Blade replacement
- Tumbler adjustment
- Spare gaskets and consumables
This is a complete, field-ready system—not a partial or DIY solution.
Typical Applications
- Gold exploration and grade control
- Silver ore screening
- Copper and base-metal exploration
- Iron ore sampling
- Polymetallic sulphide systems
- Field QA/QC for handheld XRF
- Rapid decision-making during drilling or trenching
Why Mining & Exploration Teams Choose Alloy Geek
- Purpose-built for handheld XRF sample preparation
- Handles real mining materials, not just soft soils
- Portable and field-deployable
- No wet chemistry or consumables required
- Improves data quality and confidence in XRF results
- Designed with mining workflows, not lab benches, in mind
Important Use & Handling Notes
- Designed for dry pulverization only
- Smaller feed sizes improve performance and consistency
- Use appropriate PPE when handling fine powders
- Clean drum and blades between samples to avoid cross-contamination
Ideal Pairings
This pulverizer pairs naturally with:
- Handheld XRF analyzers for mining and exploration
- XRF sample cups and films
