Description

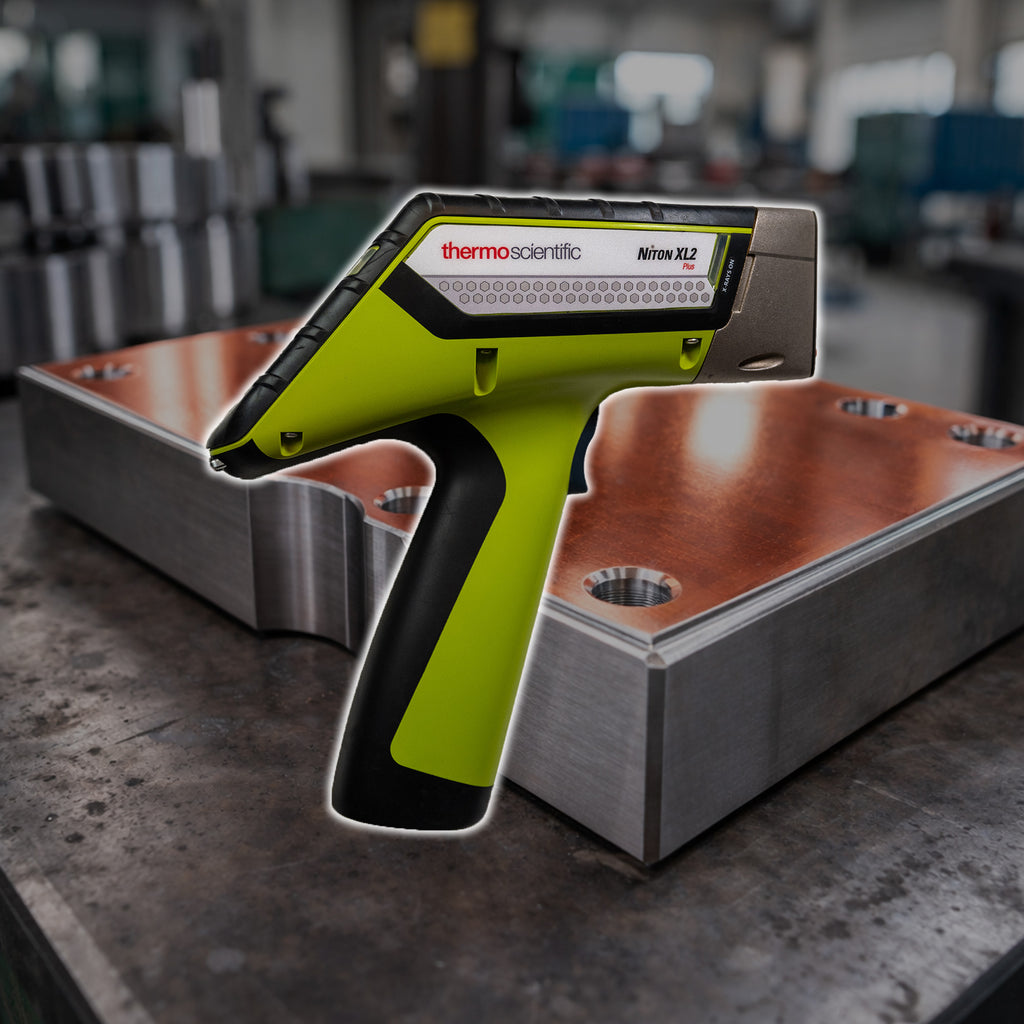

The Niton XL2 Plus Handheld XRF Analyzer is a rugged, field-proven instrument designed for positive material identification (PMI) and coating thickness measurement. This rental configuration is optimized for customers who need fast alloy verification and non-destructive coating analysis—whether in manufacturing, scrap recycling, plating operations, or QA/QC environments.
Built with a 45 kV X-ray tube and Silicon Drift Detector (SDD), the XL2 Plus delivers reliable elemental analysis across a wide range of metals while maintaining simple, point-and-shoot operation.
This is a turnkey rental solution from Alloy Geek, ready to deploy with training, support, and fast delivery.
Rental Options
- $4,995 / month
- $1,495 / week
Included with Rental:
- Niton XL2 Plus analyzer (Coatings + General Metals modes)
- Batteries + charger
- Carrying case
- Virtual installation & training session
- Alloy Geek support during rental period
Requirements Prior to Shipment:
- Payment
- Signed rental agreement
- Valid government-issued photo ID
Metals Identification (PMI & Alloy Analysis)
The XL2 Plus is built for fast, accurate alloy identification across a wide range of applications—from scrap sorting to manufacturing QA.
What It Does
- Identifies alloy grades in seconds
- Detects tramp and trace elements
- Supports sorting, verification, and compliance work
- Works across Mg to U elemental range
Core Capabilities
- General metals calibration includes elements such as: Ti, V, Cr, Mn, Fe, Co, Ni, Cu, Zn, Nb, Zr, Mo, Ag, Cd, Sn, Sb, W, Pb, Bi, Mg, Al, Si, P, S
- Built-in alloy libraries for most commercially available alloys
- Custom grade libraries supported
Performance
- Low limits of detection (ppm-level sensitivity depending on matrix and test time)
- Typical test time: 2–5 seconds
Ideal Use Cases
- Incoming material verification
- Weld and fabrication QA
- Foundries or metal manufacturing operations
- Plating/coatings shops
Coatings Thickness Measurement (Non-Destructive XRF)
The XL2 Plus Coatings Mode enables non-destructive thickness measurement of plated and coated metals directly on the part.
What It Does
- Measures coating thickness or coating weight
- Works on single-layer and multi-layer coatings
- Eliminates need for destructive testing or lab analysis
Typical Applications
- Zinc over steel (galvanized)
- Nickel plating
- Chrome plating
- Copper / nickel / chrome stacks
- Electroless nickel coatings
- Phosphate coatings
How It Works
- Uses Fundamental Parameters (FP) calibration
- User defines:
- Substrate material
- Coating layers
- Thickness units (µm, mils, etc.)
- Can be standardized using known samples for high accuracy
Measurement Limits
Coating thickness depends on element (example limits):
- Au: ~10 µm
- Ni / Cu: ~20 µm
- Zn: ~50 µm
- Sn: ~100 µm
Infinite Coating Thickness (Maximum Measurable Thickness)
Note: If coating thickness exceeds these values, the analyzer will report “Saturated.”
| Coating Element | Substrate | Infinite Thickness (microns) | Infinite Thickness (mil) |
|---|---|---|---|
| Au | Cu | 10 | 0.4 |
| Cd | Al | 75 | 3 |
| Cd | Fe | 75 | 3 |
| Co | Fe | 50 | 2 |
| Co | Ti | 50 | 2 |
| Cr | Fe | 15 | 0.6 |
| Cu | Fe | 20 | 0.8 |
| Mo | Fe | 50 | 2 |
| Mo | Ti | 60 | 2.4 |
| Ni | Fe | 50 | 2 |
| Pt | Cu | 15 | 0.6 |
| Sn | Fe | 100 | 4 |
| Ti | Fe | 50 | 2 |
| Zn | Fe | 50 | 2 |
| Zr | Al | 70 | 2.8 |
Key Advantage
Real-time, at-line measurement—no cutting, no lab delays, no guesswork.
Why Rent from Alloy Geek
- Fast deployment – get an analyzer in days, not weeks
- Expert support – real-world XRF guidance (not generic support)
- Flexible terms – weekly or monthly options
- Purchase option available after rental
This rental is ideal for:
- Short-term projects
- Equipment trials before purchase
- Overflow demand or seasonal work
Technical Highlights
- X-ray Tube: 6–45 kV, 2W (Ag anode)
- Detector: Silicon Drift Detector (SDD)
- Elemental Range: Mg to U
- Spot Size: ~8 mm
- Weight: ~3.4 lbs
- IP Rating: IP54 (dust & splash resistant)
- Data Storage: >10,000 readings with spectra
- Connectivity: USB, Bluetooth
Who This Rental Is For
- Manufacturers performing PMI or QA checks
- Plating shops measuring coating thickness
- Inspectors needing portable, non-destructive testing
Frequently Asked Questions
Can this unit measure both alloy and coatings?
Yes—this configuration includes both General Metals and Coatings Mode.
Do I need training to use it?
No prior experience required. We include virtual training with every rental.
Can I buy the unit after renting?
Yes—apply rental toward purchase in many cases.
Is this HUD-approved for lead paint?
No—this configuration is for metals + coatings, not dedicated lead paint mode.
Documents
- Thermo Scientific Niton XL2 980 Plus Coatings Tech Flash
- Thermo Scientific Niton XL2 980 Plus Brochure
- Thermo Scientific Niton XL2 980 Plus Spec Sheet
- Thermo Scientific Niton XL2 980 Plus Limits of Detection - Alloy
- Thermo Scientific Niton XL2 980 Plus Manual
