Description

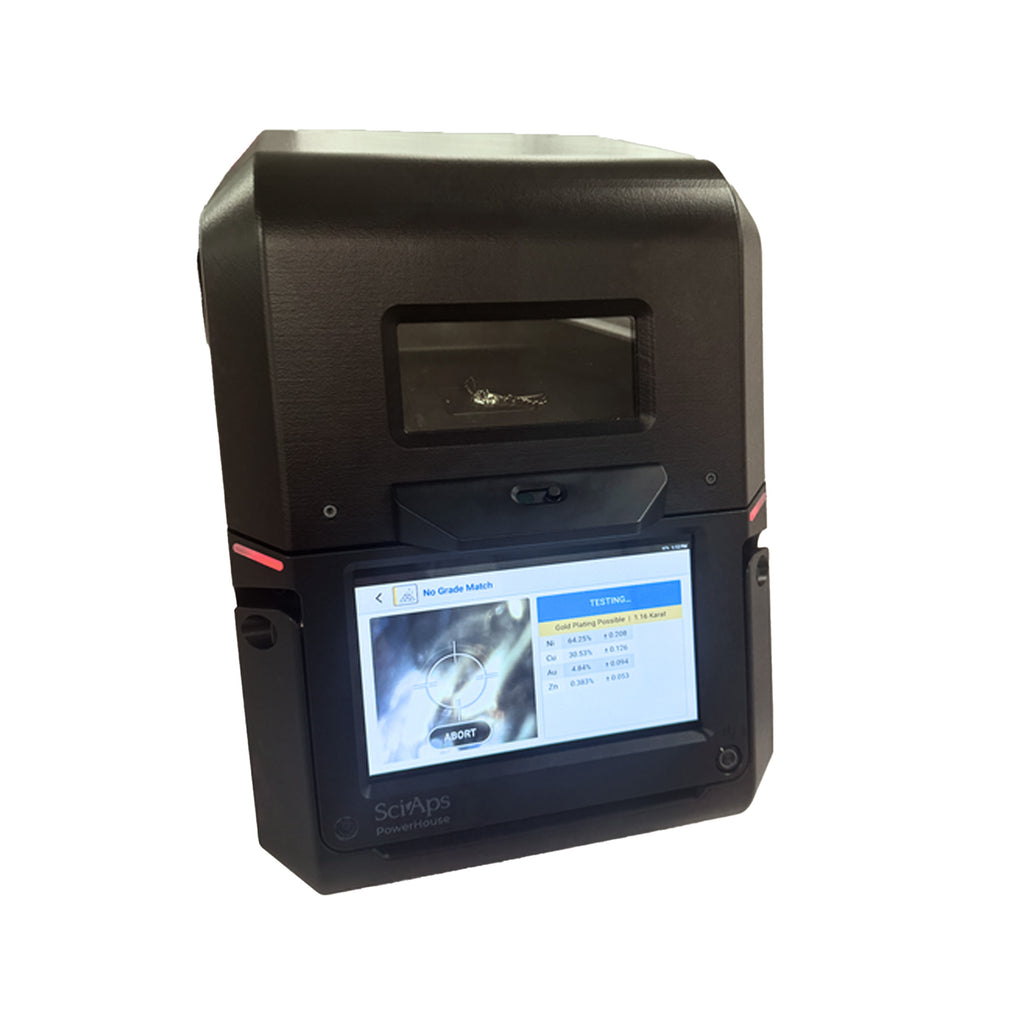

Meet the SciAps PowerHouse PM — the world’s first truly portable, battery-powered benchtop XRF analyzer built for gold karating, precious-metal authentication, and precious metals alloy verification. Engineered for precision, speed, and safety, the PowerHouse PM combines lab-grade accuracy with the mobility and ruggedness today’s professionals demand. Trusted by jewelers, refiners, and precious-metal buyers worldwide, it’s redefining benchtop analysis.
Weighing only 19.35 lbs (8.78 kg) and powered by a high-resolution 7 mm² SDD detector, the PowerHouse PM identifies and quantifies gold (Au), silver (Ag), platinum (Pt), palladium (Pd), rhodium (Rh) and more — providing karat readings in as little as 1 second with ± 0.01 % precision!
Performance
Originally engineered for rare-earth analysis, the PowerHouse PM is now purpose-built for precious-metal and gold content determination.
Featuring a 4 W X-ray tube (40 kV W anode) and silicon drift detector technology, it outperforms older PiN-diode systems while maintaining a compact footprint.
Get results instantly:
- Distinguish 9 K (37.5 %) from 24 K (99.9 %) gold in seconds.
- Identify 4N (99.99 %) vs 3N (99.9 %) gold with unmatched repeatability.
- Plating Alert Technology warns users when a sample is plated or coated — ensuring you’re never fooled by gold-plated or counterfeit materials.
Features
- ⚡ Blazing-fast karat readings — 1 second typical; 10 seconds for fine purity discrimination.
- 🧭 Plating Alert Technology — Detects plated or coated materials instantly.
- 🔬 7 mm² SDD detector (<170 eV FWHM at Mn Kα) for superior precision.
- 🎯 3 mm spot size + targeting scope for pinpoint accuracy on small jewelry or irregular samples.
- 📸 Dual cameras — one for targeting, one for documentation with macro imaging, barcode/QR capture.
- 🔒 Closed-beam design + lead-glass window for complete radiation shielding and visual access.
- 🔋 Battery or AC operation + hot-swap capability for 4–6 hours of field use.
- 💻 Wi-Fi / Bluetooth / USB / GPS connectivity, compatible with SciAps Profile Builder PC Software and cloud data management.
- 🧠 1.2 GHz quad-core ARM Cortex A53 CPU + 7-inch touchscreen for seamless operation.
- 🧰 Built-in Fundamental Parameters calibration, verified with external 316 SS standard.
- 🧱 Rugged, portable chassis with fold-out handle and locking lid for security and mobility.
Analytical Range
The Precious Metals App measures 24 elements standard, including:
Ti, V, Cr, Mn, Fe, Co, Ni, Cu, Zn, W, Ir, Pt, Au, Pb, Bi, Zr, Mo, Ru, Rh, Pd, Ag, Cd, Sn, Sb
Additional elements may be added by request.
Applications
- Gold & Precious-Metal Karating
- Jewelry Authentication & Counterfeit Detection
- Refining & Scrap Evaluation
- Bullion & Coin Verification
- High-Value Alloy Verification (Au-Ag-Pt-Pd-Rh families)
Technical Specifications
| Specification | Description |
|---|---|
| Weight | 19.35 lbs (8.78 kg) with battery |
| Dimensions | 10.1” × 13.8” × 13.4” (256 × 350 × 340 mm) |
| Excitation Source | 4 W X-ray tube (40 kV W anode) |
| Detector | 7 mm² Silicon Drift Detector (< 170 eV FWHM) |
| Display | 7” Color Touchscreen (Adreno 306 2D/3D graphics) |
| Power | 1 Li-ion battery (included) + optional 2nd hot-swappable battery or AC power |
| Battery Life | 4–6 hours (extendable via hot-swap) |
| Operating Temp. | 10 °F – 130 °F (–12.2 °C – 54.4 °C) |
| Connectivity | Wi-Fi, Bluetooth, USB 2.0, GPS, cloud options |
| Calibration | Fundamental Parameters with 316 SS check standard |
| Security | User/admin password protection + locking lid |
| Certifications | CE, RoHS, US FDA registered, Canada RED Act compliant |
Included With Purchase
- SciAps PowerHouse PM Benchtop XRF Analyzer
- One Li-ion battery + charger
- External reference coupon
- Carrying handle + locking lid assembly
- Power adapter and cables (AC + USB)
- SciAps Profile Builder Software suite
- User manual + calibration certificate
Frequently Asked Questions
Q: How fast is the PowerHouse PM for gold testing?
A: Typical results are available in 1 second, and it can differentiate fine gold purities (4N vs 3N) within 10 seconds.
Q: Can it detect plated jewelry?
A: Yes — Plating Alert Technology automatically identifies plated or coated surfaces to prevent false karat readings.
Q: Is it safe to operate without X-ray training?
A: The PowerHouse PM is a fully closed-beam system with built-in safety interlocks, ensuring zero radiation exposure during operation.
Q: Is it truly portable?
A: Absolutely. It weighs under 20 lbs and runs on battery or AC power with hot-swap capability — perfect for use in shops, vaults, and field locations.
Q: What makes it different from a handheld XRF?
A: The benchtop design provides superior stability, safety, and accuracy, while remaining portable. It won’t “walk off” like a handheld and delivers repeatable lab-grade results.
Trusted by Professionals Worldwide
Seen at JCK Las Vegas — hailed as “the best-looking benchtop analyzer out there.” Engineers and buyers agree: the SciAps PowerHouse PM brings unmatched speed, precision, and confidence to precious-metal analysis.
Buy the SciAps PowerHouse PM Today
✅ Fastest karating and precious-metal verification in the industry
✅ Battery-powered mobility with lab-grade accuracy
✅ Trusted by refiners, jewelers, and metallurgists worldwide
Available now from Alloy Geek — Your Source for XRF and LIBS Technology.
