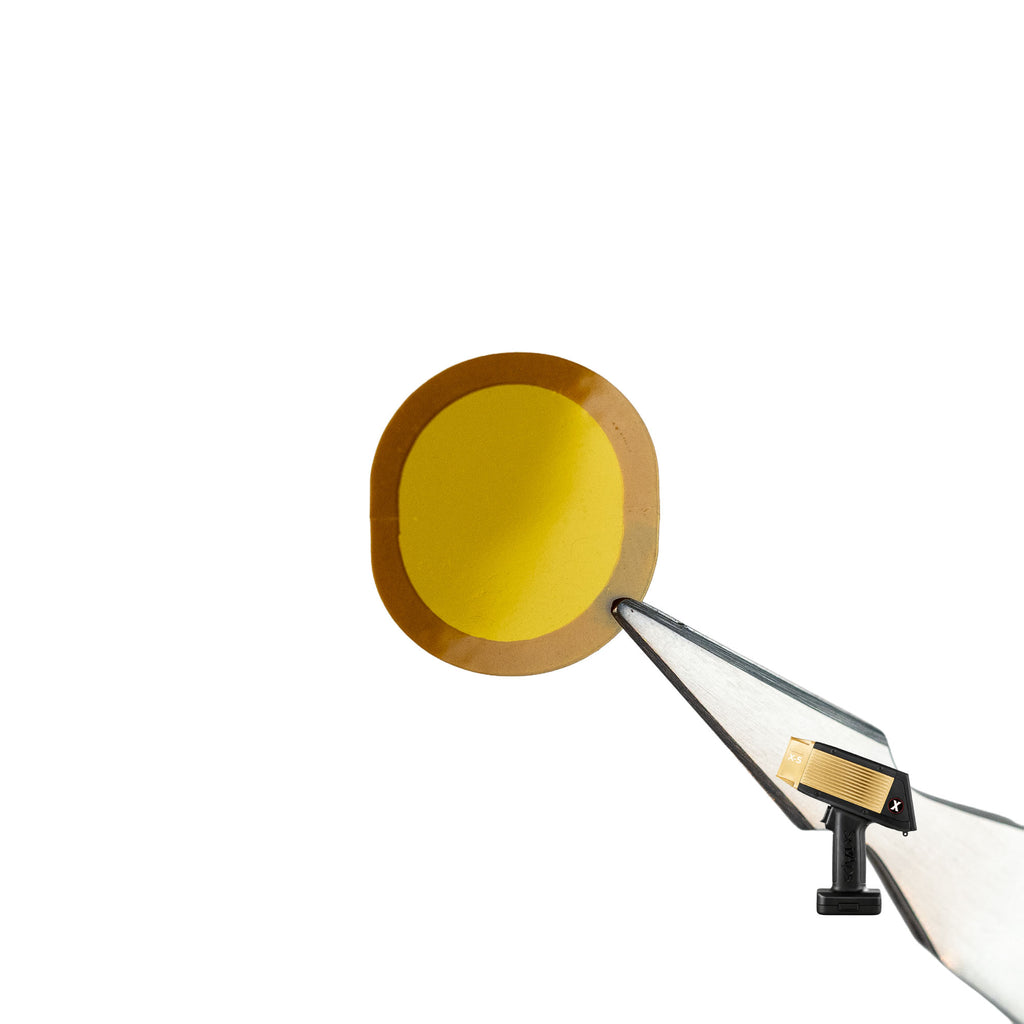

SciAps X-5 Replacement Kapton Measurement XRF Window

The SciAps X-5 replacement Kapton measurement window is designed to protect the detector assembly of the SciAps X-5 handheld XRF analyzer while allowing X-rays to pass through for accurate elemental analysis during alloy identification, PMI inspection, and precious metals testing.

Measurement windows are a consumable component in handheld XRF analyzers and may require replacement over time due to punctures, wear, or contamination during normal operation.

Replacing damaged measurement windows helps maintain reliable analytical performance and protects sensitive internal components of the analyzer.

This replacement Kapton window is designed for use with the SciAps X-5 XRF platform and is commonly kept in inventory by operators performing frequent handheld XRF measurements.

How-to Change the XRF Window for the SciAps X-5

This video demonstrates the window replacement procedure using the SciAps X-550, but the process is the same for the SciAps X-5 Kapton measurement window.

Key Features

• Designed for the SciAps X-5 handheld XRF analyzer
• Protects the detector from dust, debris, and sample contact
• Maintains accurate elemental analysis performance
• Durable Kapton window material used in handheld XRF systems
• Essential consumable for regular instrument maintenance

Fun Fact: Kapton measurement windows are widely used in handheld XRF analyzers because they allow X-rays to pass through while protecting sensitive detector components.

When Should an XRF Window Be Replaced?

Measurement windows may need replacement if they become:

• Punctured or torn
• Contaminated by powders, liquids, or debris
• Worn from repeated sample contact
• Damaged during field operation

Replacing a damaged window helps prevent contamination of the detector and ensures consistent analytical results.

Typical Users

Replacement XRF windows are commonly purchased by operators working in:

• Scrap metal recycling facilities
• PMI inspection companies
• Manufacturing QA/QC teams
• Environmental testing firms
• Precious metals buyers and refiners

Any operation performing regular handheld XRF testing should keep spare measurement windows available to minimize instrument downtime.

Compatible Instrument

This replacement window is designed for use with the SciAps X-5 Handheld XRF Analyzer.

If you are unsure which measurement window is compatible with your analyzer, contact Alloy Geek before ordering.

What’s Included

• Replacement Kapton measurement window(s) for the SciAps X-5 handheld XRF analyzer


Why Keep Spare XRF Windows

Measurement windows are one of the most common consumable parts in handheld XRF analyzers used for alloy identification, PMI inspection, and precious metals testing. Keeping replacement windows available allows operators to quickly restore instrument performance without interrupting operations.

Spare windows are especially useful for environments where samples may contain:

• sharp metal edges
• powders or soils
• abrasive materials
• oily or contaminated surfaces

Accessories Often Purchased Together

Customers purchasing replacement windows often also purchase:

• SciAps X-5 replacement batteries
• SciAps X-5 battery chargers
• Benchtop test stands
• Sample cups and films

Frequently Asked Questions

What does the XRF measurement window do?

The measurement window protects the internal detector while allowing X-rays from the sample to reach the sensor. It acts as a protective barrier between the instrument and the material being analyzed.

How often should an XRF window be replaced?

Replacement frequency depends on usage and sample type. Instruments used frequently on rough or contaminated surfaces may require window replacement more often.

Can a damaged XRF window affect analysis results?

Yes. A damaged or contaminated window can interfere with X-ray transmission and may affect measurement accuracy. Replacing the window helps ensure consistent analytical performance.

Can I replace the measurement window myself?

Yes, many operators replace measurement windows as part of routine instrument maintenance. If you are unsure how to perform the replacement, consult your instrument manual or contact Alloy Geek for guidance.

If you’re unsure which window is appropriate for your application, contact Alloy Geek for guidance.
