Description

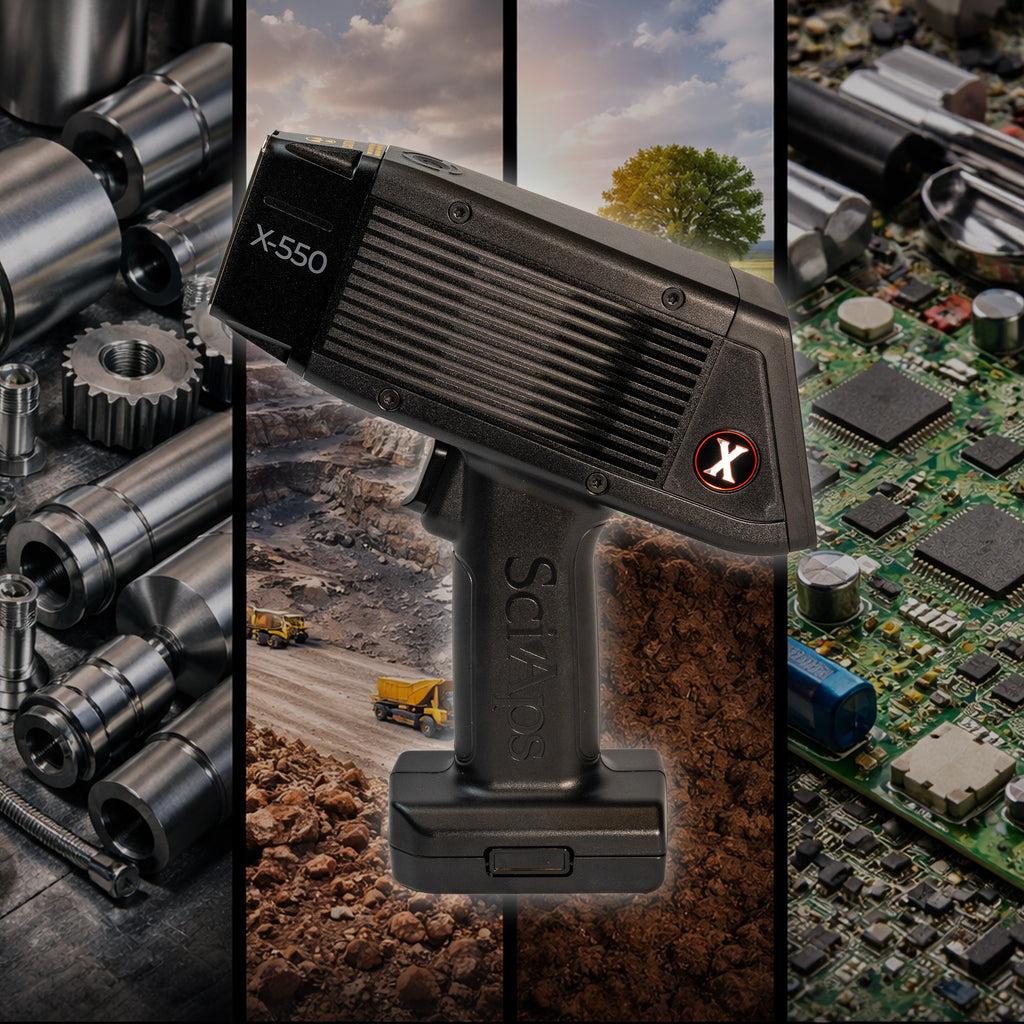

The SciAps X-550 is a premium handheld XRF analyzer designed for high-speed, high-precision elemental analysis across a wide range of industrial and field applications.
Powered by one of the most advanced X-ray tube designs in the industry, the X-550 delivers exceptional performance on both heavy and light elements, making it one of the fastest and most capable handheld XRF analyzers available today.
This is a quote-based configuration page. The X-550 platform supports multiple applications, and requesting a quote ensures the analyzer is configured correctly for your materials, workflow, and performance requirements.
Want to compare other handheld XRF analyzers? Browse our complete collection of New Handheld XRF Analyzers here.
Applications for the SciAps X-550
Scrap Metal Recycling
The X-550 is built for high-throughput scrap environments where speed and accuracy are critical.
- Sort aluminum alloys in as little as 1–2 seconds
- Identify similar grades based on Mg, Si, and other light elements
- Detect tramp and residual elements in steels and non-ferrous alloys
NDT / PMI (Positive Material Identification)
Ideal for inspection, fabrication, and QA/QC workflows requiring rapid alloy verification.
- Identify alloys in seconds, including stainless and high-temp materials
- Optimized for sulfidic corrosion (low Si detection)
- Designed for field use, weld inspection, and hard-to-reach areas
RoHS Compliance Testing
The X-550 supports fast screening of regulated elements in consumer products and electronics.
- Detect Pb, Cd, Hg, Cr, Br, and Cl for halogen-free compliance
- Rapid screening for QA/QC and regulatory workflows
Mining & Exploration
The X-550 provides industry-leading performance for geochemical analysis.
- Fast analysis of Mg, Al, Si, P, S, Ca, and K in ores and soils
- Ideal for exploration, ore grade control, and field decision-making
- Widely used by mining companies and laboratory servic
Soil & Environmental Testing
The X-550 supports environmental screening and regulatory applications.
- Detect RCRA metals and EPA priority pollutant elements
- Suitable for in-field soil analysis and compliance workflows
Precious Metals Analysis
The X-550 can be configured for precious metals testing and alloy verification.
- Rapid identification of gold, silver, and alloy compositions
- Non-destructive analysis for buyers, refiners, and QA workflows
Why Choose the SciAps X-550?
- Industry-leading speed on light elements (Mg, Al, Si, P, S)
- High-performance Silicon Drift Detector (SDD)
- Fast results for both alloy and non-alloy applications
- Rugged, lightweight design for field use
- Built-in connectivity (WiFi, Bluetooth, USB) for reporting and data transfer
SciAps Handheld XRF Analyzer Comparison
| Model | Positioning | X-Ray Tube | Detector | Key Strength | Typical Use Case |
|---|---|---|---|---|---|
| SciAps X-5 | Entry Level | 4W, 40kV or 50kV | 7 mm² SDD | Proven, simple alloy ID platform | Basic alloy sorting, Precious Metals base |
| SciAps X-50 | Entry Level | 4W, 40kV or 50kV | 7 mm² SDD | Affordable modern platform with fast heavy element analysis | Scrap sorting, PMI, precious metals, mining |
| SciAps X-200 | Entry Level + Value | 5W, up to 50kV | 20 mm² SDD | Budget-friendly with improved performance vs X-50 | Scrap, PMI, cost-sensitive buyers |
| SciAps X-505 | Premium Affordable | 5W, up to 50kV | 20 mm² SDD | Strong balance of speed, portability, and cost | Scrap yards, PMI, environmental soil testing, RoHS compliance |
| SciAps X-550 | Premium | 5W, up to 50kV | 20 mm² SDD | 3x faster light element analysis (Mg, Al, Si, P, S) | Alloy Sorting including fast Al sorting, PMI, Mining, Soil, QA/QC, PMI, RoHS |
| SciAps X-555 | Premium for REE & low concentrations | 5W, up to 55kV | 50 mm² SDD | Best sensitivity and detection limits, especially for light and trace elements | Mining, REE Mining, Soils, Regulatory RoHs CPSIA |
Get Your SciAps X-550 Custom Quote
Tell us what materials you're analyzing and we’ll configure the right X-550 for your application.
Most quotes are delivered within 1 business day.
→ Contact an Alloy Geek Expert
Looking for Parts & Accessories?
→ Shop SciAps X-550 Parts & Accessories
Downloads
This item is made to order and lead time is confirmed at time of order.
