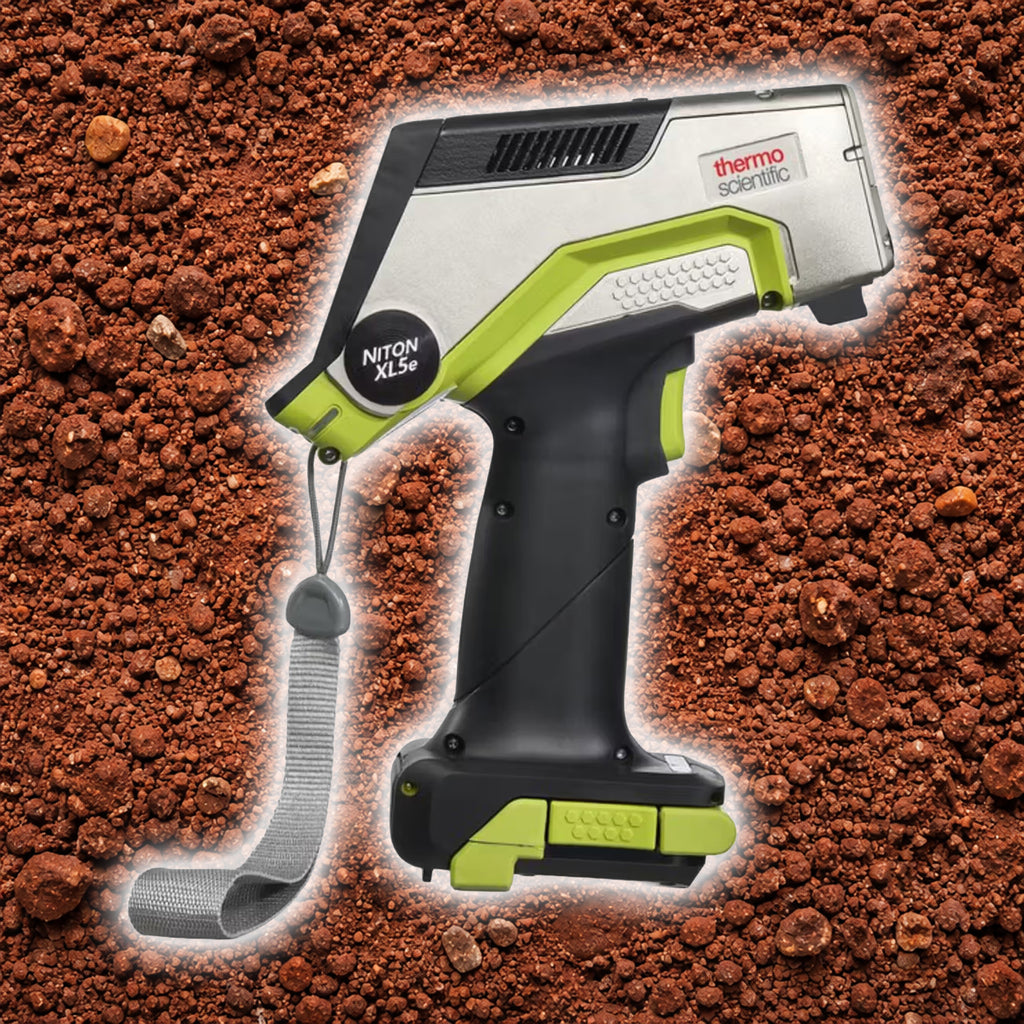

New Niton XL5e Handheld XRF Analyzer – Soil Contamination Screening

The Niton XL5e Handheld XRF Analyzer is a versatile option for soil contamination screening and field-based elemental analysis. It offers a strong balance of speed, detection capability, and cost for environmental professionals who need reliable on-site soil data without stepping up to the cost of a top tier system.

Built around a 5W X-ray tube operating up to 50 kV and a high-resolution silicon drift detector, the XL5e allows teams to screen soil for heavy metals directly in the field. It is commonly used to identify areas of concern, guide sampling strategies, and reduce unnecessary laboratory submissions during environmental investigations.

The XL5e is well suited for environmental site assessments, remediation planning, and general soil screening where immediate elemental information helps teams make better decisions on site. It includes an integrated cooling fan designed to support extended use in high-temperature field conditions.

Applications

• Soil contamination screening
• Environmental site assessments and due diligence
• Identification of heavy-metal-impacted areas
• Support for remediation planning and sampling decisions
• On-site decision support prior to confirmatory laboratory testing

Key Benefits for Soil Screening

• Mid-tier handheld XRF balancing performance and affordability
• 5 W X-ray tube operating up to 50 kV for efficient excitation of heavy elements
• Field-based, non-destructive soil screening with fast results
• Suitable for detecting common soil contaminants such as lead, arsenic, chromium, cadmium, and related metals
• Rugged, portable design for environmental and industrial field use
• Supports field-based soil screening when used with appropriate QA/QC procedures

Recommended Additional Accessories

• Soil sample cups and XRF film
• Portable or desktop test stand for improved repeatability
• Spare batteries and charging accessories
• Spare XRF measurement windows
• Field backpack

Because soil testing needs vary by site and project, accessories are often selected based on how the analyzer will be used in the field.

Included Analytical Modes

This configuration is focused on soil contamination screening.

Included Mode

• Soils Mode

Optional Modes (Available as Add-Ons)

• General Metals
• Mining Mode
• Precious Metals
• User Mode (custom calibration)

Soils Mode – Typical Elements

Typical elements screened in Soils mode may include:

Ag, As, Ba, Ca, Cd, Co, Cr, Cu, Fe, K, Mn, Ni, Pb, S, Sb, Sc, Se, Sn, Sr, Te, Ti, V, Zn

Actual detection capability depends on soil matrix, preparation, and measurement time.

Technical Specifications

Specification	Details
Weight	~2.8 lb (1.3 kg) with battery
X-Ray Source	Ag anode X-ray tube, 6–50 kV, up to 5 W
Detector	Silicon drift detector (SDD)
Analytical Range	Mg–U (see mode for element specifics)
Spot Size	8 mm
Display	Color touchscreen
Data Transfer	Wi-Fi, USB-C, Bluetooth
Power	Hot-swap rechargeable lithium-ion batteries
Environmental Rating	IP54 (dust & splash resistant)
Operating Temp	Field-rated for environmental use
Compliance	CE, RoHS, FCC

What’s Included

• Niton XL5e Handheld XRF Analyzer
• Soils Mode calibration
• x2 Rechargeable Li-Ion batteries
• Battery charger
• Protective carry case
• Niton software and PC connectivity tools
• 1 Year Manufacturer warranty
• Virtual Alloy Geek training and installation

Frequently Asked Questions

Can the Niton XL5e be used for soil contamination screening?

Yes. The XL5e is commonly used for field-based screening of soil to detect heavy metals and guide environmental sampling decisions.

Is the XL5e suitable for RCRA-related soil screening?

The XL5e can be used to screen for several metals commonly evaluated during environmental investigations. As with all handheld XRF systems, results are typically used for screening and decision support rather than regulatory reporting.

Looking for the Right Handheld XRF?

The Niton XL5e delivers an outstanding balance of speed, accuracy, and portability for modern soil testing. It balances budget with performance. It offers higher performance than the Niton XL2 Plus while remaining more cost-effective than the Niton XL5 Plus.
