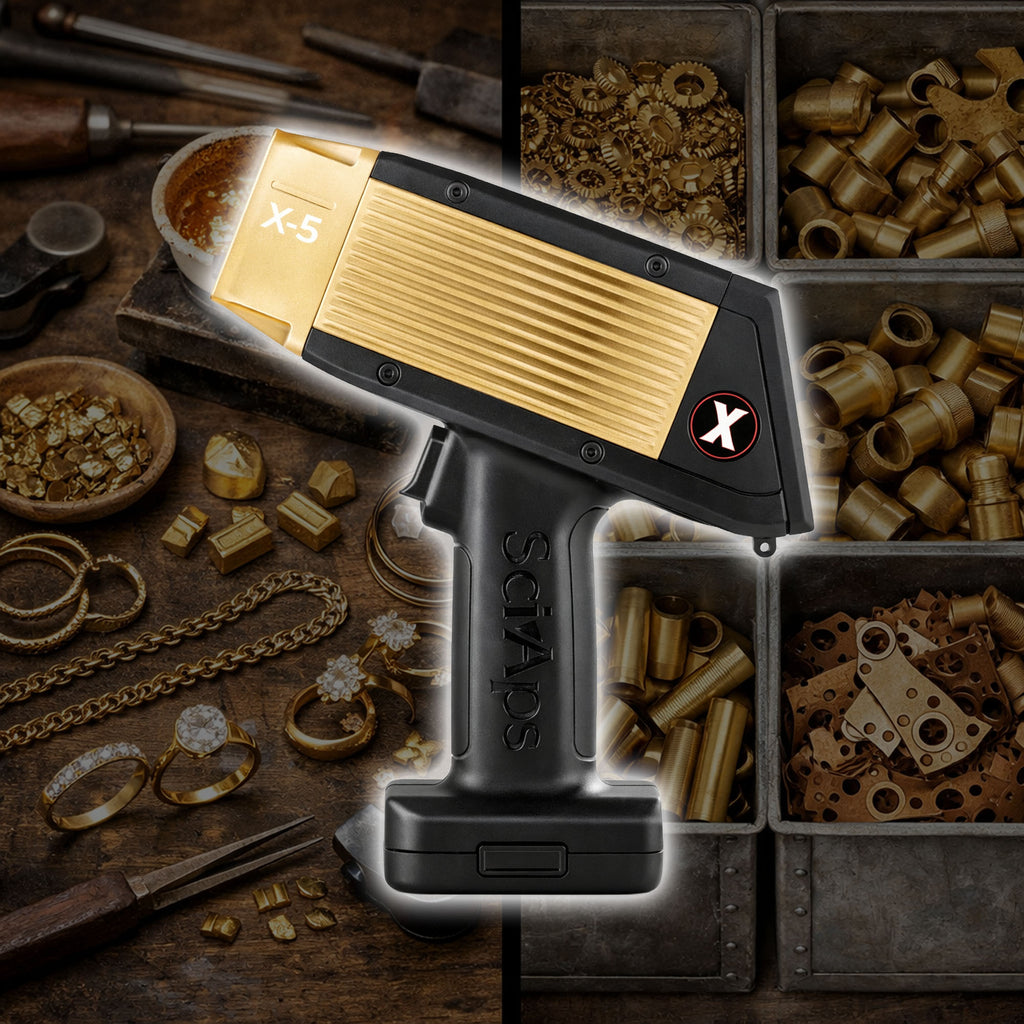

SciAps X-5 Handheld XRF Analyzer Custom Configured to Your Application

The SciAps X-5 Handheld XRF Analyzer is a lightweight, cost-effective instrument designed for fast elemental analysis of metals and alloys without the cost of a premium XRF system.

Part of the SciAps X-Series platform, the X-5 delivers reliable elemental analysis for precious metals testing, alloy identification, scrap metal sorting, and basic environmental screening.

Weighing under 3 lbs (≈1.35 kg), the X-5 is one of the lightest handheld XRF analyzers available and is built on an Android operating system with integrated Wi-Fi, Bluetooth, GPS, and USB connectivity for easy data management and reporting.

This analyzer is an excellent choice for customers who primarily analyze transition metals and heavy elements and do not require measurement of light elements such as magnesium, aluminum, silicon, sulfur, or phosphorus.

The X-5 is typically selected as an entry-level handheld XRF analyzer for alloy identification and precious metals analysis where light-element measurement is not required.

If you are still comparing models or exploring other options, you can browse our full selection of new handheld XRF analyzers available from Alloy Geek.

Highlights

• 40 kV Rh anode X-ray tube configuration optimized for alloy identification and precious metals analysis.
• 7 mm² silicon drift detector (SDD) for reliable elemental analysis of transition and heavy metals.
• Approximately 2.98 lb (1.35 kg) with battery.
• 4 W X-ray tube operating up to 40 kV with Rh or W anode excitation.
• Hot-swap capable Li-ion battery; charge in-device or with external charger; AC power supported.
• Wi-Fi, Bluetooth, USB connectivity with optional GPS capability and cloud data integration.
• Compact, lightweight handheld design built on the SciAps Android operating platform.

What you’re buying from Alloy Geek

This is the SciAps X-5 handheld XRF analyzer configured for your use case, with the correct software application(s) and accessory plan to support reliable, repeatable analysis.

Typical deliverables (configured per quote):

• X-5 analyzer configured for your application(s)
• Battery and charging solution (in-device charging and/or external charger)
• Essential consumables (e.g., window films) and handling accessories as needed
• Optional add-ons: test stand, Field Backpack, sample cups/film for powders or soils, etc.

Request a Quote to confirm configuration, lead time, shipping, and any required compliance documentation for your organization.

Applications for the X-5

The SciAps X-5 Handheld XRF Analyzer is selected by customers who need fast, non-destructive elemental analysis in environments where sending samples to a laboratory is too slow, too expensive, or impractical. Below are the most common buying use cases and how the X-5 is typically deployed in each.

Scrap Metal & Alloy Sorting

Buyers in scrap yards and recycling operations use the X-5 to quickly identify common alloy families and separate materials for proper processing and pricing. Typical use cases include identifying stainless steels, nickel alloys, copper alloys, and mixed non-ferrous materials directly in the yard or on the processing floor.

The X-5 is valued in this environment for its portability, speed, and ability to provide immediate elemental chemistry results without interrupting workflow.

Precious Metals Analysis

Buyers working with jewelry, bullion, catalysts, or other precious-bearing materials use the X-5 to verify elemental composition without damaging the item. The instrument is commonly used to screen gold, silver, platinum, and palladium in jewelry, coins, and recycled precious materials.

Handheld XRF allows precious metal buyers to quickly confirm composition, identify plating, and improve confidence when evaluating high-value materials.

Basic PMI (Positive Material Identification)

Machine shops, fabrication facilities, and maintenance teams often deploy the X-5 for basic PMI applications where confirmation of alloy chemistry is required. The analyzer allows users to quickly verify elemental composition before fabrication, welding, or installation.

For many operations, handheld XRF reduces reliance on laboratory analysis while still providing immediate elemental confirmation on-site.

Environmental & Soil Screening

Environmental consultants and site managers may use the X-5 for preliminary screening of soils and environmental samples for heavy metals such as lead (Pb), arsenic (As), chromium (Cr), copper (Cu), and zinc (Zn). Handheld XRF provides immediate feedback during site assessments and remediation planning.

For fine materials and soils, sample cups and XRF film are typically used to improve consistency and protect the analyzer window.

RoHS / Compliance Screening

Manufacturers and quality teams use handheld XRF instruments like the X-5 to screen products and components for regulated elements including lead (Pb), cadmium (Cd), mercury (Hg), and chromium (Cr). Non-destructive screening allows materials to be verified before production or shipment.

One Platform, Multiple Applications

Many customers deploy the SciAps X-5 across more than one workflow, such as alloy sorting combined with precious metals analysis or basic PMI inspection. This page is intentionally quote-based so the system can be configured correctly for your primary application, with the appropriate software modes and accessories to support how you actually work.

What’s Included in a Quoted Configuration

When requesting a quote through Alloy Geek, the configuration is tailored to your operation and may include:

• SciAps X-5 handheld XRF analyzer configured for your application(s)
• Appropriate software modes and element suites
• Battery and battery chargers
• Recommended accessories (sample cups, films, test stands, carry cases, etc.)
• Lead time, shipping, and required compliance documentation
• Virtual installation training

Performance & Technical Overview

• X-ray tube: 4 W tube, up to 40 kV
• Detector: Silicon drift detector (SDD)
• Weight: ~2.98 lb with battery
• Power: Rechargeable Li-ion battery with hot-swap capability
• Connectivity: Wi-Fi, Bluetooth, USB; GPS capable
• Platform: Android operating system with integrated data management
• Design: Compact, lightweight handheld form factor

Final configuration details are confirmed during the quote process.

Accessories & Consumables

Consistent handheld XRF performance depends on having the right accessories available. Many operations plan for:

• Spare batteries and battery chargers
• Measurement XRF window replacement film
• Sample cups and films for soils and powders
• Test stands for repeatability, long test times, and small samples
• Carry cases or backpacks for field use

Compatible options are available in the SciAps X-5 Parts & Accessories Collection, or can be included as part of the quote.

Request a Quote

To receive an accurate quote, include:

• Primary application(s)
• Typical materials analyzed
• Testing environment (yard, field, plant, lab)
• Any critical elements or thresholds
• Desired timeline and shipping destination

Downloads

• SciAps X-5 Alloy Spec Sheet
• SciAps X-5 Precious Metals Spec Sheet
• SciAps X-5 Limits of Detection (LODs)
• SciAps X-5 Manual
